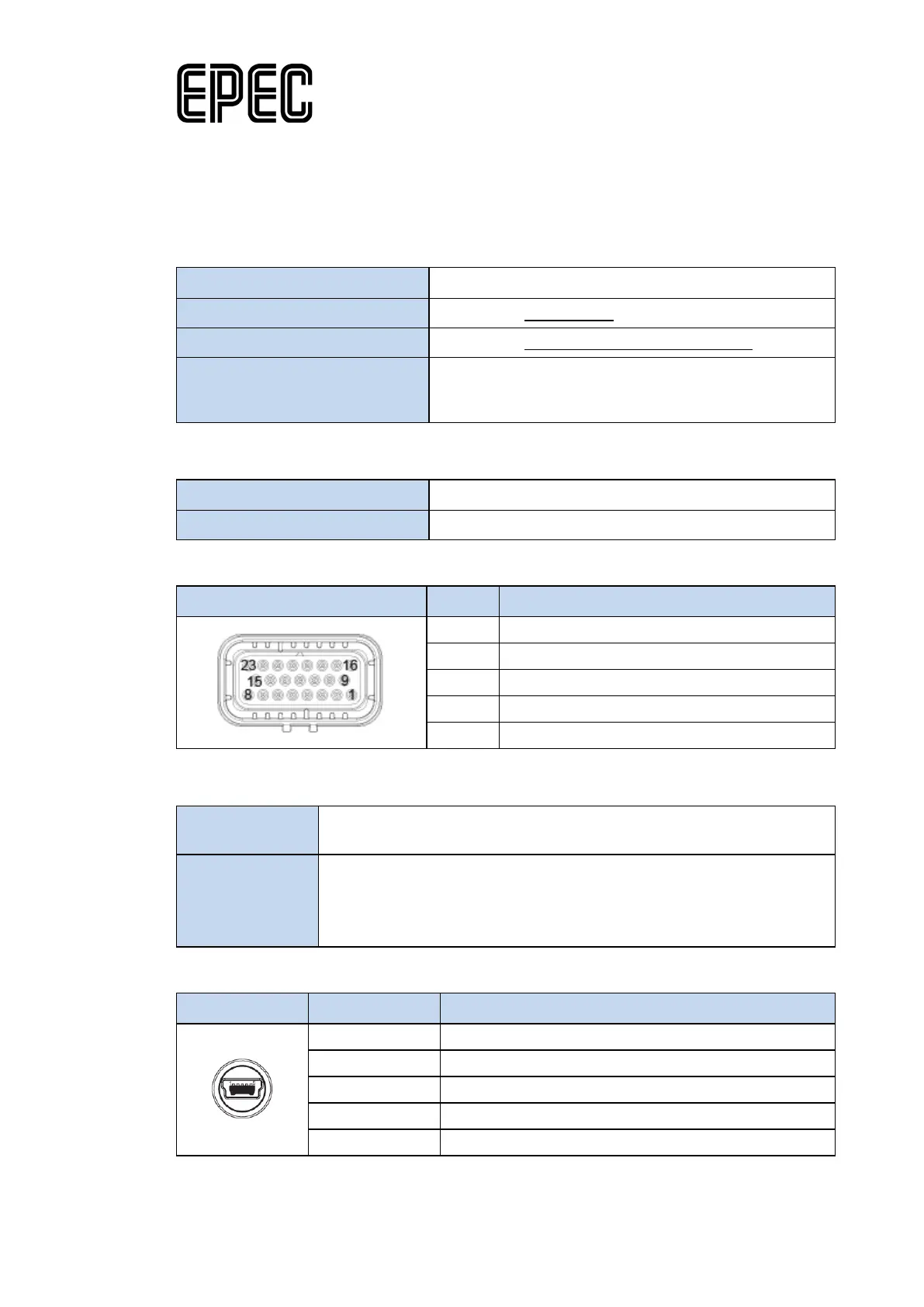

12.3 USB
USB ports provide a flexible way to attach peripheral devices. However, it should be noted that
the core of the unit is based on embedded processor architecture. Therefore, it is strongly
recommended to consult Epec to assess the compatibility with the product when selecting a
new USB device.
Supported USB amount:
2
Cabling instructions:
See section USB Cabling
Ordering USB cable:
See section Accessories and Ordering Codes
Related programming libraries:
6000UsbDrive.library
(For more information, see Epec Programming and
Libraries manual)
12.3.1 AMP23 USB
Bus speed maximum:
12 Mbps (full speed USB)
Features:
Only for application updating
X1, AMP23 male connector:
Picture (AMP23 male, front)
Pin
Signal
1 D+
2 D-
9 +5 V (max 500 mA)
10 GND
15 USB_SHIELD
12.3.2 M12 miniB-USB
Bus speed
maximum:
480 Mbps (high speed USB)
Features:
• Recommended for updating CODESYS application
• Recommended for updating firmware
• Only host mode supported
X2, M12 connector (miniB-USB):
Pin
Signal
1 +5 V (max 500 mA)
2 D-
3 D+
4 ID
5 GND
