15.4.6 USB Cabling
• It is recommended to use full speed rated USB cable.
•
Full speed cable consists of twisted signal pairs, VBUS, GND and an overall
shield.
• When using an appropriate cable, the operation reliability of the connected
device is assured.
• The maximum length (2 m) of the used cable is determined of transit time delay,
attenuation, communication speed and the power consumption of the connected device.
• In practise, it is not recommended to use longer cable than 1 m.
•
The previous things should be considered when connecting the device
directly to the USB connection.

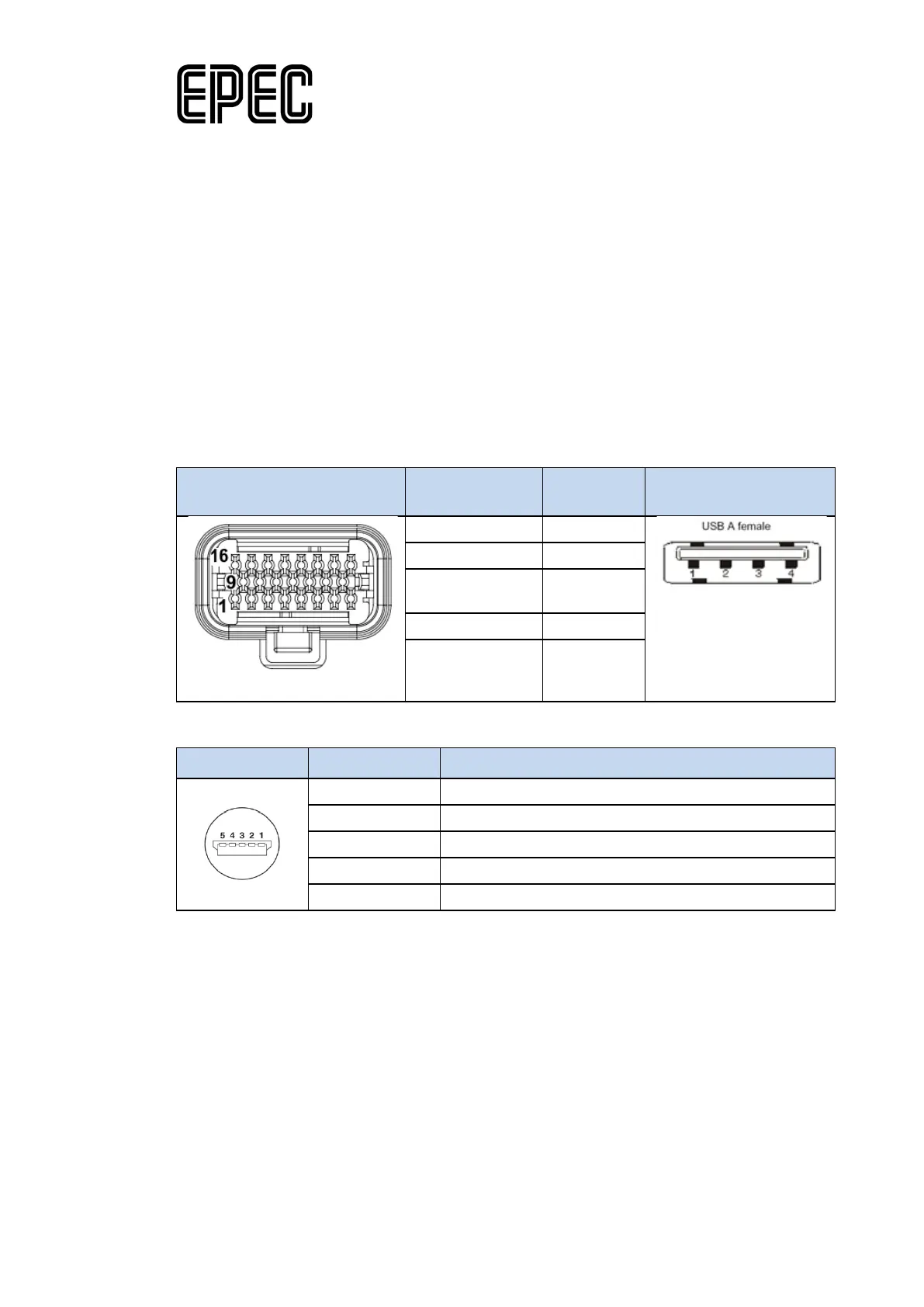

AMP23 USB cabling connection with 6107 display unit:
AMP23 female (front)
AMP23 pin
USB A
female pin
USB A female (front)
1 (D+) 3 (D+)
2 (D-) 2 (D-)
9 (+ 5 V) (max
500 mA)
1 (+ 5 V)
10 (GND)
4 (GND)
15
(USB_SHIELD
)
Connecto
r chassis
M12 miniB-USB
Pin
Signal
1 +5V (max 500 mA)
2 D-
3 D+
4 ID
5 GND
