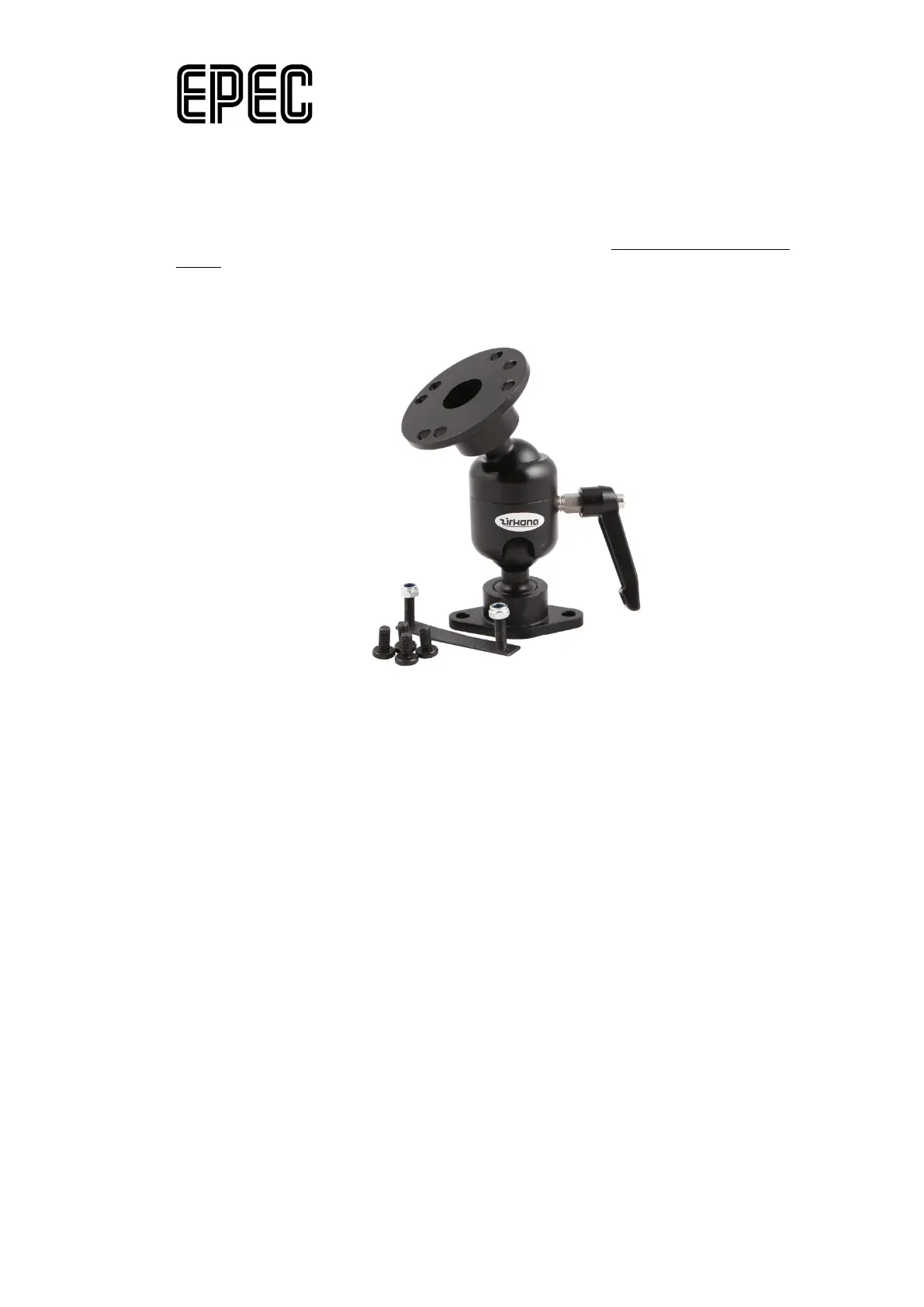

15.2.1 Pedestal Mounting
Pedestal is mounted on the back of the display by using four M5 screws. The pedestal and the
display are then mounted into a conductive metal base, which must have a galvanic connection
to machine frame. The pedestal is mounted using two M4 screws or by using the mounting rail
included. See the mounting pedestal's ordering code in section
Accessories and Ordering
Codes.
The mounting pedestal has adjusting lever on the side that can be operated without tools. By
loosening and tightening this lever, the display can be easily adjusted for the best possible
viewing angle. For more information, refer to mounting pedestal's data sheet (MAN000578).
