12.4 Ethernet
Firewall can be activated for Ethernet, for more information refer to Epec
Programming and Libraries manual.
Supported Ethernet amount:
max 2
Bus speed:
Maximum 10/100 Mbps
Cabling instructions:
See section Ethernet Cabling
Ordering Ethernet cables:
See section Accessories and Ordering Codes

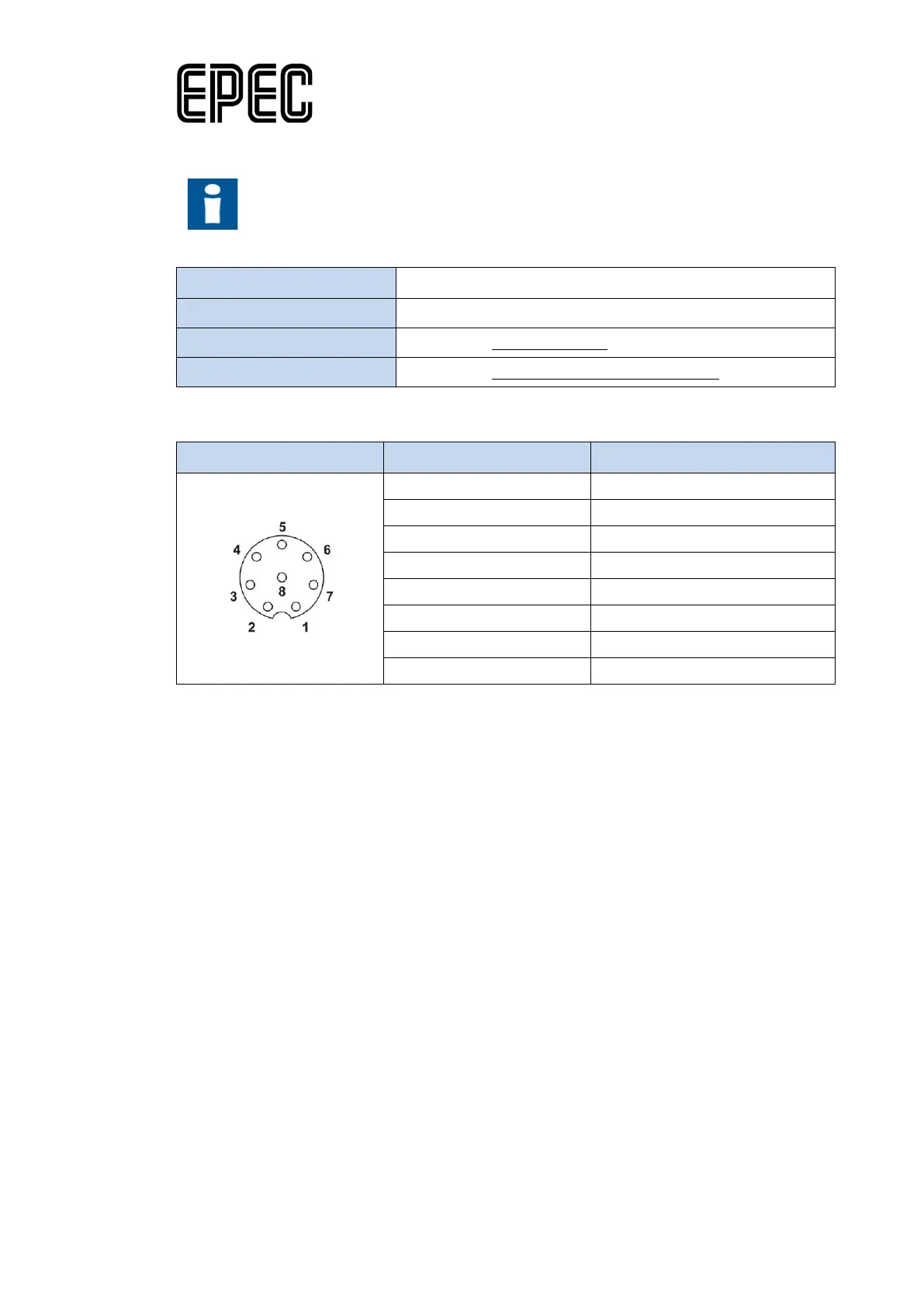

X3, M12 connector (8 pin FEM, ethernet):
Pin
Signal
1 RD2+
2 TD2+
3 TD2-
4 RD1-
5 TD1+
6 RD1+
7 RD2-
8 TD1-
