EPSON Stylus PHOTO 2100/2200 Revision B
DISASSEMBLY AND ASSEMBLY Disassembly 171

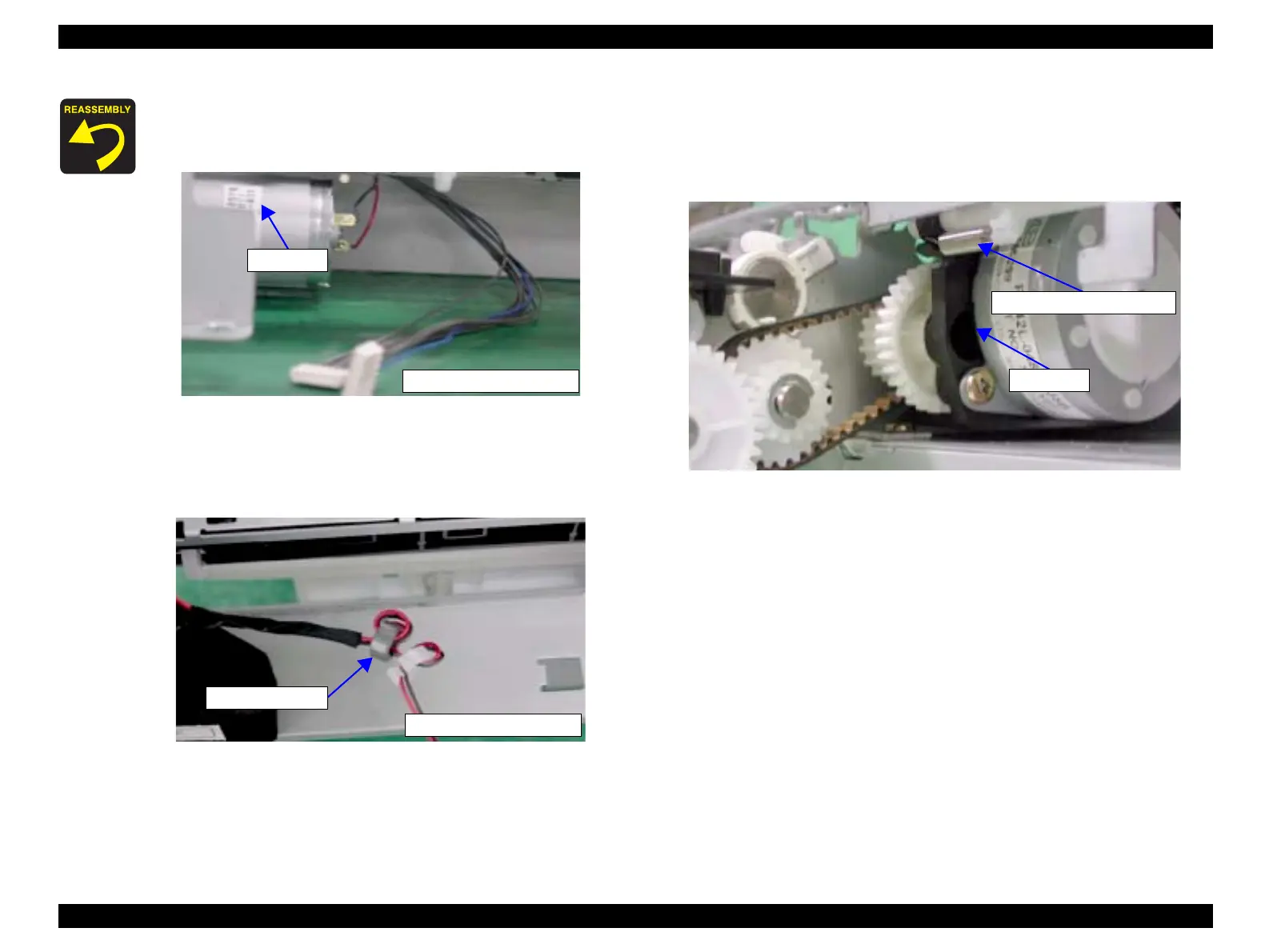

4.2.14 Removing the DE Unit and ASF/Pump Motor
1. Remove the PE Sensor Unit. (Refer to Steps 1 to 5 in 4.2.12.7.)
2. Using tweezers, remove the Extension Spring 0.618 that engages the DE Lock
Lever and DE Unit.
Figure 4-114. Removing the Extension Spring 0.618
" When reinstalling the PF Motor, face the label of the PF Motor
frontward as seen from the printer front.
Refer to Figure 4-112, "Installing the PF Motor".
Figure 4-112. Installing the PF Motor
"
When changing the PF Motor, make sure that the Ferrite Core is
fitted to the Cable securely.
Refer to Figure 4-113, "Checking the Ferrite Core".
Figure 4-113. Checking the Ferrite Core
Label
Bottom front right side
Ferrite Core
Bottom front right side
Extension Spring 0.618
DE Unit
To Next Page
