EPSON Stylus PHOTO 2100/2200 Revision B
DISASSEMBLY AND ASSEMBLY Disassembly 140
4.2.5 Removing the Paper Eject Unit
1. Remove the Printer Mechanism. (Refer to 4.2.1.4.)
2. Move the Release Lever to the far position to increase the platen gap to the
maximum.
3. Remove the two screws 6) C.B.S 3
×6 (9±1kgf.cm) that secure the Upper Housing
Mounting Plate.

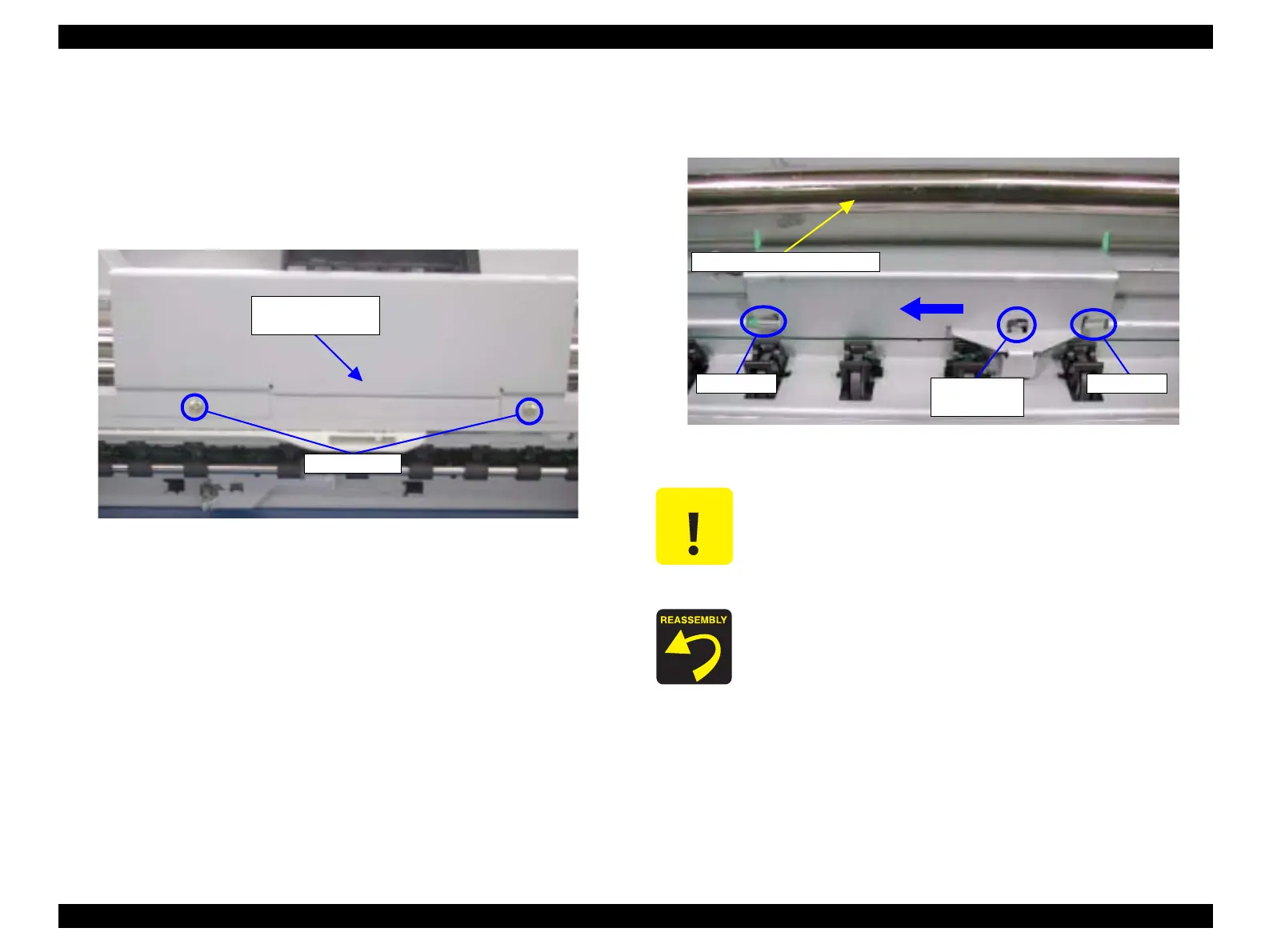

Figure 4-41. Screws That Secure the Upper Housing Mounting Plate
4. Slide the Upper Housing Mounting Plate to the right as viewed from the printer
front, and while turning the Upper Housing Mounting Plate toward the printer
front, remove it from the Front Frame.
Figure 4-42. Removing the Upper Housing Mounting Plate
Upper Housing
Mounting Plate
C.B.S 3×6
C A U T I O N
When removing the Upper Housing Mounting Plate, fully be
careful not to scratch the Carriage Guide Shaft B.
Refer to Figure 4-42, "Removing the Upper Housing Mounting
Plate".
" When reinstalling the Upper Housing Mounting Plate, insert the
Compression Spring 2.45 into the joggle in the center of the
Paper Eject Unit.
Refer to Figure 4-43, "Reinstalling the Upper Housing Mounting
Plate".
Hook and
cutout
Notch Notch
Carriage Guide Shaft B
