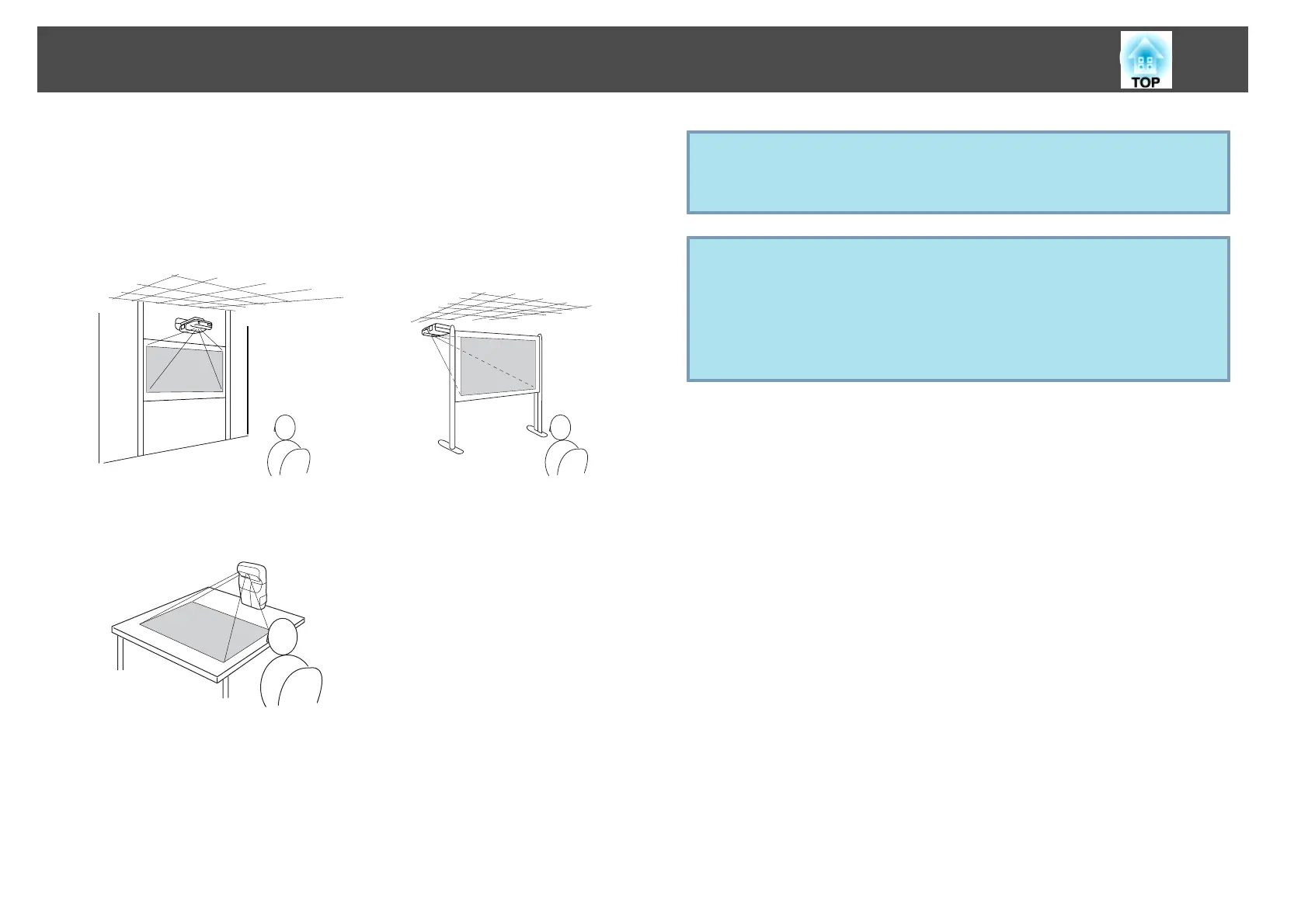

H Adjust the vertical slide
Adjust the vertical slide with the two M8 x 45 mm hexagon socket head cap bolts at the bottom of the
setting plate. Tightening the bolts raises the setting plate, and loosening them lowers it.
The projection screen is raised or lowered accordingly.
I Adjust the forward/backward slide
Loosen the four screws and adjust the slider of the setting plate.
After you finish making all of the adjustments in steps
E to I, tighten the screws.
J Turn off the display of the test pattern
Press the [Esc] button on the remote control or control panel to turn off the test pattern.
M8 x 45 mm
hexagon socket
head cap bolts (2)
Tighten all screws firmly. If the screws are not tightened firmly, the projector or setting plate
may fall and cause personal injury or property damage.
