EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 91 Revision A
 D: EB-FH52/992F

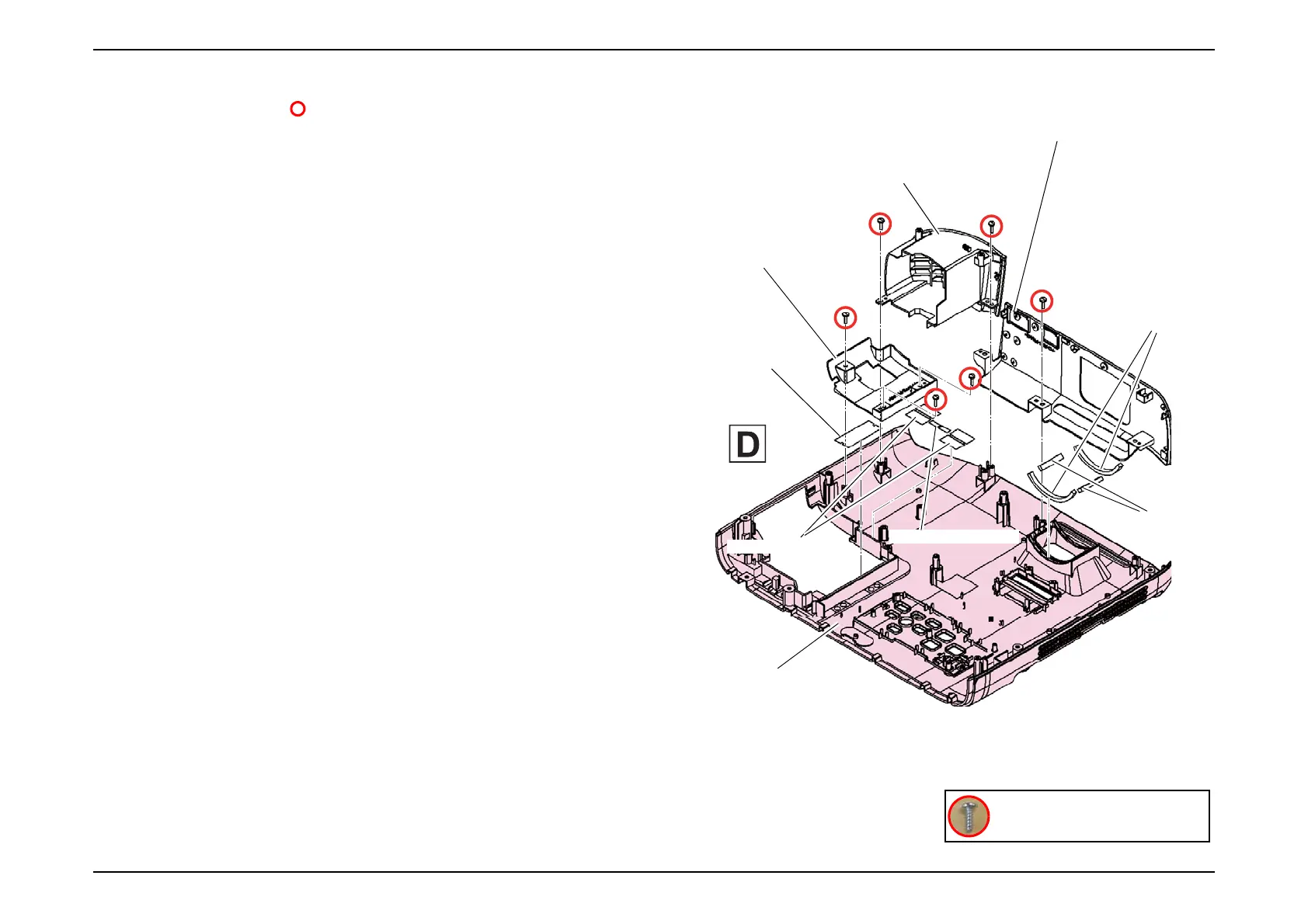

1. Remove the six screws ( ) and remove the "EX Case", the "Front Case"
and the "Upper Case Inner".
2. Remove the following parts from the "Upper Case".
 Upper Cushion A x2 pcs
 Upper Cushion B x2 pcs
 Sheet Upper A x2 pcs
 Sheet Upper H854
 Sheet Lid Lamp
EX Case
Front Case
Upper Cushion A
Upper Cushion B
Upper Case
Upper Case Inner
Sheet Lid Lamp
Sheet Upper A
Sheet Upper H854
C.B.P-TITE SCREW,2.5X8,F/ZN-3C
