EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 92 Revision A

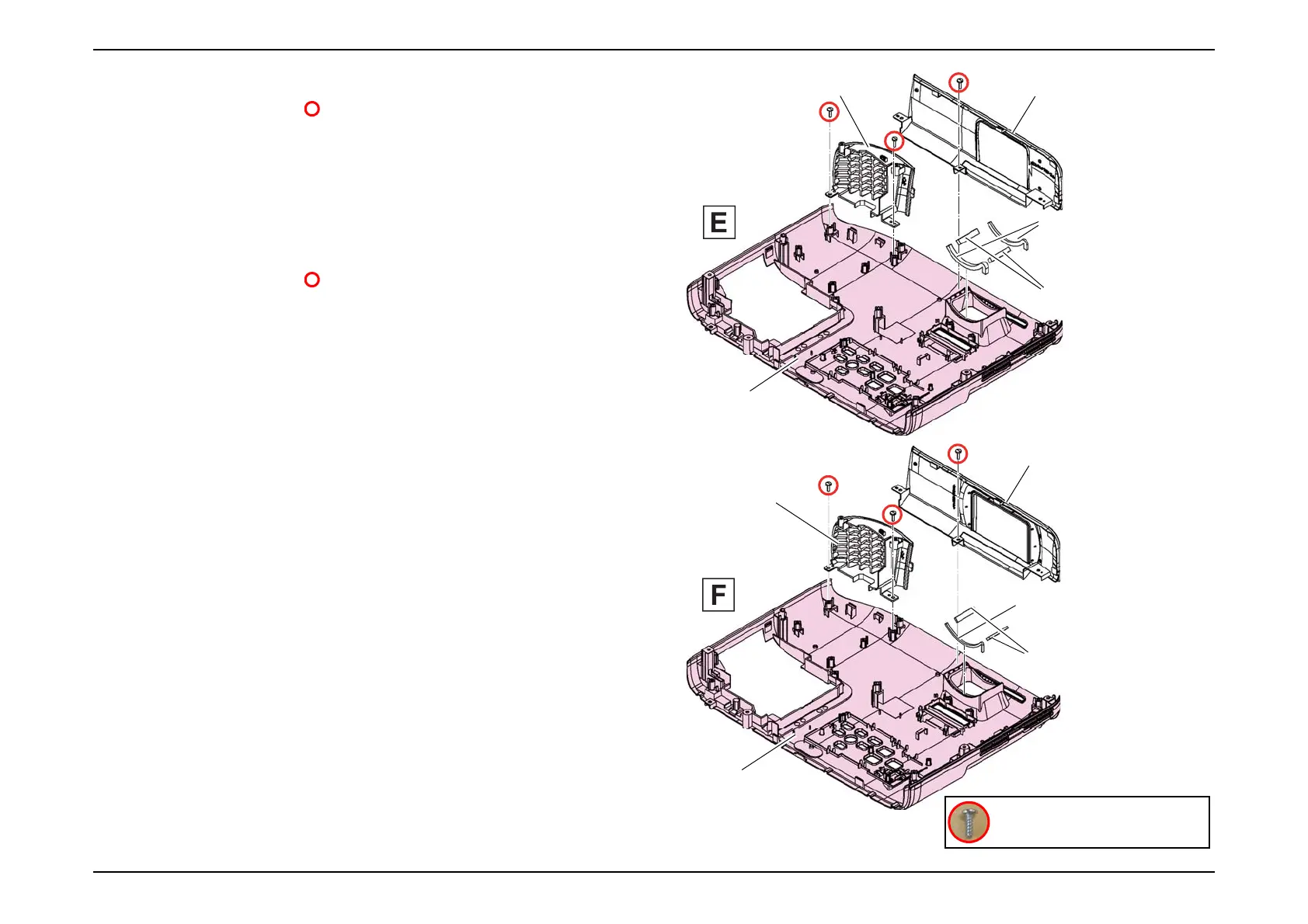

 E: EB-FH06/E20/X49/W49/W52/118, PL 119W, EH-TW740
1. Remove the three screws ( ) and remove the "EX Case" and the "Front
Case".
2. Remove the following parts from the "Upper Case".
 Upper Cushion A x2 pcs
 Upper Cushion B x2 pcs
 F: EH-TW750
1. Remove the three screws ( ) and remove the "EX Case" and the "Front
Case".
2. Remove the following parts from the "Upper Case".
 Upper Cushion A-H722
 Upper Cushion B x2 pcs
EX Case
EX Case
Upper Case
Front Case
Upper Cushion A
Upper Cushion B
Upper Cushion A-H722
Upper Cushion B
Upper Case
Front Case
C.B.P-TITE SCREW,2.5X8,F/ZN-3C
