Setting the Projector

129

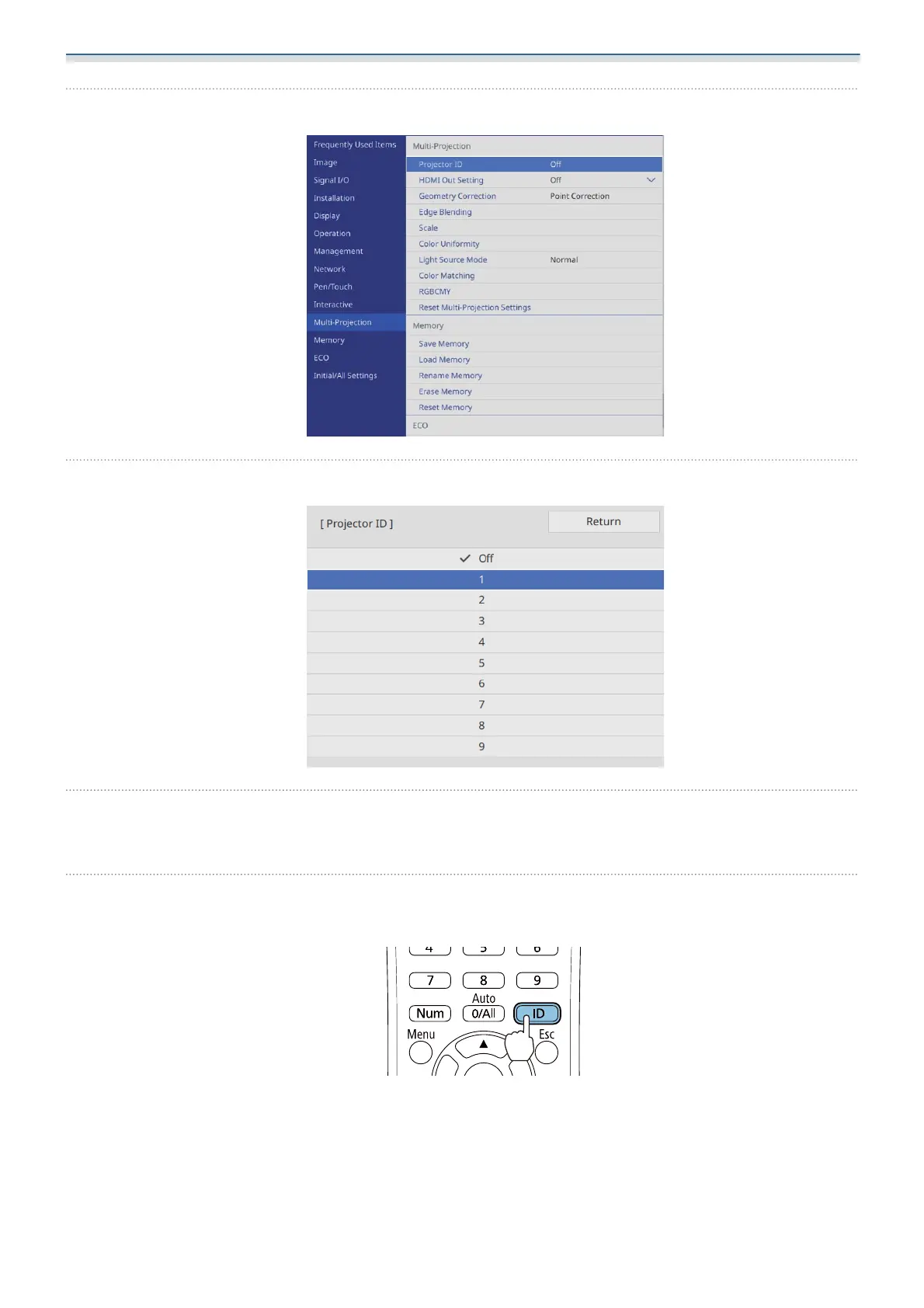

Select Projector ID from the Multi-Projection menu

Select the ID number for the projector

Press the [Esc] button to close the menu

Repeat steps 1 to 4 for the remaining projectors.

Point the remote control at the projector you want to operate, and then press the [ID]

button

The current ID number is displayed on the projection screen.
