Introduction
8

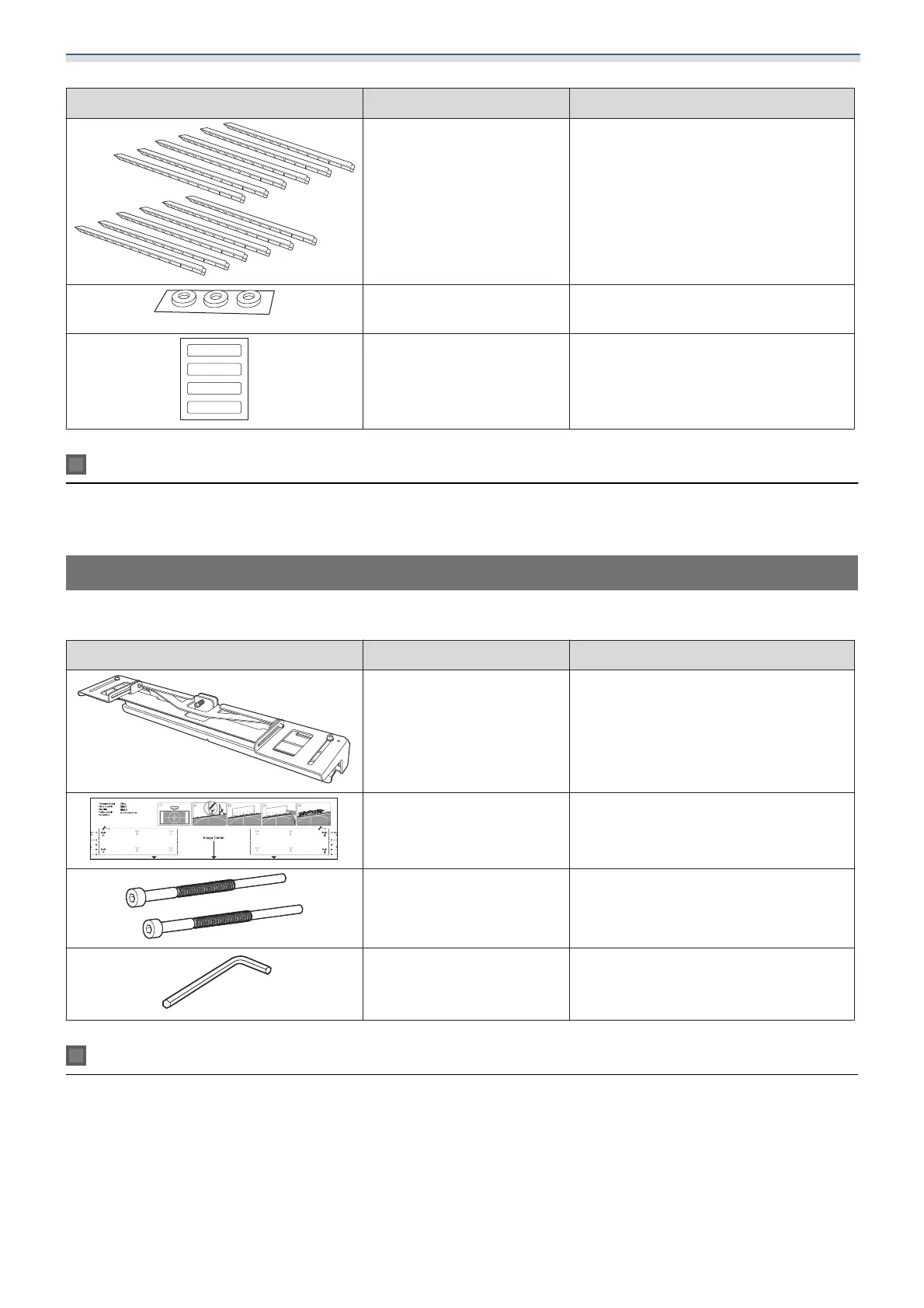

Part Name Application
Infrared deflectors
(approx. 28.5 cm) x12
Use these when there is a tray or frame
at the bottom of the projection surface.
This prevents malfunctions due to laser
reflections.
Spacers for screw holes x3 Attach them to the screw hole when
securing the Touch Unit with screws.
Label x4 Attach the label in the position of the
Touch Unit. These provide markers
when repositioning due to movement
that occurs during use.
Items to prepare in addition to items supplied with the product
When securing the Touch Unit with screws, prepare two commercially available M4 screws.
Touch Unit Bracket
Use this when attaching the Touch Unit to outside of the projection surface.
Part Name Application
Touch Unit Bracket -
Template sheet (for Touch
Unit Bracket)
Attach this to the wall before attaching
the Touch Unit Bracket, and use it to
drill necessary holes.
M4 x 25mm hexagon socket
head cap bolts (x2)
Secure the Touch Unit to the Touch
Unit Bracket.
Hexagon wrench (for M4) -
Items to prepare in addition to items supplied with the product
Use commercially available anchor bolts or screws to secure the Touch Unit Bracket to the wall.
M4 anchor bolts (x4)
3.8 mm diameter wood screws with a length of 45 mm or more (x4)
