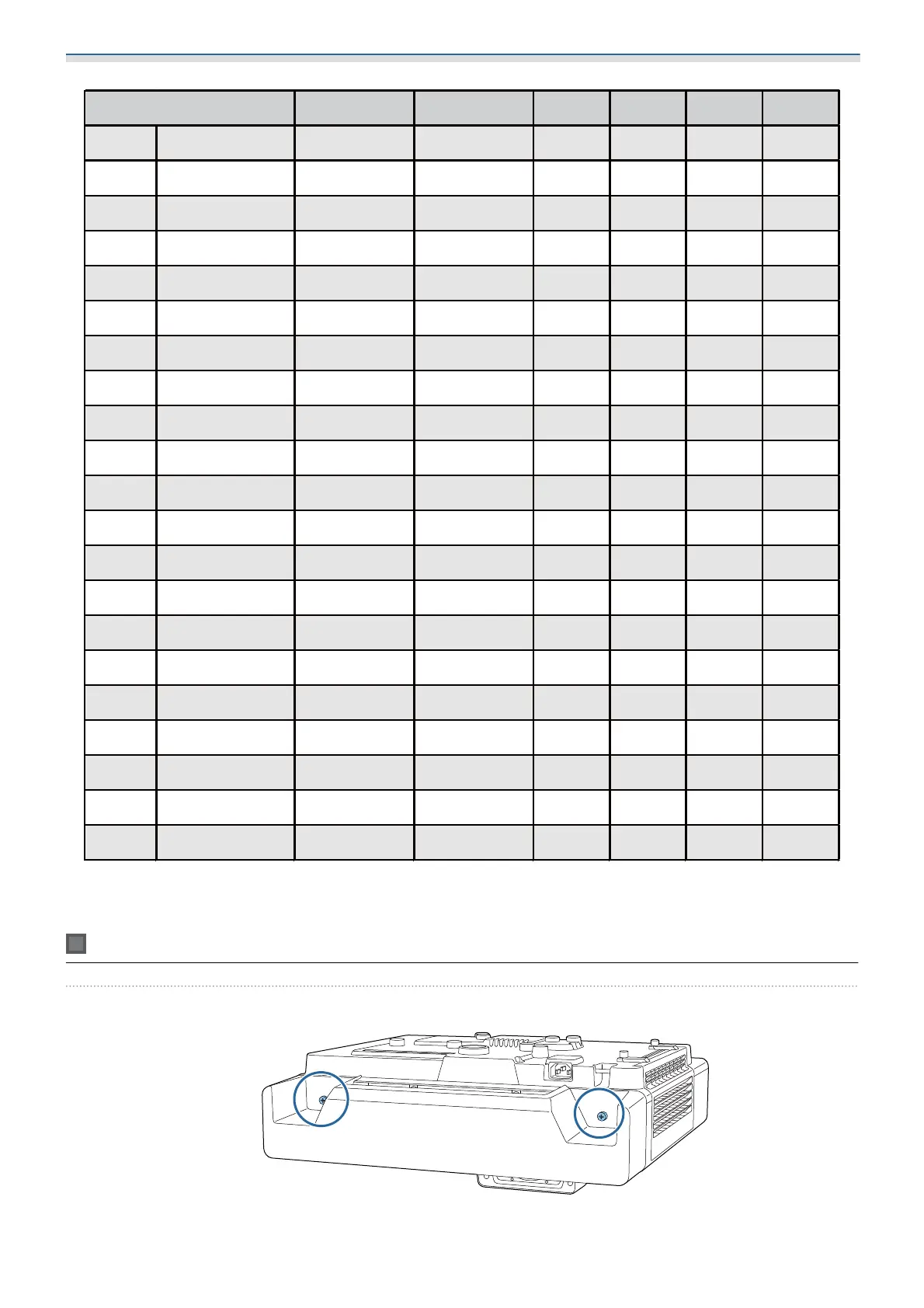

Installing the Wall mount
43
a b c1 d1 c2 d2
80" 1868 × 800 281 184 357 549 232 424
81" 1891 × 810 287 190 360 552 233 425
82" 1914 × 820 294 197 364 556 236 428
83" 1938 × 830 301 204 367 559 237 429
84" 1961 × 840 307 210 370 562 239 431
85" 1984 × 850 314 217 374 566 241 433
86" 2008 × 860 321 224 377 569 243 435
87" 2031 × 870 327 230 380 572 244 436
88" 2054 × 880 334 237 383 575 246 438
89" 2078 × 890 341 244 387 579 248 440
90" 2101 × 900 347 250 390 582 249 441
91" 2125 × 911 354 257 393 585 251 443
92" 2148 × 921 361 264 396 588 252 444
93" 2171 × 931 367 270 400 592 255 447
94" 2195 × 941 374 277 403 595 256 448
95" 2218 × 951 381 284 406 598 257 449
96" 2241 × 961 388 291 410 602 260 452
97" 2265 × 971 394 297 413 605 261 453
98" 2288 × 981 401 304 416 608 263 455
99" 2311 × 991 408 311 419 611 264 456
100" 2335 × 1001 414 317 423 615 267 459
S
Attaching the adjustment unit to the projector
a
Loosen the screws (x2) and remove the cable cover from the projector
