Installing the Wall mount
45

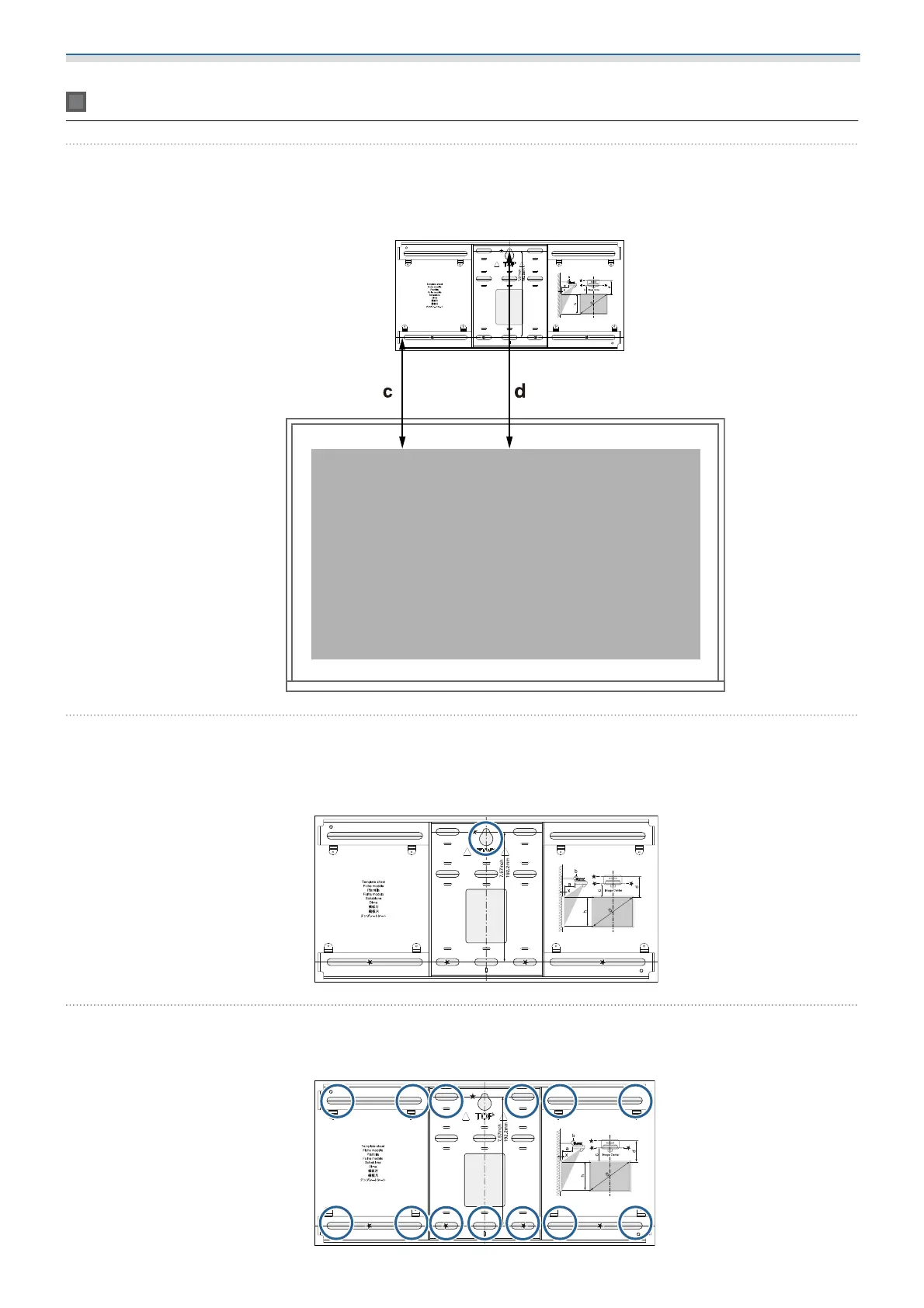

Install the wall plate on the wall
a
Attach the template sheet to the wall
Attach the template sheet according to the installation position that you confirmed using the
projection distance table ( p.31).
b
Drive a commercially available M10 screw into the position of the temporary screw hole
for the wall plate
Leave a gap of 6 mm or more between the wall and the screw head.
c
Determine the positions for the mounting holes for the wall plate
From the screw holes shown in the figure below, secure at least four points for optimum balance.
To Next Page
