Installing the Touch Unit

Touch Unit Specifications

Item Specification

Touch unit mass Approx. 0.6 kg

Operating temperature 0 to 40°C

Power (supplied from the projector) 5 VDC 0.65 A

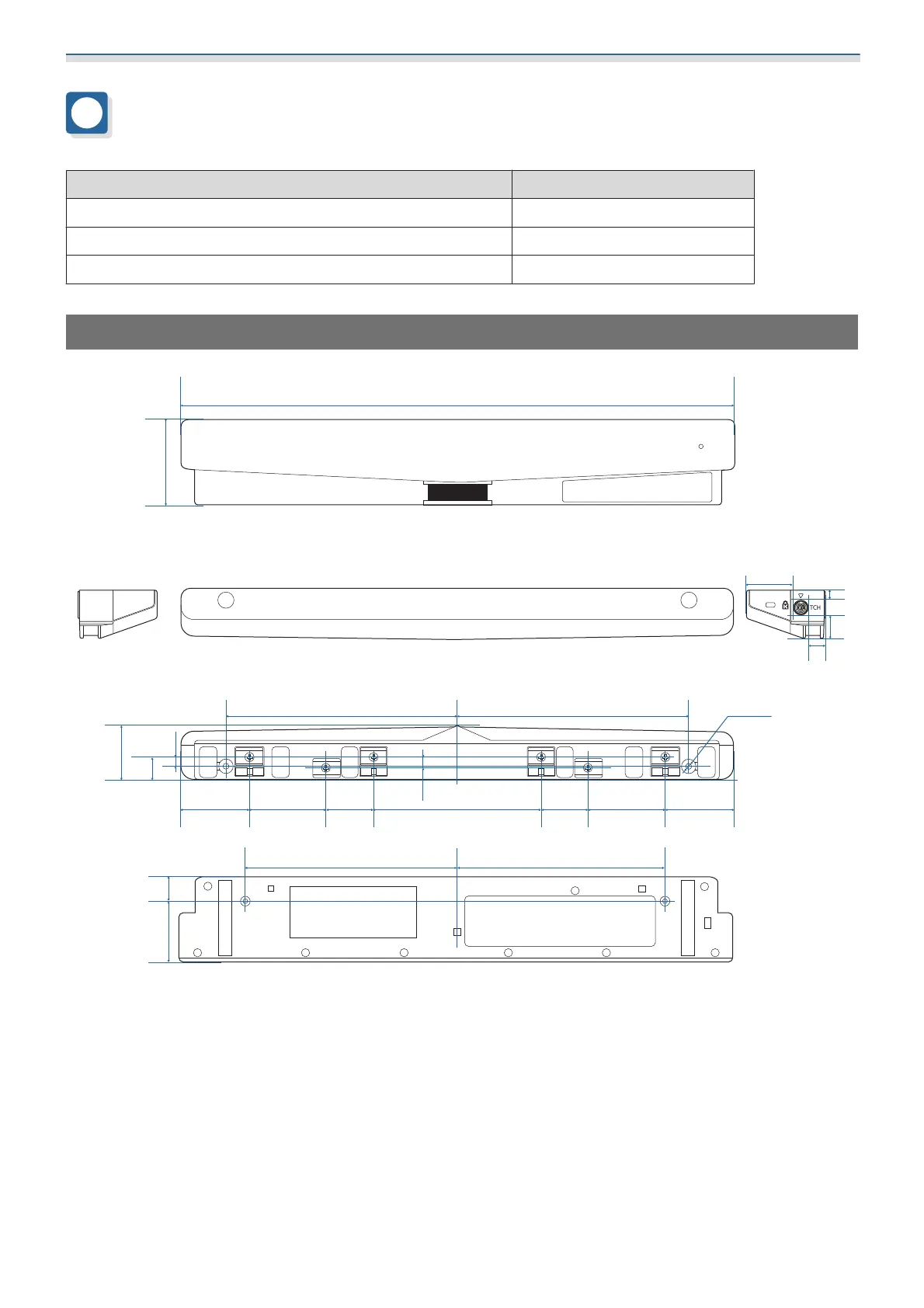

External dimensions

422

64.8

177

52 5236

128

160 160

36 59

177

8.3

9.3

16.2

39.6

19.145.4

38.2

2xM4
