Installing the Wall mount

Arc Correction

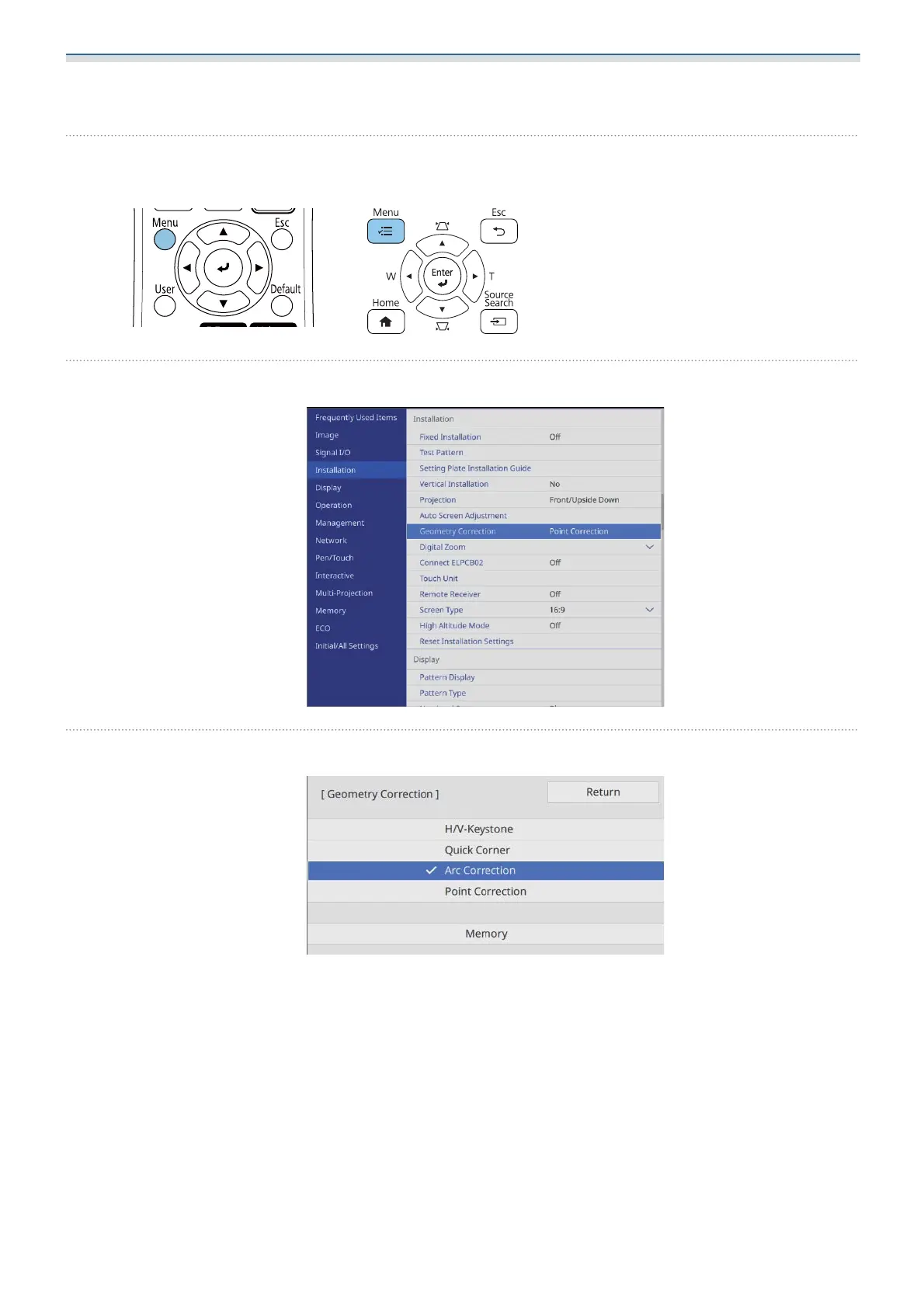

Press the [Menu] button

Using the Remote Control Using the Control Panel

Select Geometry Correction from the Installation menu

Select Arc Correction
