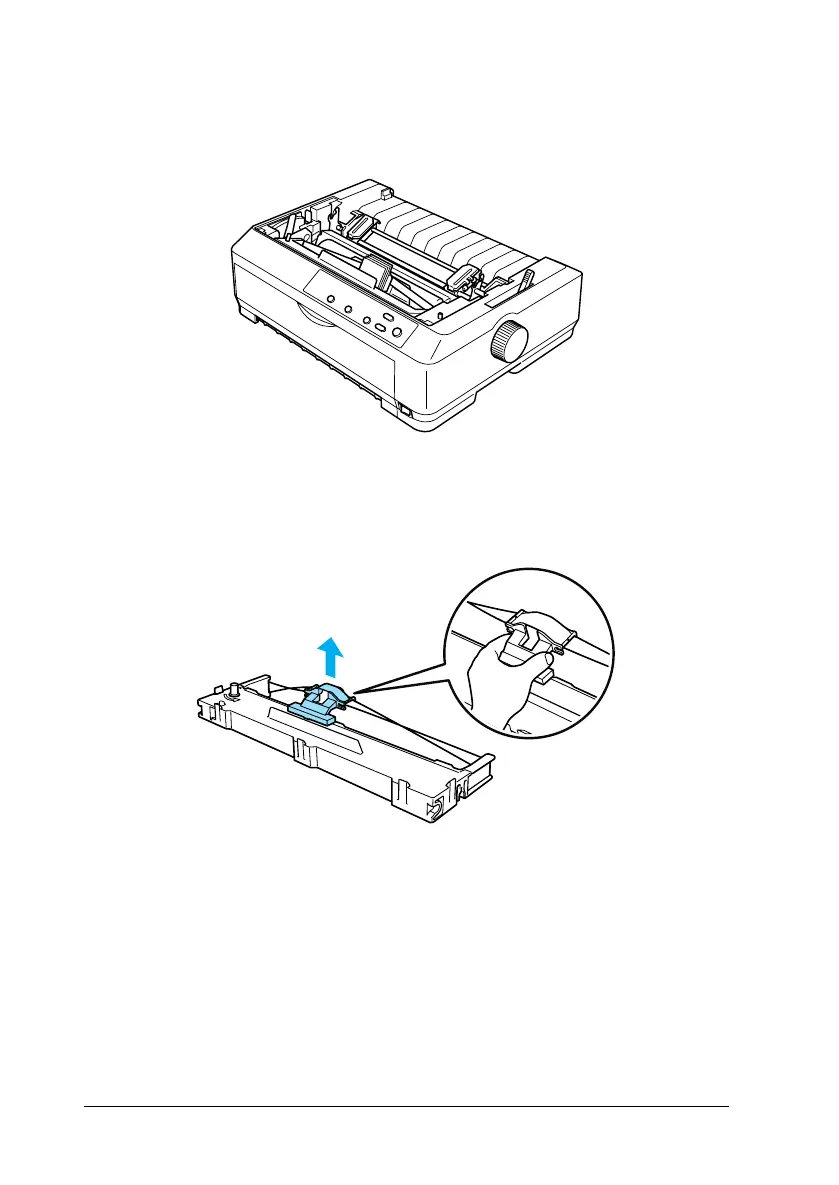

8. Grasp the used cartridge by its handle and pull it up and out
of the printer.
9. Hold both sides of the ribbon guide and pull it until it is out
of the cartridge.
10. Insert the ribbon cartridge into the printer at an angle as
shown below, then press firmly on both sides of the cartridge
to fit the plastic hooks into the slots on the printer.
