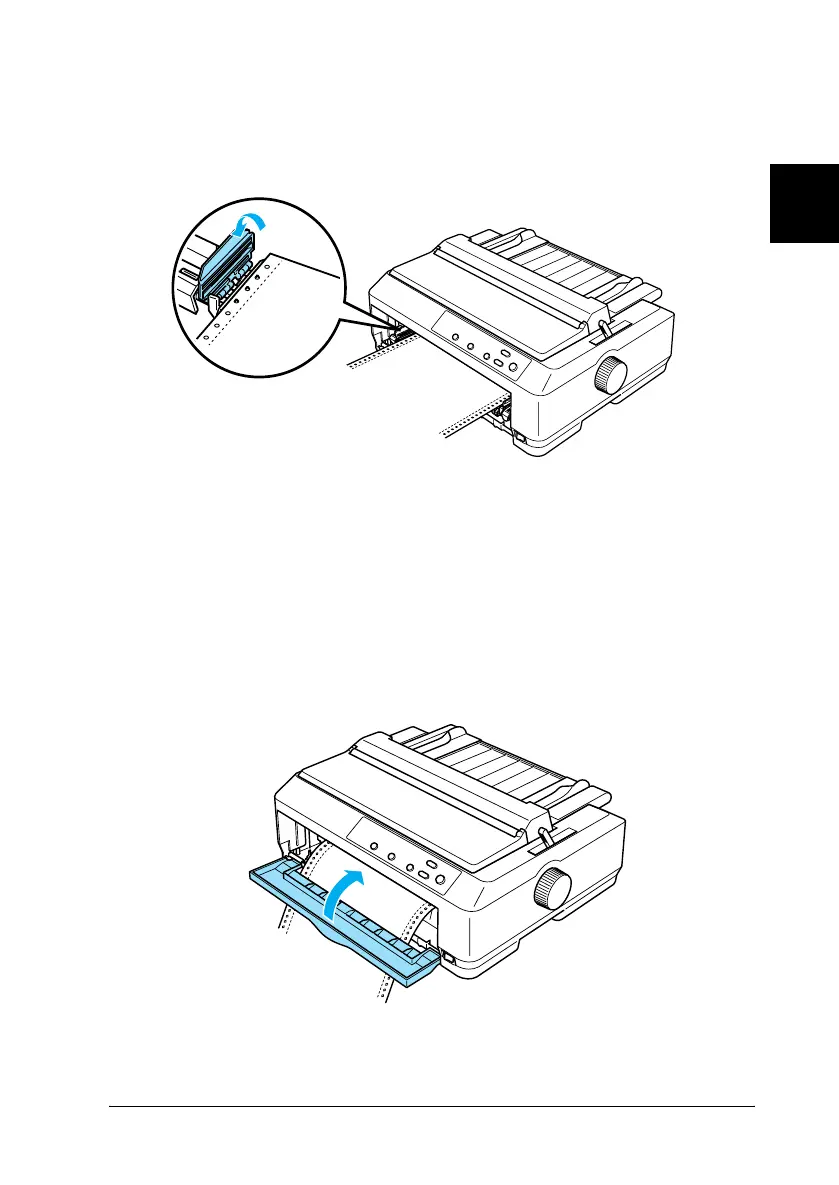

7. Make sure your paper has a clean, straight edge. Then open
both sprocket covers and fit the first four holes of the paper,
with printable side up, over the tractor pins.
8. Close the sprocket covers.
9. Slide the right sprocket to remove any slack in the paper; then
lock it in place by pushing the sprocket lock down.
10. Attach the front cover with the continuous paper positioned
as shown below.
