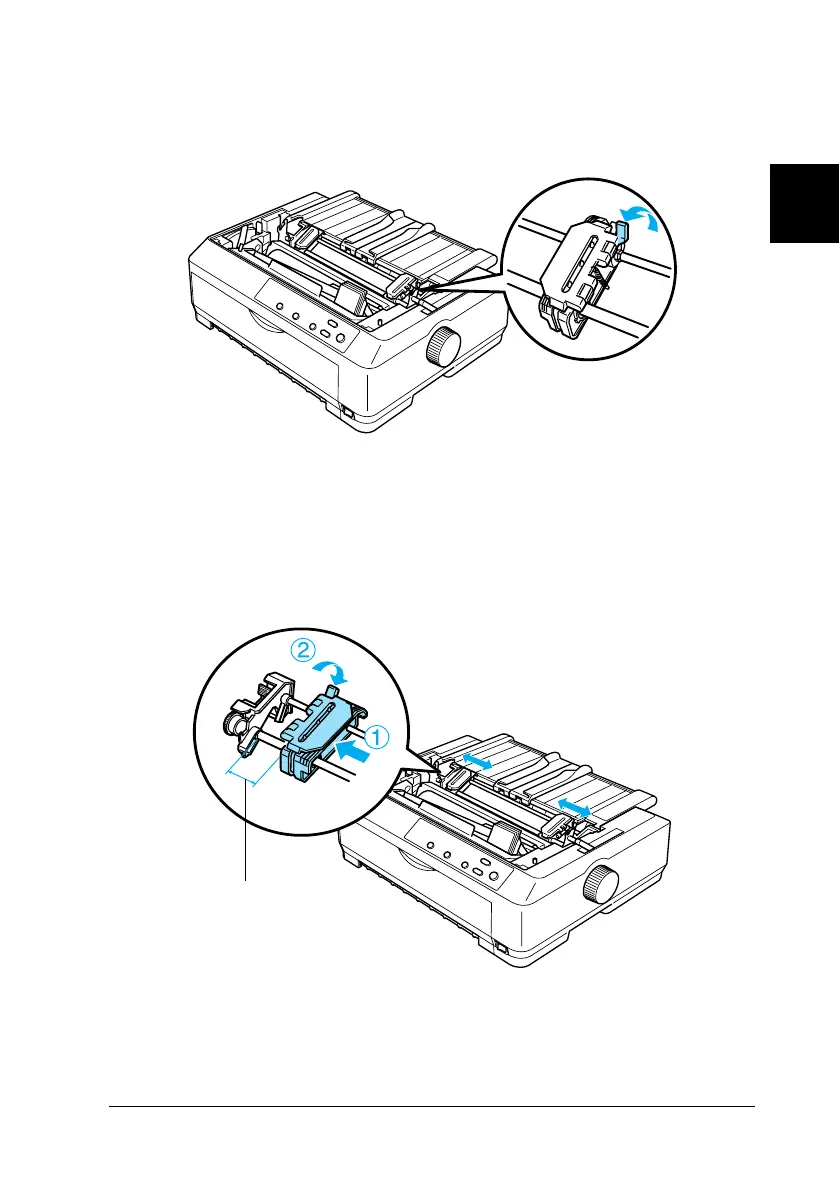

3. Release the sprockets by pulling the sprocket lock levers
forward.
4. Slide the left sprocket approximately 12 mm (0.5 inch) from
the far left position and push the lever back to lock it in place.
Then slide the right sprocket to match the width of your
paper, but do not lock it.
5. Make sure your paper has a clean, straight edge. Then open
the sprocket covers.
approx. 12 mm (0.5 inch)
