Epson LX 300+II Reference Guide

Options and Consumables 111
8. Turn on the printer. Then hold down the LF/FF button to
feed one page.
9. Release the sprocket lock levers on the pull tractor and
adjust the sprockets to match the width of the paper you are
using. Make sure the sprockets on both tractors are aligned
so that the paper is not crooked.
10. Open the sprocket covers. Fit the holes of the paper over the
tractor pins and adjust the sprockets as necessary. Close the
sprocket covers.

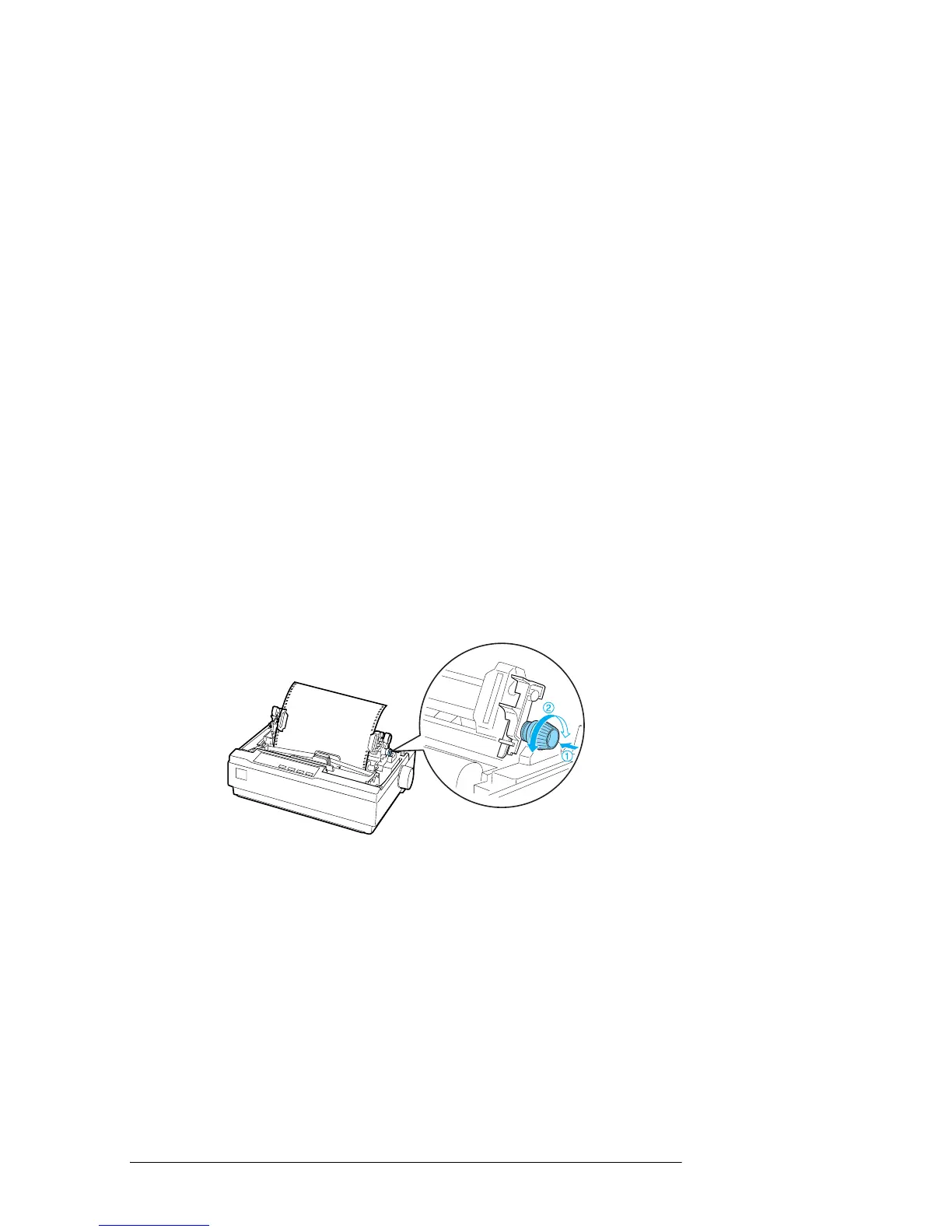

11. If there is slack in the paper between the push and pull
tractors, push in and turn the paper feed knob on the right
side of the pull tractor to remove the slack.
12. Make sure the paper is not crooked or wrinkled and then
lock the sprockets in place.
13. Replace the printer cover and the paper guide.

Epson LX 300+II Specifications

Power

rated voltage	120V AC
input voltage range	99 to 132V, 198 to 164V
rated frequency range	50 to 60 Hz
input frequency range	49.5 to 60.5 Hz
power consumption	Approx. 23W (ISO/IEC 10561 Letter Pattern)

Performance

print speed high speed draft	337 cps (12 cpi)
print speed draft	225 cps (10 cpi)
print speed near letter quality	56 cps (10 cpi)
sound level	49 dBA (ISO 7779 pattern)
mtbf	6, 000 POH (25% duty cycle)
print head life	400 million characters
ribbon life	3 million characters (draft, 10 cpi, 14 dots/character)

Weight and Dimensions

carton dimensions	14.5" x 17.6" x 8.6" (W x D x H)
carton weight	12.10 lb
height	6.26" (159 mm)
width	14.42" (366 mm)
depth	10.84" (275 mm)
weight	9.7 lb (4.4 kg)
