15
Basic Operations

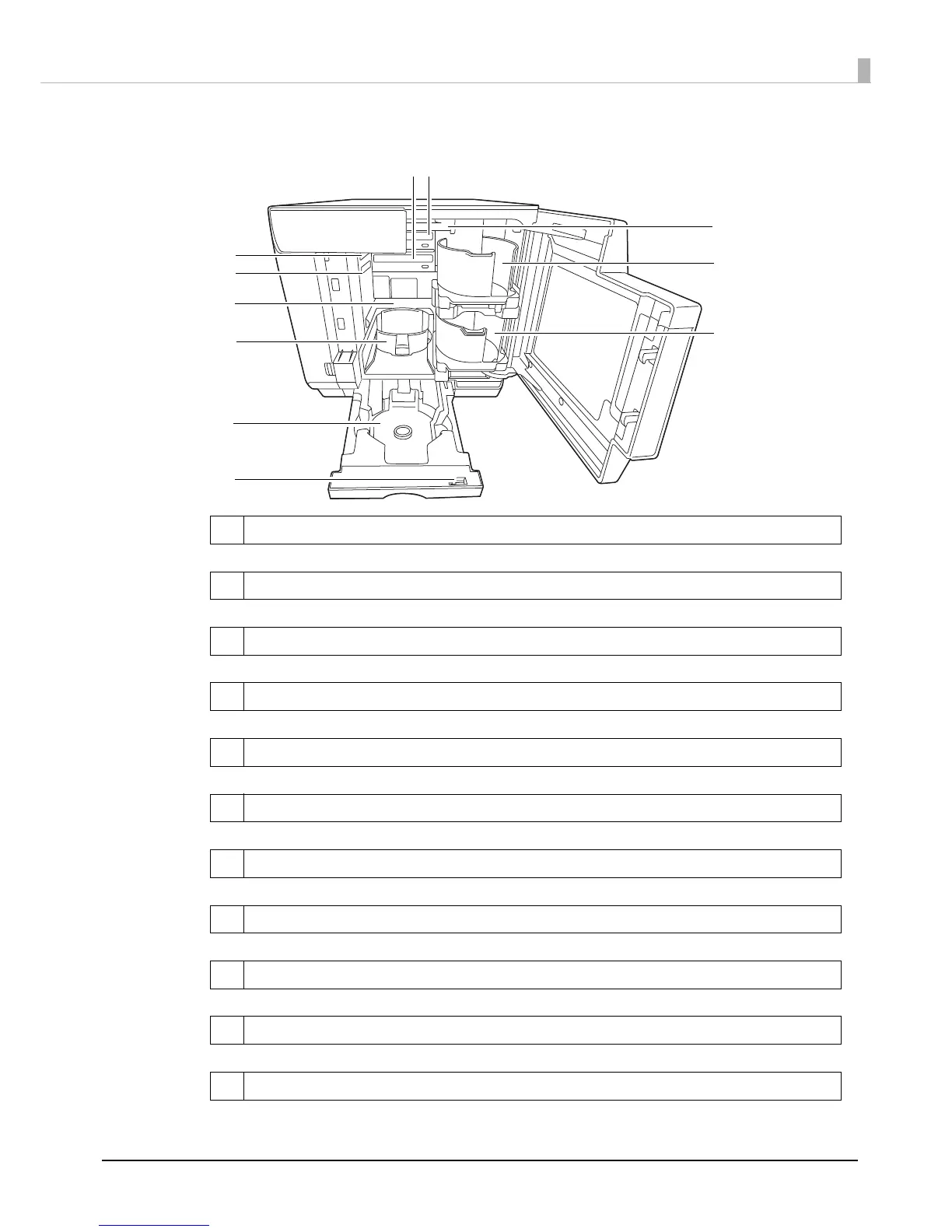

Inside
1 Drive 1 (Only for PP-100II/PP-100)
Writes data on the recording surface of the discs.
2 Drive 2 (Only for PP-100II/PP-100)
Writes data on the recording surface of the discs.
3 Drive release lever 1 (Only for PP-100II)
Releases Drive 1 when you replace it.
4 Drive release lever 2 (Only for PP-100II)
Releases Drive 2 when you replace it.
5Printer
Prints on the label surface of the discs.
6Stacker 3
Use as the disc output stacker. Holds up to about 50 discs.
7Stacker 4
Use as a disc output stacker. Holds up to about 5 discs.
8Lock lever
Locks and unlocks Stacker 4. Be sure to lock when using Stacker 3.
9Arm
Transports discs.
10 Stacker 1
Use Stacker 1 as a disc input stacker. Holds up to about 50 discs.
11 Stacker 2
Use Stacker 2 as a disc input or output stacker. Holds up to about 50 discs.
10
9
11
1
5
8
2
6
4
3
7
PP-100II/PP-100/PP-100AP
