SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 133
Confidential

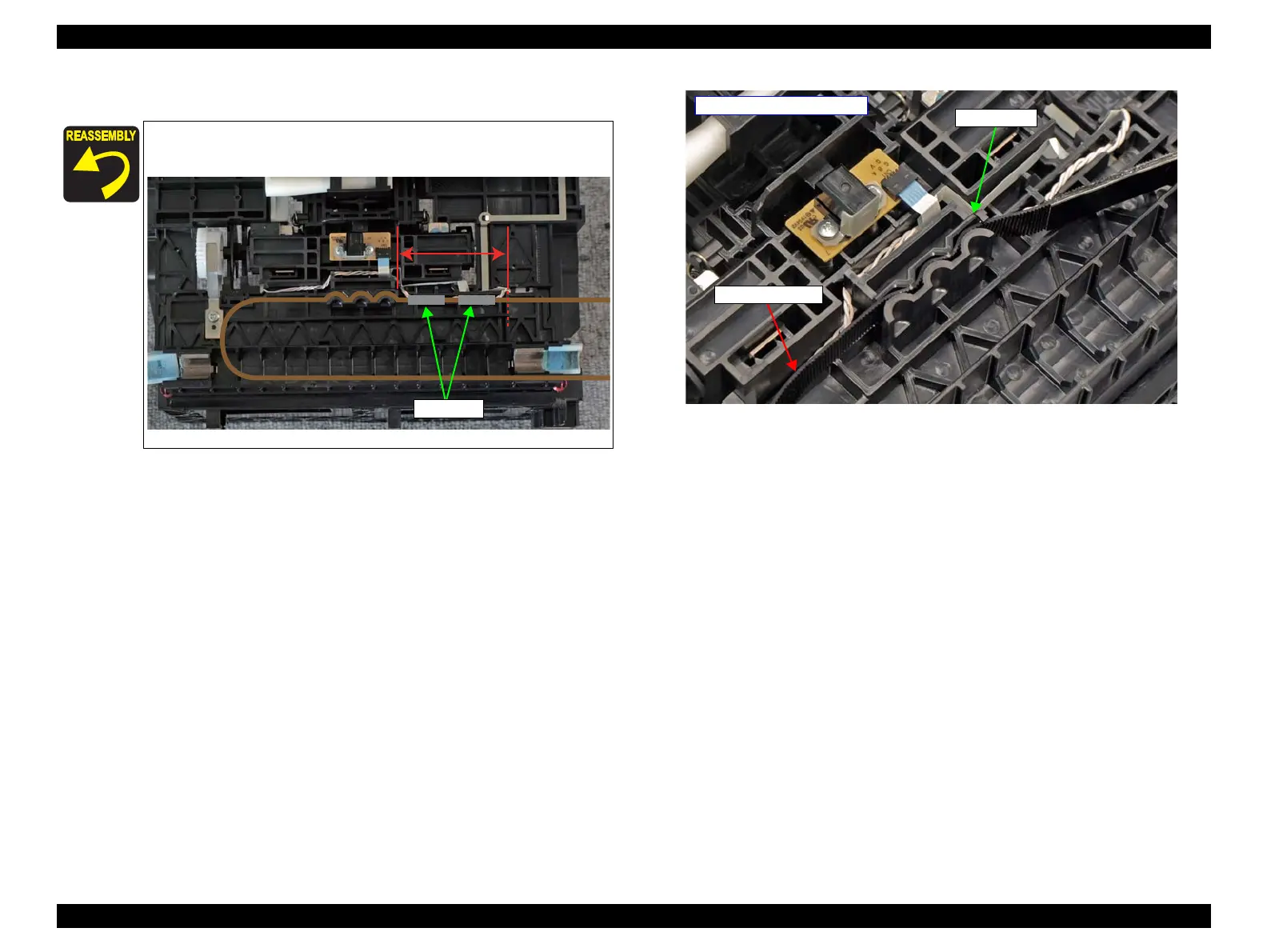

18. Remove the CR Timing Belt from the belt holder on the back side of the CR Unit.
Figure 3-82. Removing the CR Timing Belt
Attach the CR Timing Belt to the CR Unit so that the joint clips on
the belt locate within the range shown below.
Joint clips
- Back side of the CR Unit -
Belt Holder
CR Timing Belt
