Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 132
Confidential
3.4.5.8 CR Timing Belt
1. Unlock the CR Unit. (p82)
2. Remove the Wiper Cleaner. (p84)
3. Remove the Media Loading Lever. (p158)
4. Remove the Right Upper Cover. (p88)
5. Remove the Right Cover. (p92)
6. Remove the Left Rear Cover. (p94)
7. Remove the Left Upper Cover. (p95)
8. Remove the Left Cover. (p98)
9. Remove the APG Unit. (p138)
10. Remove the CR Motor. (p134)
11. Remove the CR Cover. (p119)
12. Remove the Damper Kit. (p120)
13. Remove the Print Head. (p121)
14. Remove the CR Scale. (p130)
15. Remove the CR Unit. (p151)
16. Remove the two screws, and remove the pulley cover.
A) Silver M3x6 S-tite screw with built-in washer: 1 pcs
B) Silver M3x12 screw with washer: 1 pcs
17. Remove the pulley, shaft, and belt together from the pulley holder.

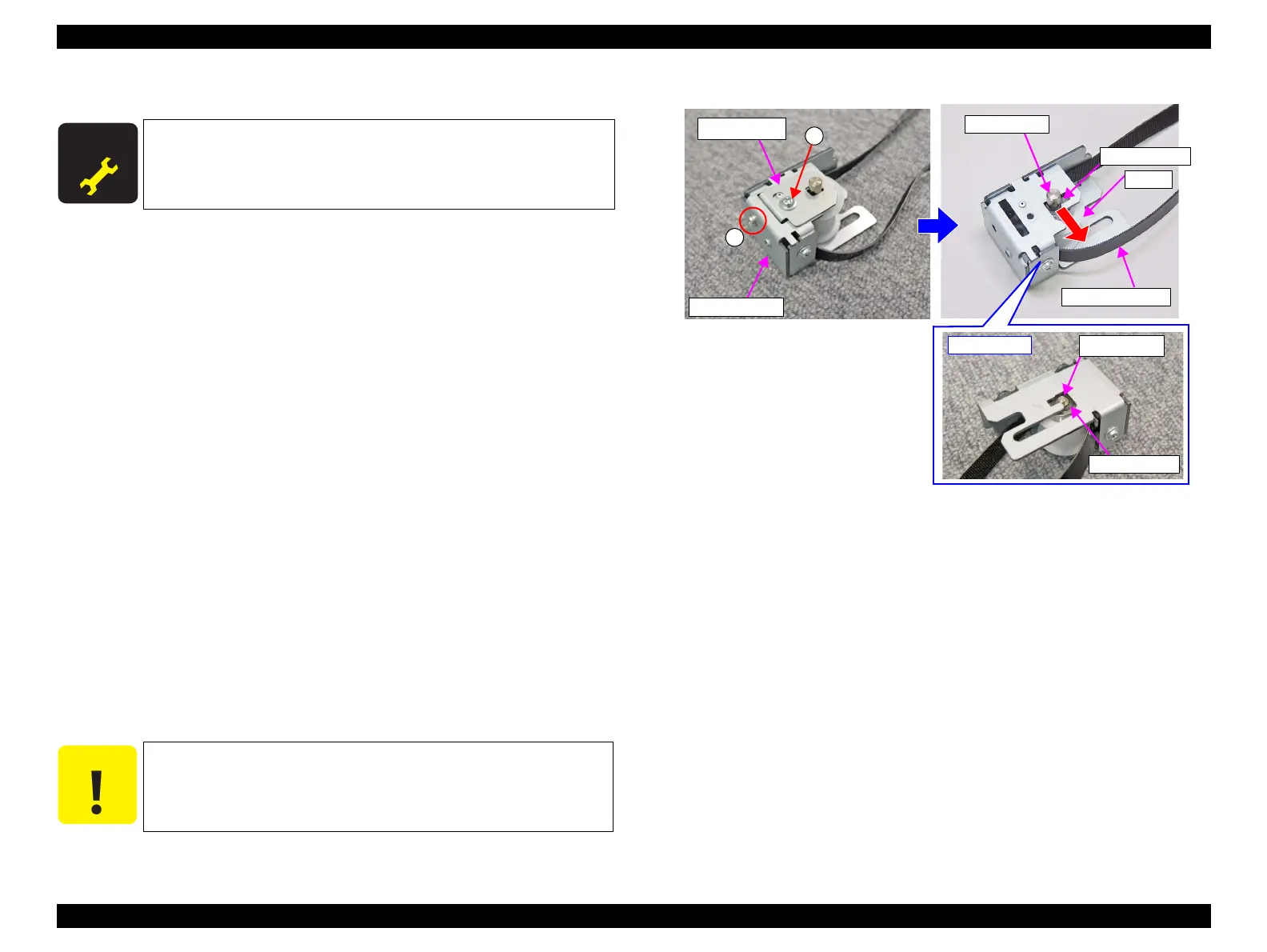

Figure 3-81. Disassembling the Pulley Holder
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p200) and make sure to
perform the specified operations including required adjustment.
C A U T I O N
In the next step, the two plastic washers at the both ends of the
pulley shaft will come off. Be careful not to lose them.
Pulley Shaft
- Back side -
Plastic washer
B
A
Pulley Cover
Pulley Holder
Pulley
Pulley Shaft
Plastic washer
CR Timing Belt
