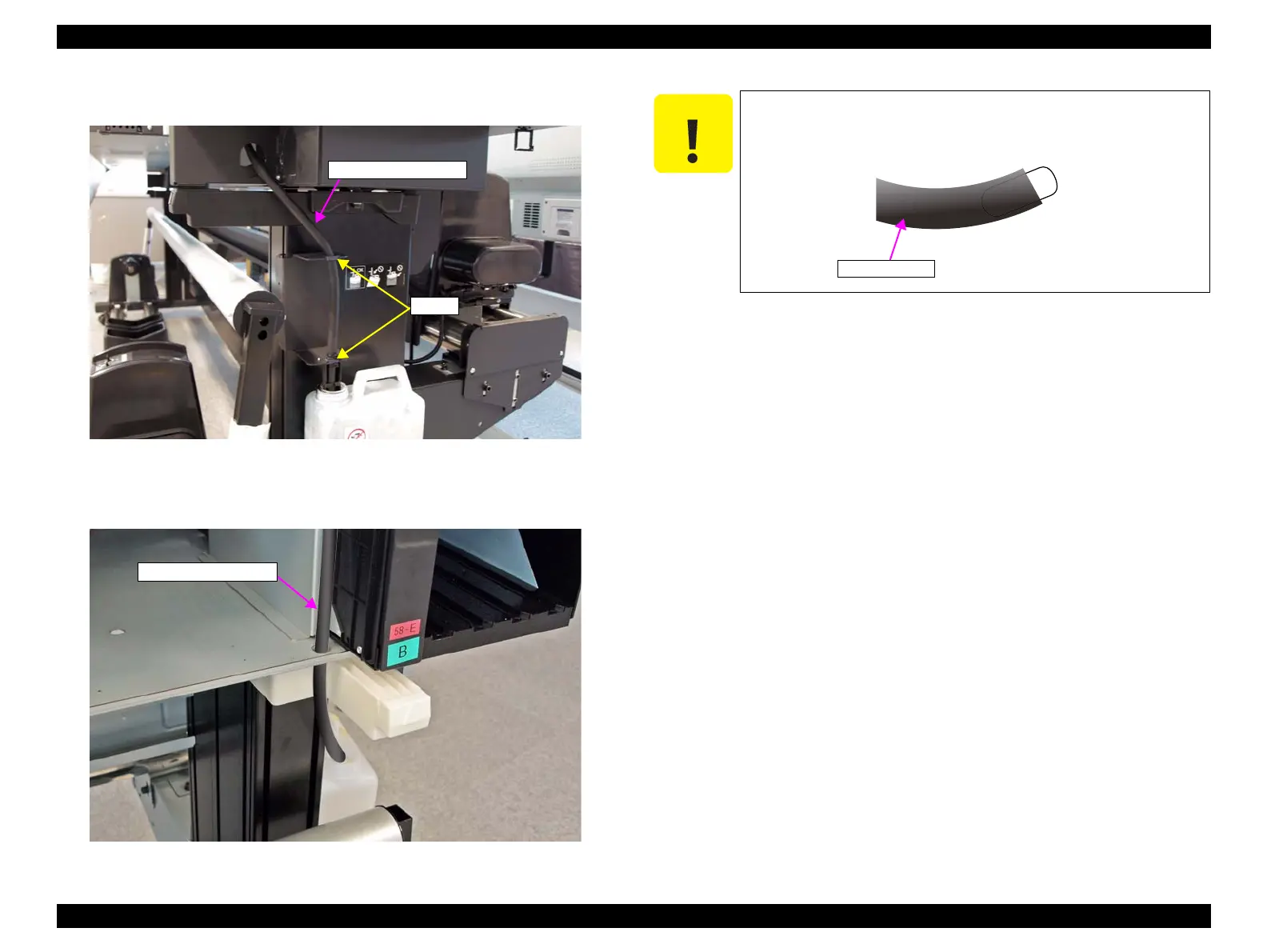

9. Open the two clamps and release the Waste Ink Tubes.
Figure 3-104. Releasing the Waste Ink Tubes
10. Pull out the Waste Ink Tubes through the hole of the main body frame.
Figure 3-105. Releasing the Waste Ink Tubes
11. Remove the screw, and remove the Flushing Box toward the front of the printer.
A) Silver M3x8 S-tite screw with built-in washer: 1 pcs
Waste Ink Tank Tube
Clamps
After pulling out the Waste Ink Tube, put waste cloth or the like
into the tip of the tube to prevent ink from dripping from the tube.
To Next Page
