SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 152
Confidential
16. Disconnect the CR FFC from the connector (CN100) on the Sub Board.
17. Remove the FFC clamp that secures the Head FFCs.
18. Remove the two screws, and remove the Ink Path Holder Assy.
C) Silver M3x6 screw: 2 pcs

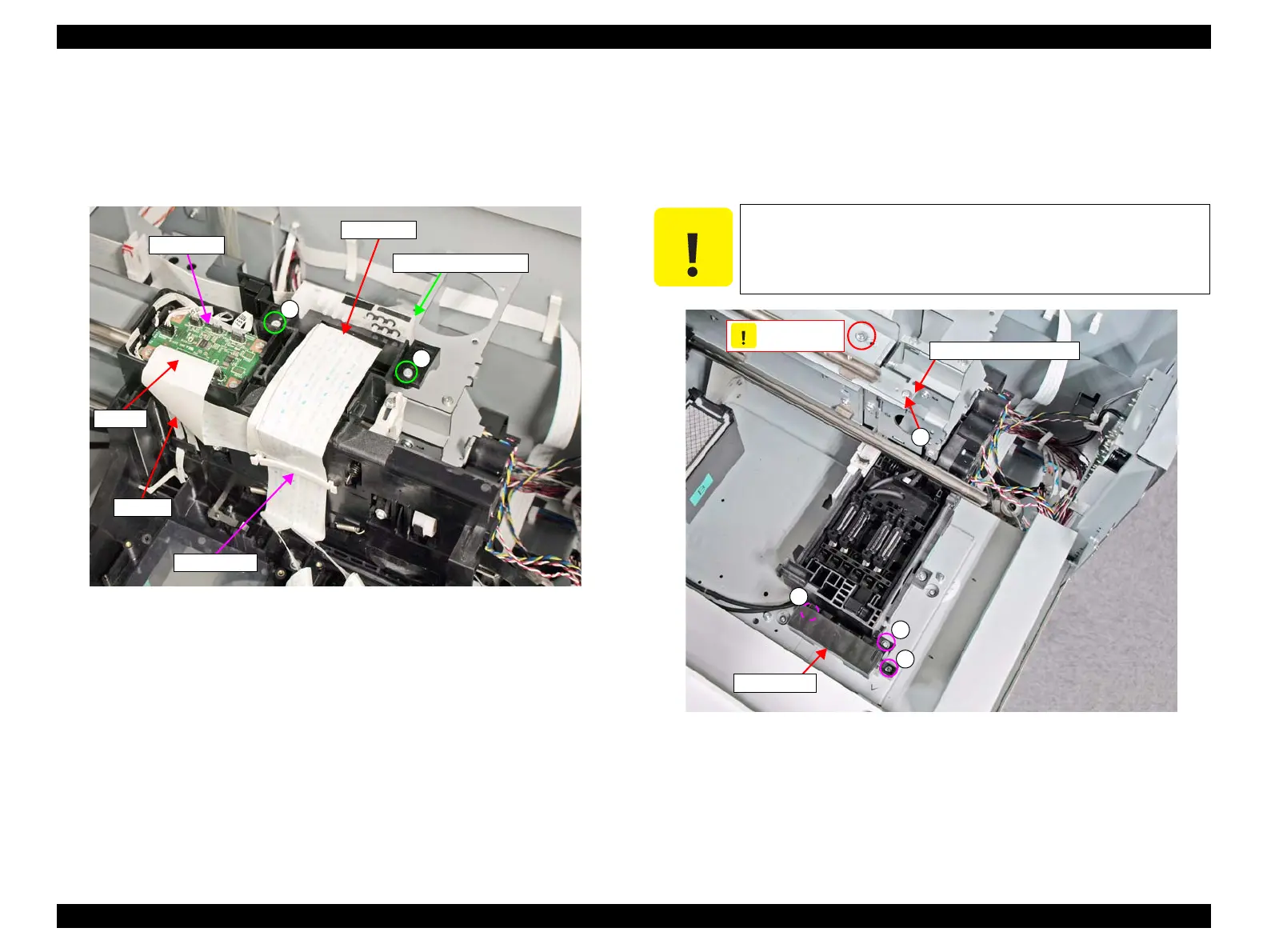

Figure 3-107. Removing the Ink Path Holder Assy
19. Remove the three screws, and remove the CR Stopper.
D) Silver M3x8 screw: 3 pcs
20. Remove the screw, and remove the CR Scale Mounting Plate.
E) Silver M3x8 screw: 1 pcs
Figure 3-108. Removing the CR Stopper
C
C
Sub Board
Head FFC
Ink Path Holder Assy
CR FFC
FFC Clamp
CN100
C A U T I O N
Never remove or loosen the screw shown below.
E
D
D
D
CR Scale Mounting Plate
CR Stopper
Never remove!
C A U T I O N
