SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 153
Confidential

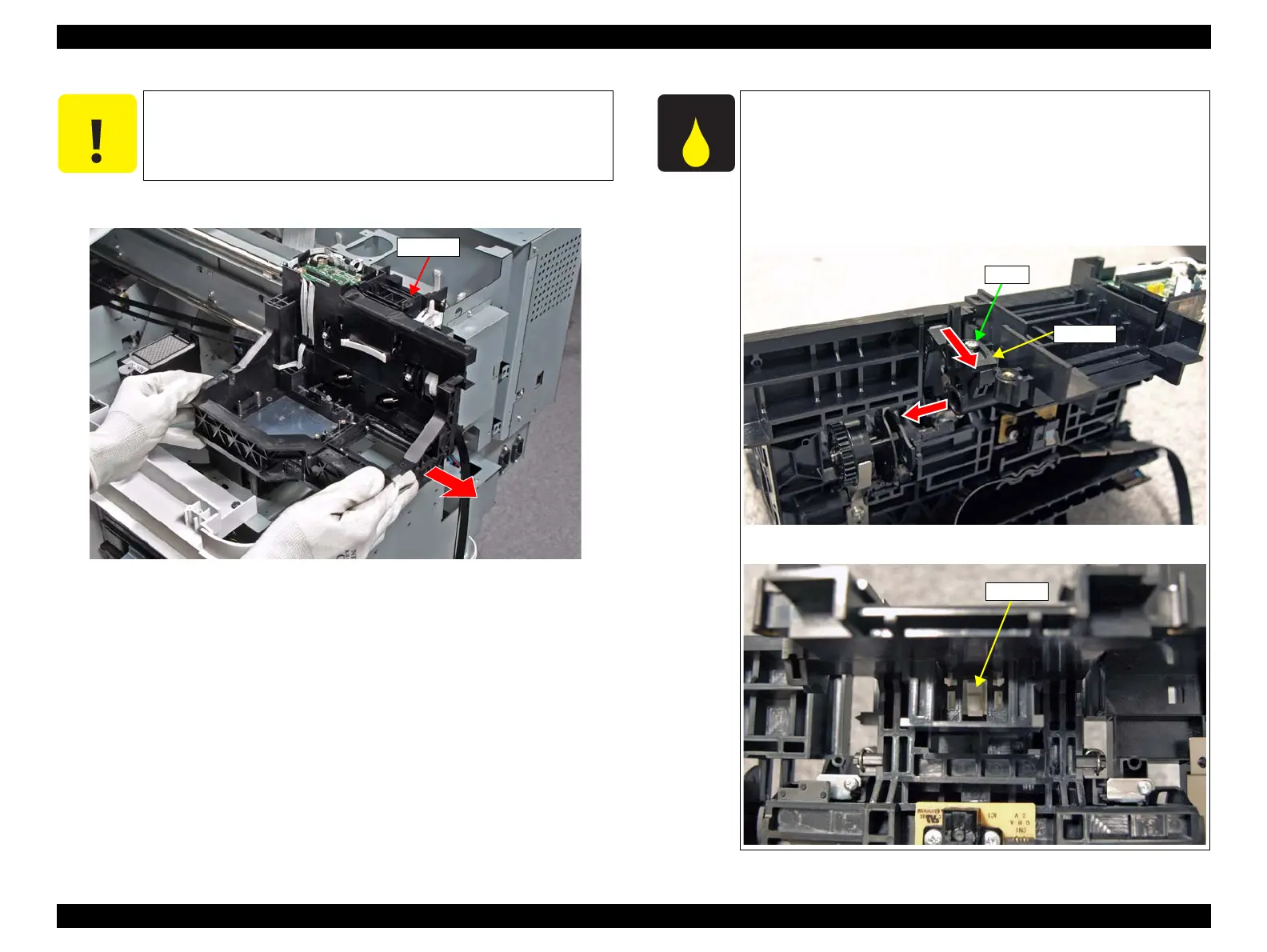

21. Remove the CR Unit by sliding it in the direction of the arrow.
Figure 3-109. Removing the CR Unit
Before performing the next step, check that the Wiper is at its
standby position.
When replacing the CR Unit, remove the CR Slider following the
procedure below and lubricate it. For instructions on the
lubrication, see “5.6 Lubrication” (p288).
1. Remove the Silver M2.5x8 P-tite screw that secures the PG
Lever.
2. Move the PG Lever in the direction of the arrow as far as it will
go, pull out the lever.
3. Disengage the hook and remove the CR Slider.
To Next Page
