DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 154
Confidential
3.4.5.19 Oil Pad Holder
1. Unlock the CR Unit. (p82)
2. Open the Front Cover.
3. Move the CR Unit to a position over the platen.
4. Disengage the hook, and remove the Oil Pad Holder.

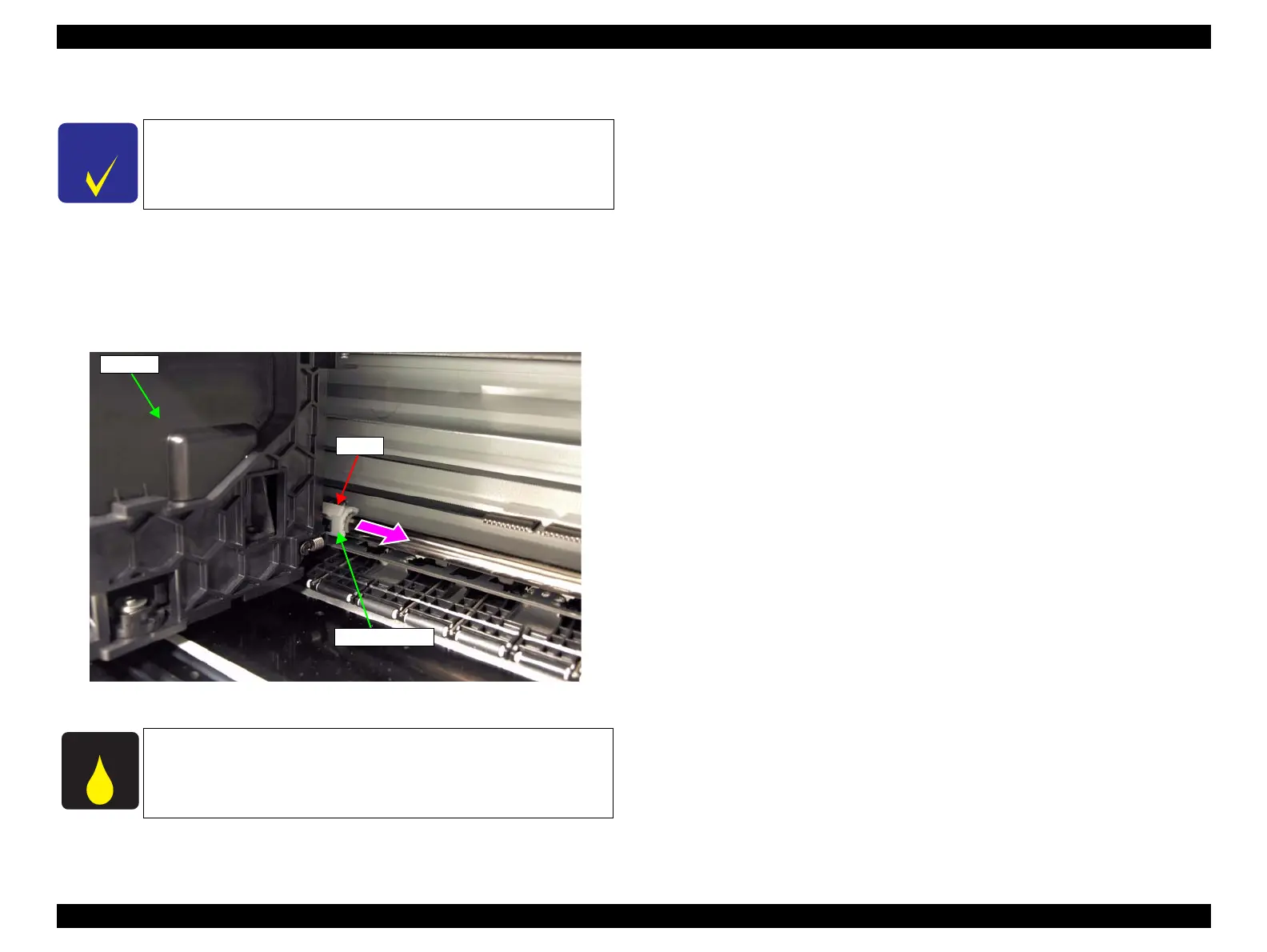

Figure 3-110. Removing the Oil Pad Holder
C H E C K
P O I N T
The procedure below is for disassembling the Oil Pad Holder at the
right. Use the same procedure for disassembling the left one.
LubricationLubrication
When replaced with a new part, make sure to lubricate the new one
referring to“5.6 Lubrication” (p288).
CR Unit
Hook
Oil Pad Holder
