Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 155
Confidential
3.4.5.20 PW Sensor
1. Unlock the CR Unit. (p82)
2. Remove the Left Rear Cover. (p94)
3. Remove the Left Upper Cover. (p95)
4. Remove the CR Cover. (p119)
5. Move the CR Unit to the left end.
6. Remove the screw that secures the Sensor Cover.
A) Silver M3x8 P-tite screw with built-in washer: 1 pcs
7. Disengage the two hooks, and remove the Sensor Cover.

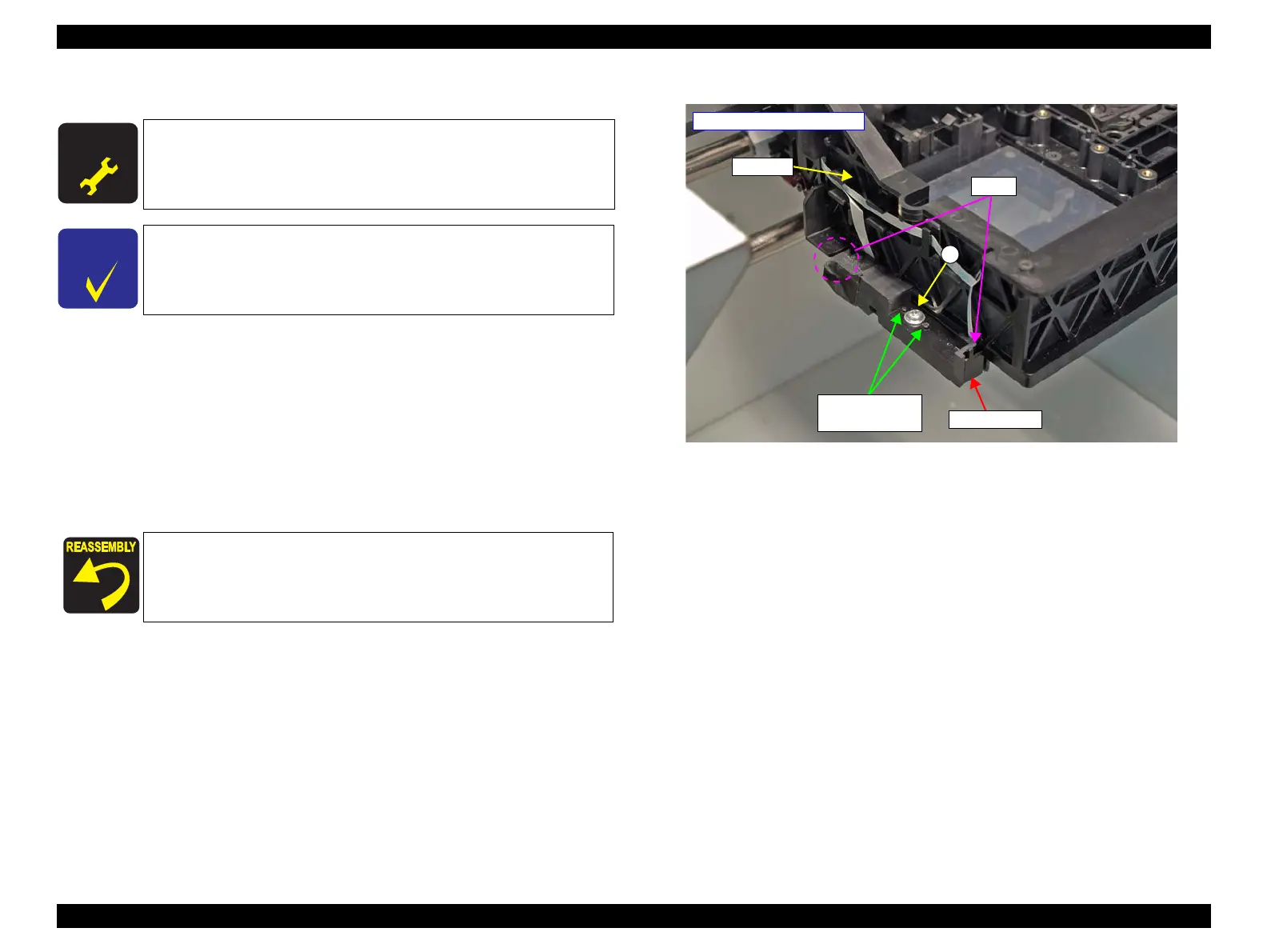

Figure 3-111. Removing the Sensor Cover
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p200) and make sure to
perform the specified operations including required adjustment.
C H E C K
P O I N T
When replacing the PW Sensor, make sure to replace the IM
Sensor, too.
Insert the two dowels of the Sensor Cover into the two positioning
holes on the CR Unit.
- Left Side of the CR Unit -
Positioning holes
and dowels
CR Unit
Sensor Cover
Hooks
A
