Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 156
Confidential

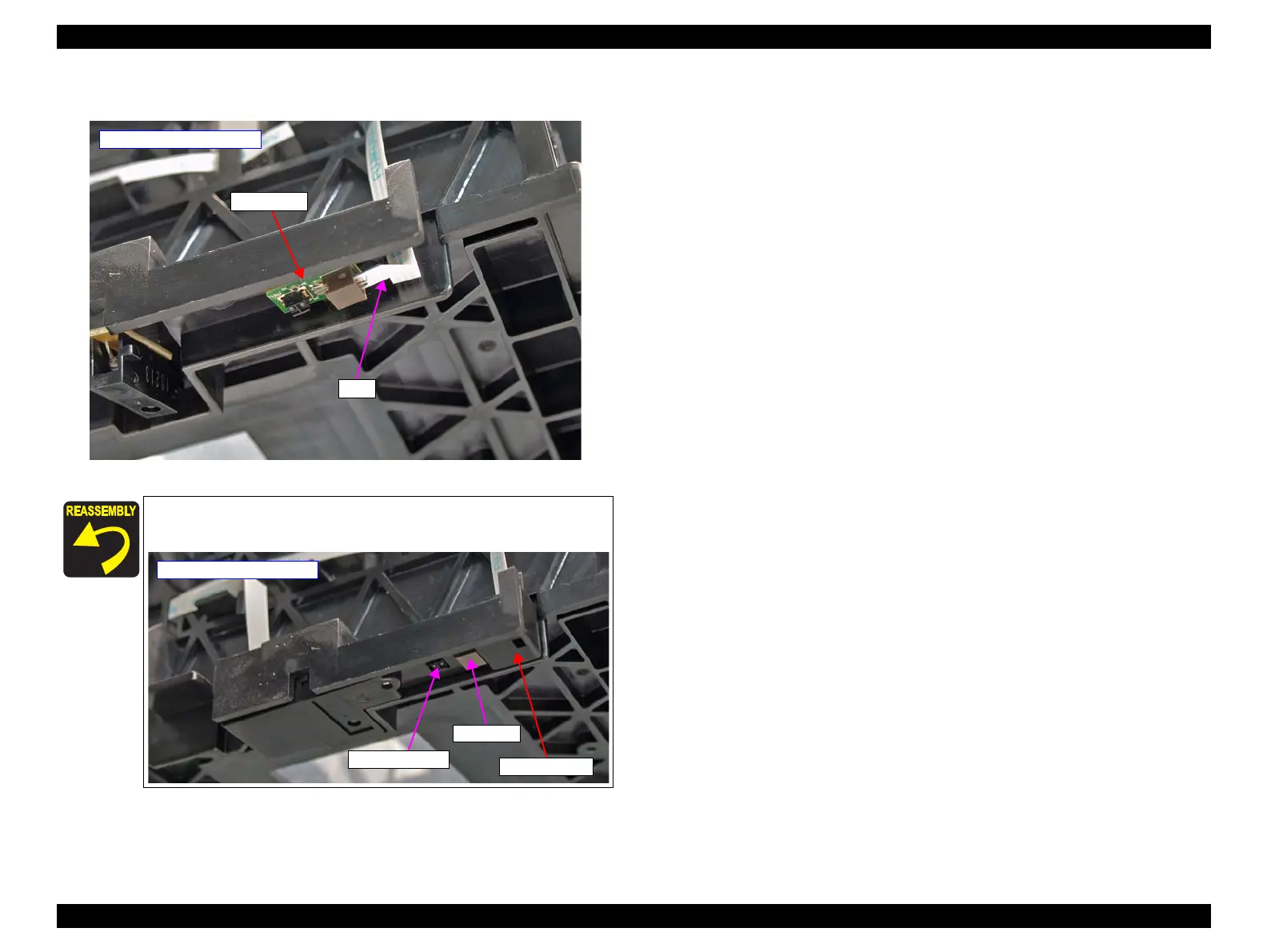

8. Disconnect the FFC from the PW Sensor, and remove the PW Sensor.
Figure 3-112. Removing the PW Sensor
Position the PW Sensor so that its sensing portion and connector
are located as shown.
- Bottom of the CR Unit -
FFC
PW Sensor
- Bottom of the CR Unit -
Sensing Portion
Sensor Cover
Connector
