Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 165
Confidential
3.4.6.7 Driven Roller Assy
1. Move the Media Loading Lever to the rear side, and set it to the release position.
2. Open the Front Cover.
3. Push the Driven Roller Assy in the direction of the arrow, and remove it from the
shaft bearing of the Driven Roller Holder.

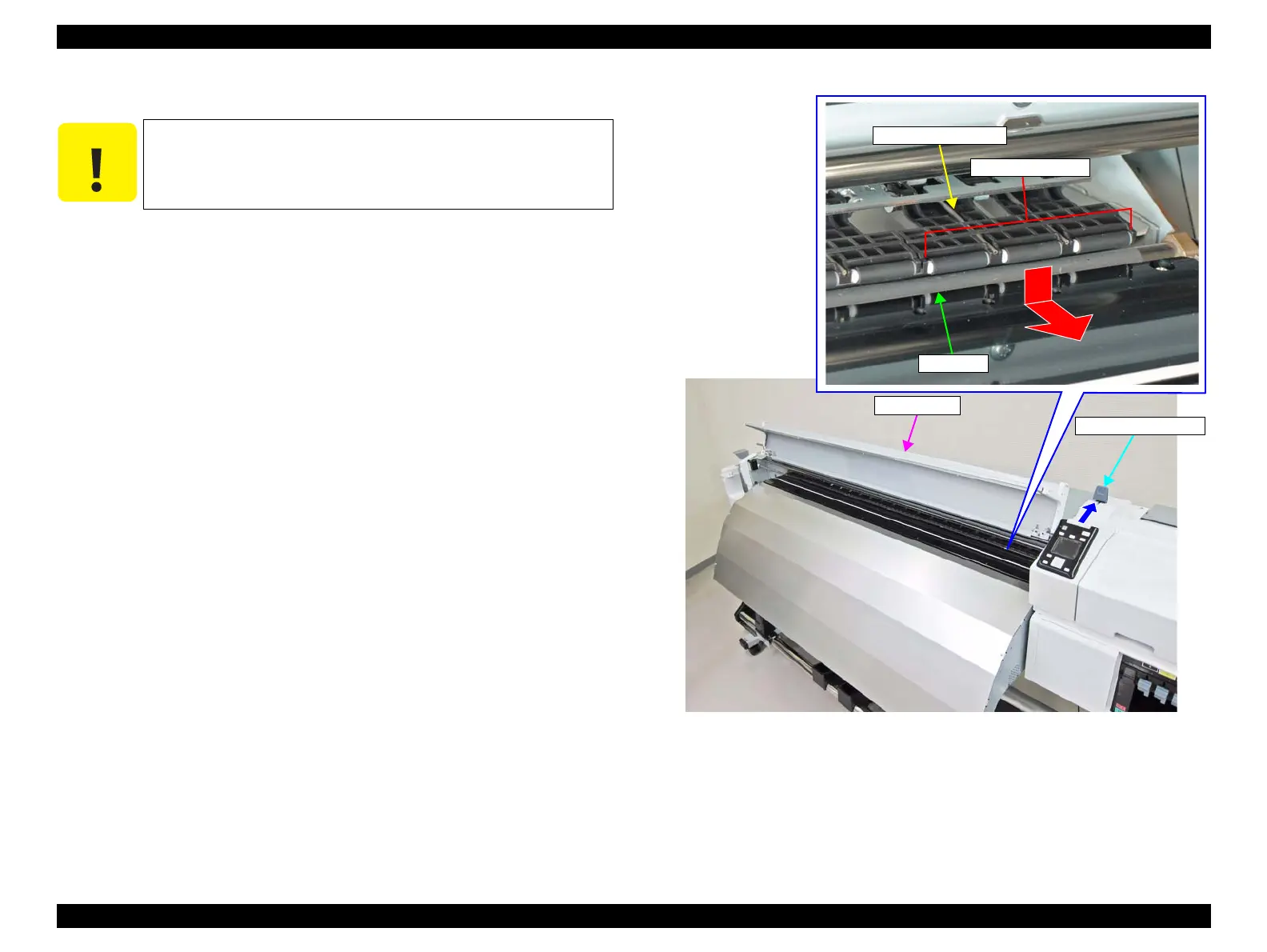

Figure 3-125. Removing the Driven Roller Assy
C A U T I O N
 Do not scratch the PF Roller with the shaft of the Driven Roller
Assy.
 Do not touch the Driven Rollers with bare hands.
PF Roller
Driven Roller Holder
Driven Roller Assy
Front Cover
Media Loading Lever
