Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 166
Confidential

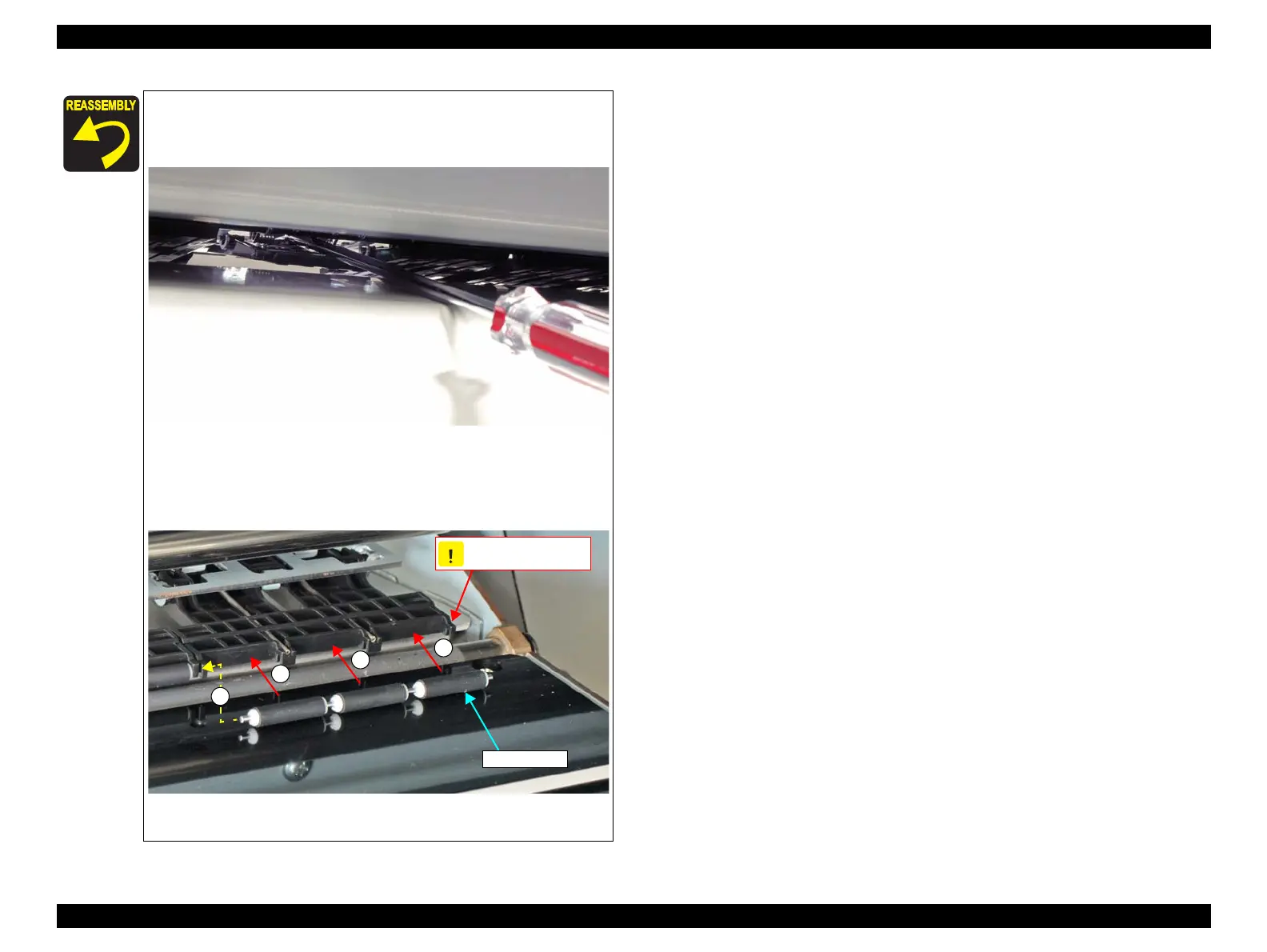

 Install the Driven Roller Assy in the following procedure.
1. Insert a screwdriver from the rear of the printer and raise the
Driven Roller Holder to make the reassembly work easier.
2. Either one of the left or right end of the shaft into the Driven
Roller Holder.
3. Align the three rollers with their mounting places and press the
rollers into the holder.
 The left and right portions of each roller differ in shape, but
mounting direction is not specified.
Driven Roller
2
3
3
3
Take care not to
break the bearings!
C A U T I O N
