Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 169
Confidential
9. Disconnect the cable from the relay connector.
10. Release the cable from the clamp.
11. Pass the rolled A4 paper through the hole on the frame.
12. Insert the screwdriver through the rolled A4 paper to remove the two screws, and
remove the Suction Fan.
B) Silver M3x40 screw: 2 pcs

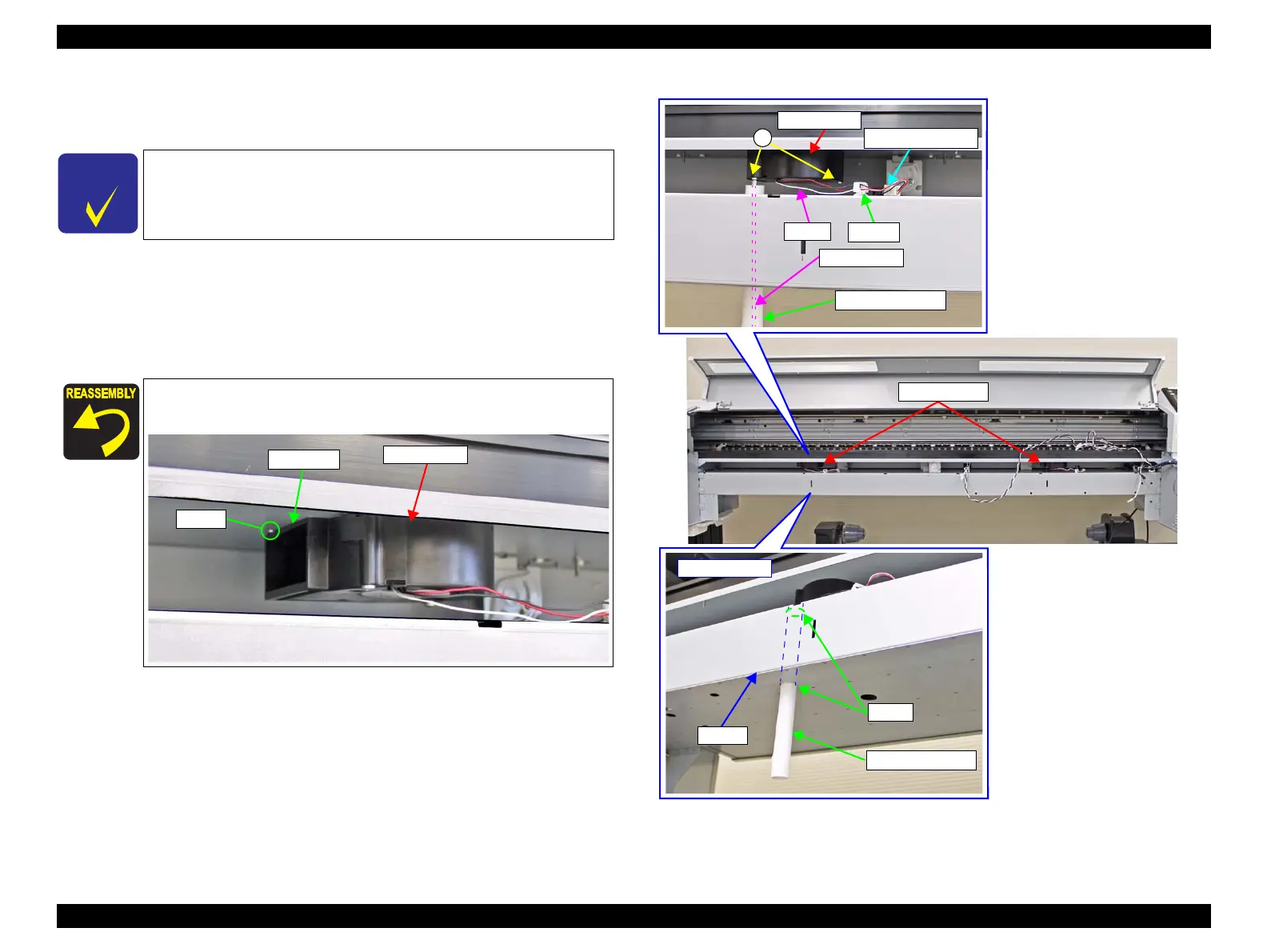

Figure 3-128. Removing the Suction Fan
C H E C K
P O I N T
To prevent the screw of the Suction Fan from dropping inside the
frame, remove the screw with rolled A4 paper put through the hole
of the frame.
Install the Suction Fan with its duct part in contact with the dowel
of the frame.
Dowel
Suction Fan
Duct part
Frame
Rolled A4 paper
Holes
- Bottom side-
Clamp
Suction Fan
Relay Connectors
Screwdriver
Cable
Rolled A4 paper
B
Suction Fans
