DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 168
Confidential
6. Remove the nine screws that secure the Front Frame.
A) Silver M3x8 S-tite screw with built-in washer: 9 pcs
7. Lift the Front Frame to disengage the two ribs.
8. Taking care not to let the Front Frame get contact with the main body, remove the
Front Frame in the direction of the arrow.

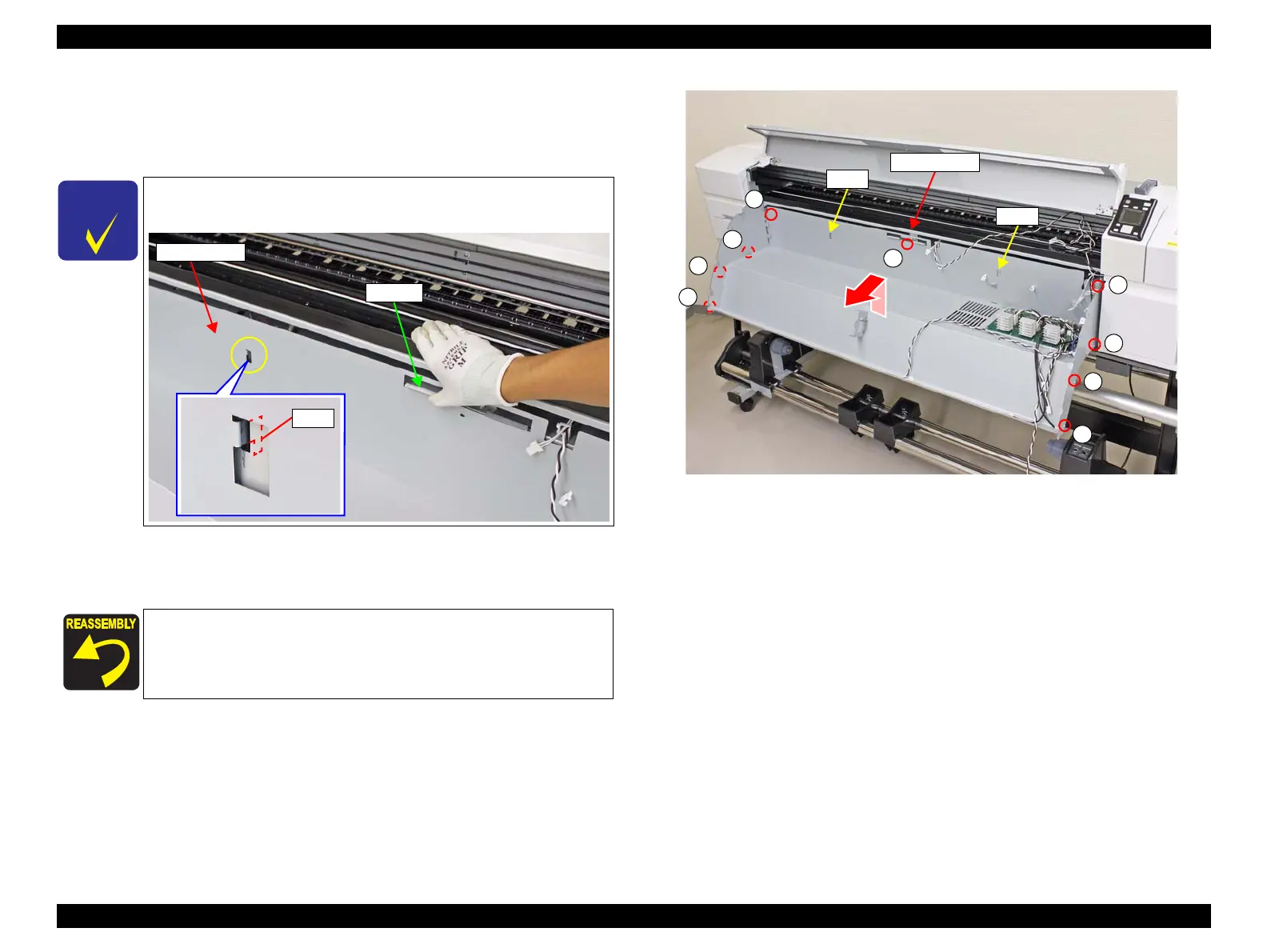

Figure 3-127. Removing the Front Frame
C H E C K
P O I N T
To disengage the hooks, lift the Front Frame holding the handle, or
lift it by raising the bottom of the frame.
When attaching the Front Frame, take extra care not to let the
cables get caught between the Front Frame and main body.
Hook
Front Frame
Handle
A
A
A
A
A
A
A
A
A
Front Frame
Hook
Hook
