SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 173
Confidential
9. Disconnect the cables of the Platen Heater from the three relay connectors.
10. Release the cables of the Platen Heater from the three clamps.
11. Remove the Platen Heater Assy upward while pulling out the Platen Heater cables
through the holes on the frame.

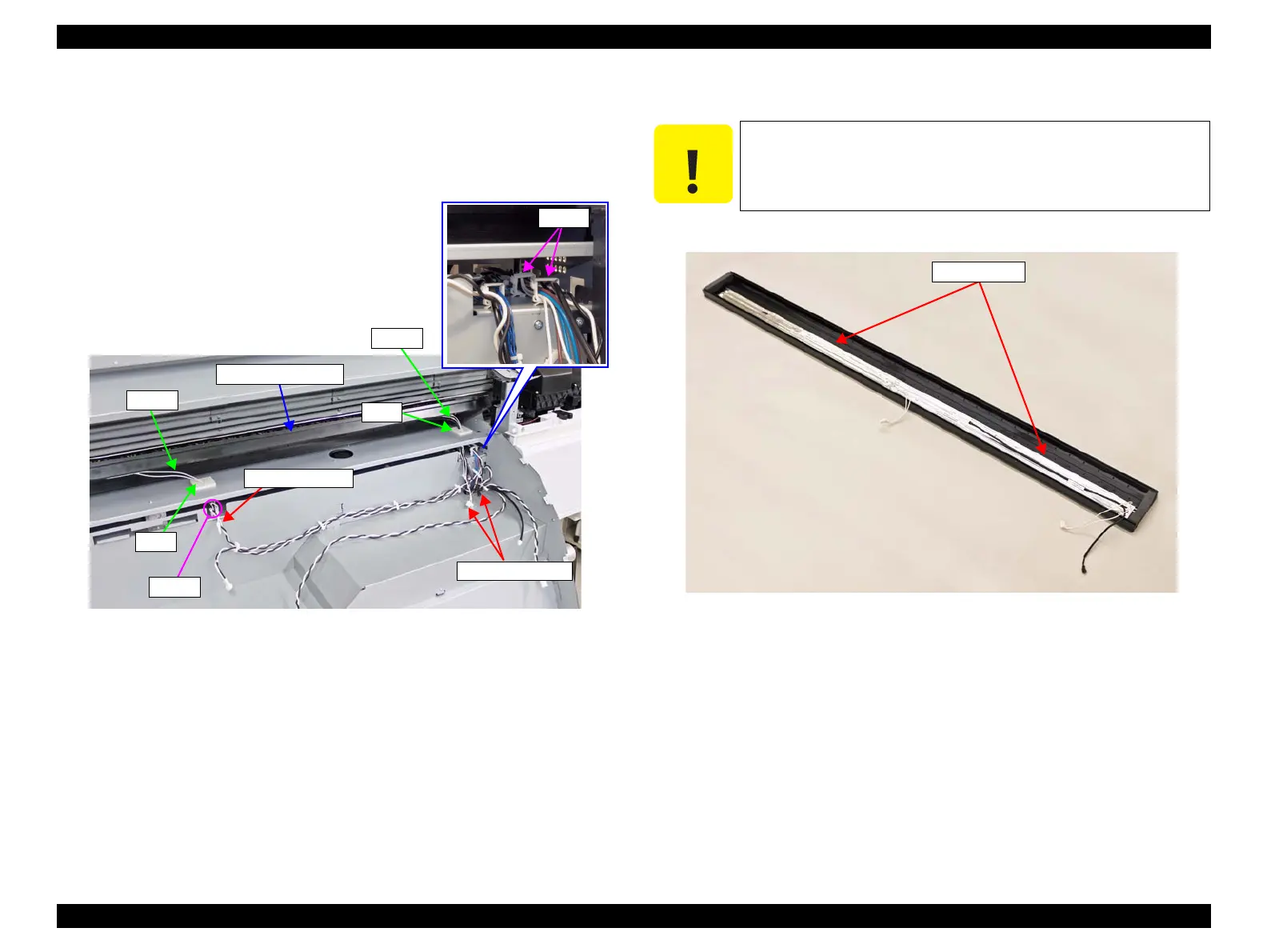

Figure 3-135. Removing the Platen Heater Assy
12. Remove the two Platen Heaters from the back side of the Platen Heater Assy.
Figure 3-136. Removing the Platen Heater
Clamps
Cable
Hole
Platen Heater Assy
Cable
Relay Connectors
Relay Connector
Hole
Clamp
C A U T I O N
After removing the Platen Heaters, remove the residual adhesive
paste and aluminum as much as possible.
Platen Heaters
