Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 172
Confidential
3.4.7.2 Platen Heater
1. Remove the Media Loading Lever. (p158)
2. Remove the Panel Unit. (p86)
3. Remove the Right Upper Cover. (p88)
4. Remove the Left Rear Cover. (p94)
5. Remove the Left Upper Cover. (p95)
6. Remove the Upper Cover. (p100)
7. Remove the After Heater. (p174)
8. Remove the 14 screws that secure the Platen Heater Assy.
A) Silver M3x30 screw with washer: 14 pcs

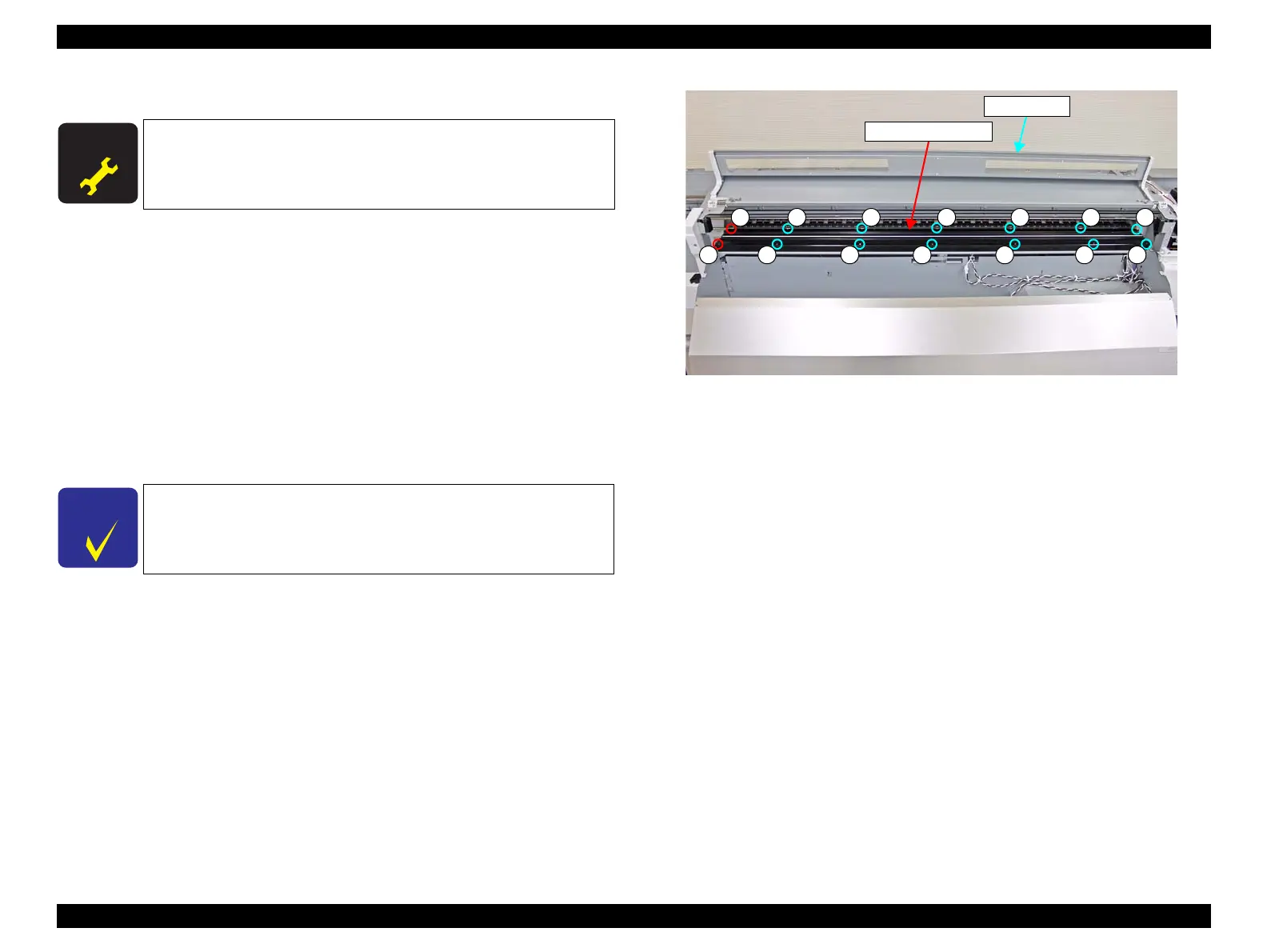

Figure 3-134. Platen Heater Assy Fixing Screws
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p200) and make sure to
perform the specified operations including required adjustment.
C H E C K
P O I N T
For the screws marked with a red circle in Figure3-134 , use a stubby
driver to remove them.
AA A A A A A
AAAAAAA
Platen Heater Assy
Front Cover
