Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 178
Confidential
3.4.8.3 Roll Paper Holder
1. Remove the C-ring (, and remove the Roll Paper Holder.

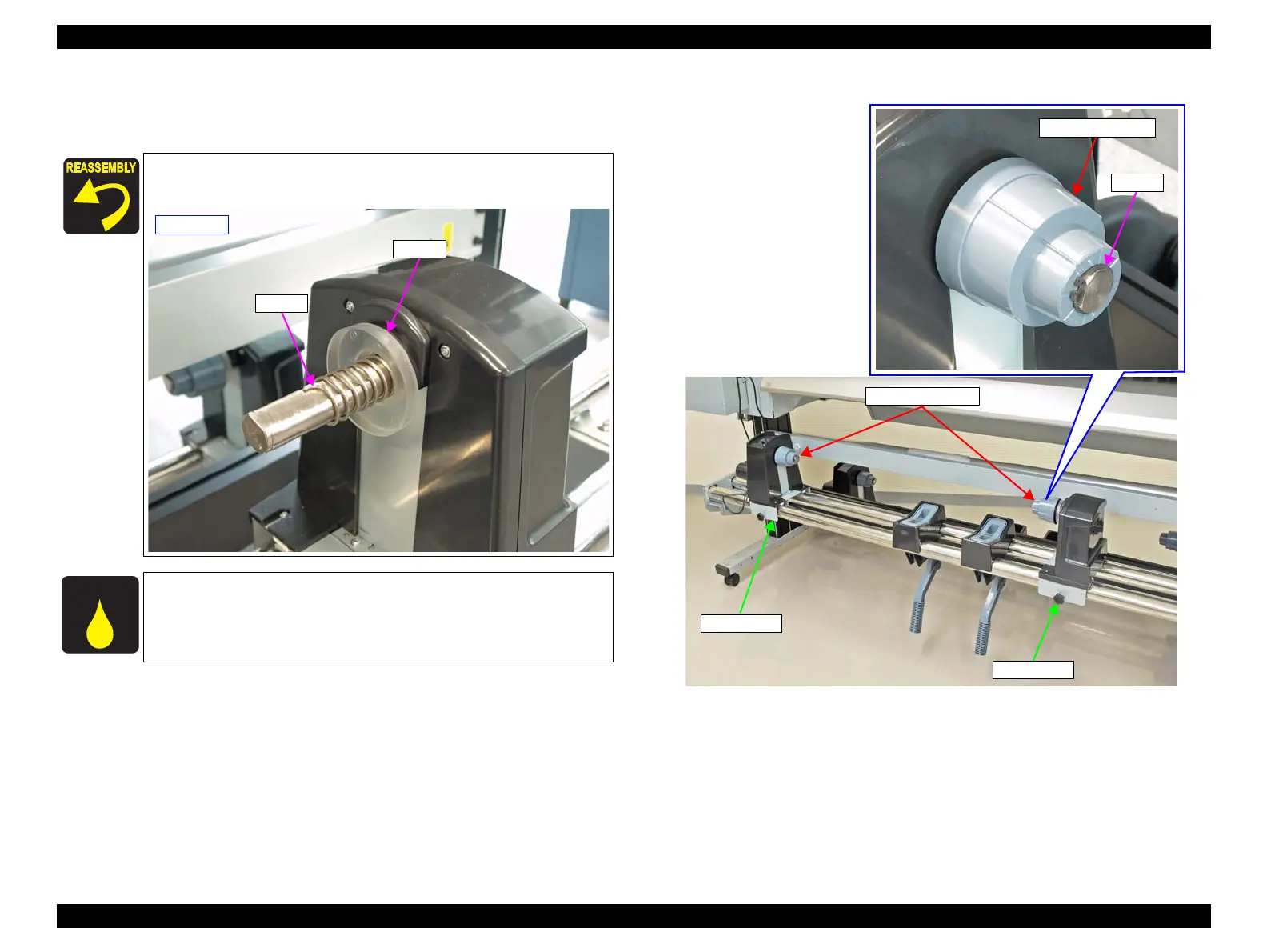

Figure 3-142. Removing the Roll Paper Holder
Before installing the Roll Paper Holder on the left, install the
holder and the spring as shown in the figure below.
LubricationLubrication
When replaced with a new part, make sure to lubricate the new one
referring to“5.6 Lubrication” (p288).
- Left side -
Spring
Holder
Roll Paper Holder
C-ring
Roll Paper Holder
L Roll Unit
R Roll Unit
