Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 180
Confidential
7. Disconnect all cables from the connectors on the Sub-F Board.
8. Remove the four screws, and remove the Sub-F Board.
C) Silver M3x8 S-tite screw: 4 pcs

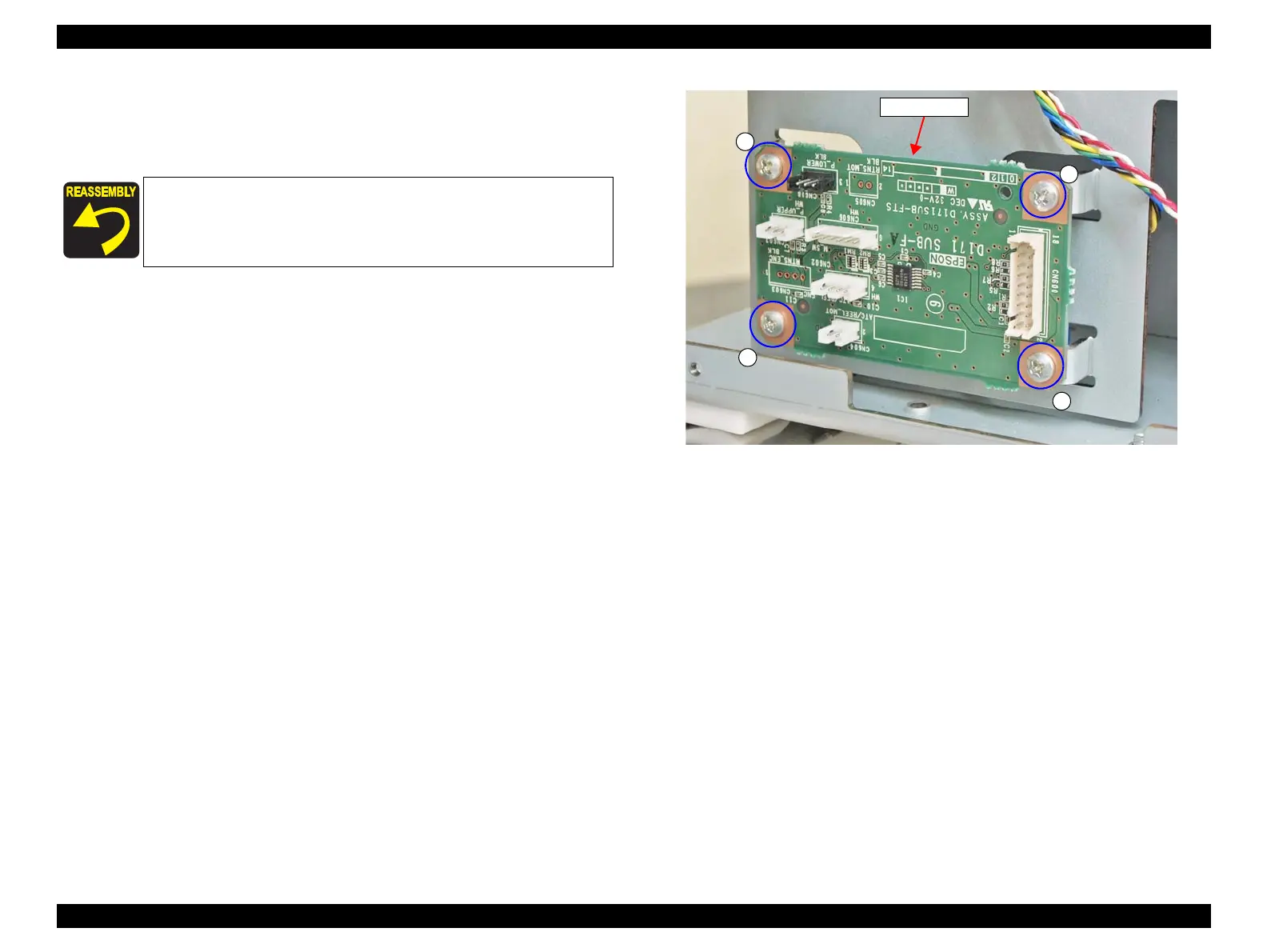

Figure 3-145. Removing the Sub-F Board
When installing the Sub-F Board, make sure to attach it in the
correct orientation as shown in Figure3-145.
C
C
C
C
Sub-F Board
