DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 194
Confidential
3.4.10.2 Drying Fan Cover
1. Remove the Drying Fan Unit. (p192)
2. Remove the 12 screws, and remove the Drying Fan Cover.
A) Silver M3x8 S-tite screw with built-in washer: 12 pcs

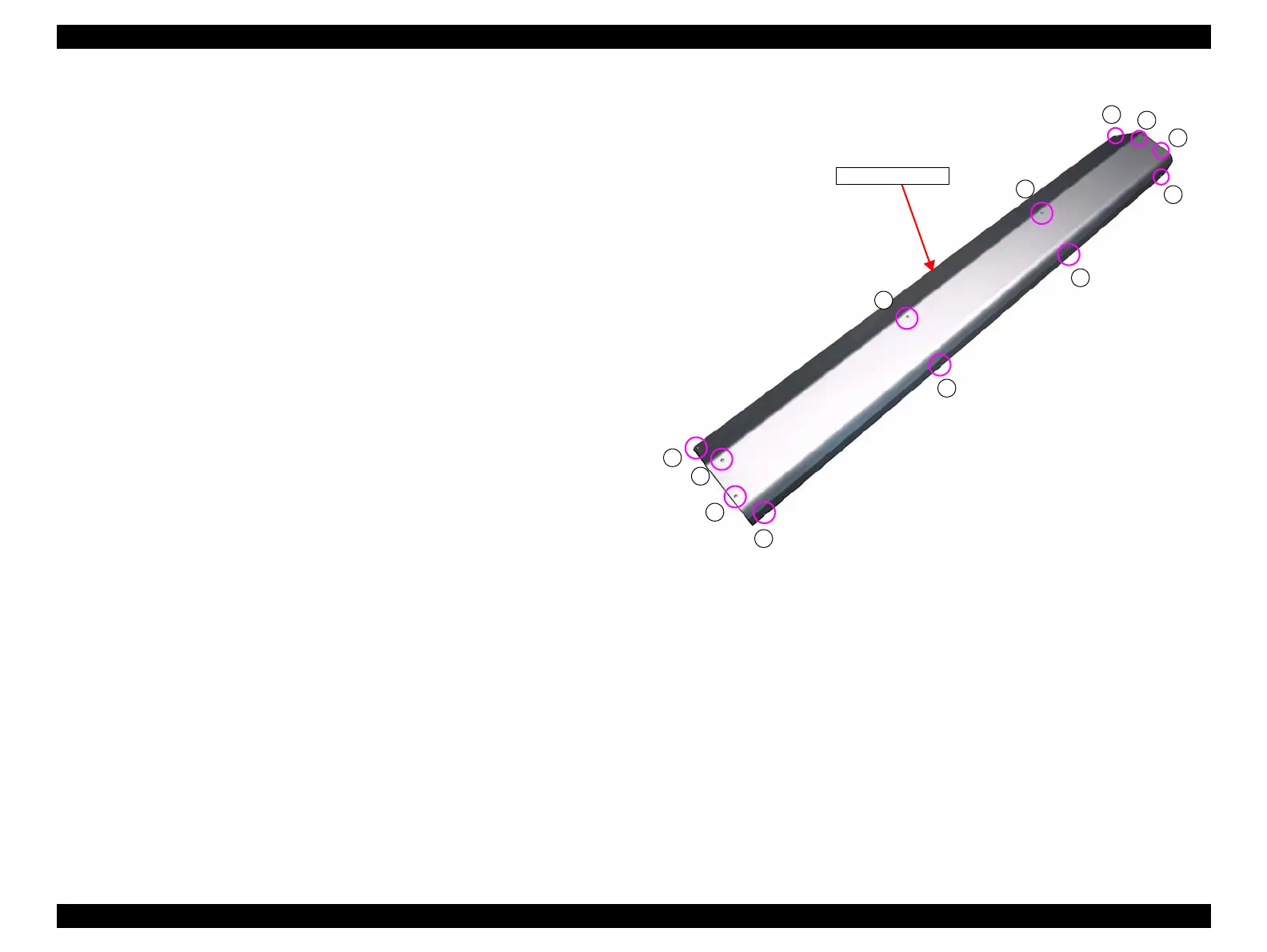

Figure 3-163. Removing the Drying Fan Cover
A
A
A
A
A
A
A
A
A
A
A
A
Drying Fan Cover
