3.4.10.3 Sub-I Board
1. Remove the Drying Fan Unit. (p192)
2. Remove the Drying Fan Cover. (p194)
3. Disconnect all cables from the connectors on the Sub-I Board.
4. Remove the four screws, and remove the Sub-I Board.
A) Silver M3x8 S-tite screw: 4 pcs

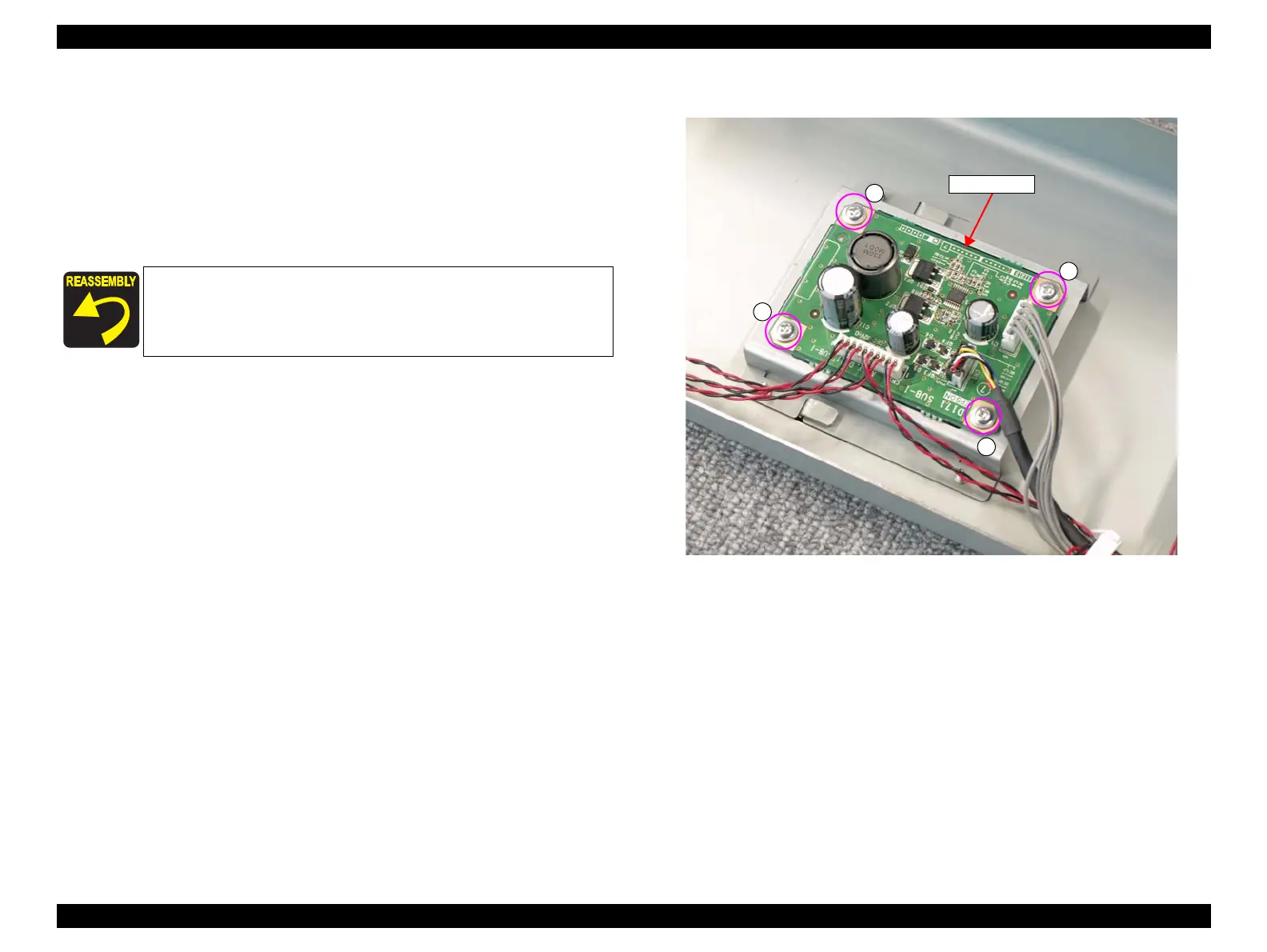

Figure 3-164. Removing the Sub-I Board
Make sure to install the SUB-I Board in the correct orientation
checking the connector position.
A
A
A
A
Sub-I Board
