Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 196
Confidential
3.4.10.4 Drying Fan Power Supply Board
1. Remove the Drying Fan Unit. (p192)
2. Remove the Drying Fan Cover. (p194)
3. Disconnect the relay connector.
4. Disconnect the cable from the connector (CN2) on the Power Supply Board.
5. Remove the four screws, and remove the Power Supply Board.
A) Silver M3x8 S-tite screw: 4 pcs

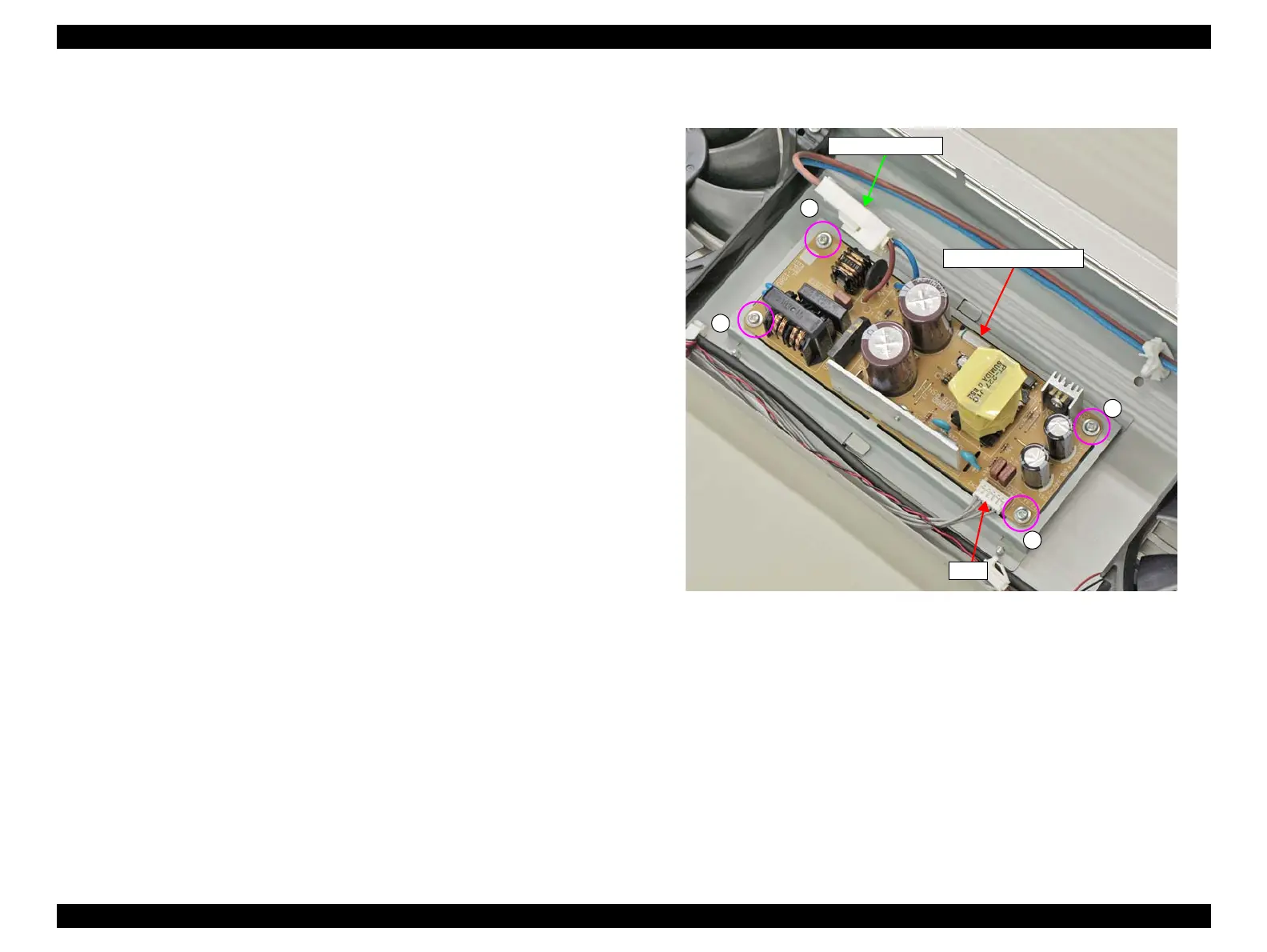

Figure 3-165. Removing the Power Supply Board
A
A
A
A
Power Supply Board
Relay Connector
CN2
