Epson SC-S30600 Series User Manual

SC-S30600 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 197
Confidential
3.4.10.5 Drying Fan
1. Remove the Drying Fan Unit. (p192)
2. Remove the Drying Fan Cover. (p194)
3. Disconnect the cables of the Drying Fan from the relay connector.
4. Release the cables from the clamp.
5. Remove the two screws, and remove the Drying Fan.
A) Silver M3x30 screw: 2 pcs

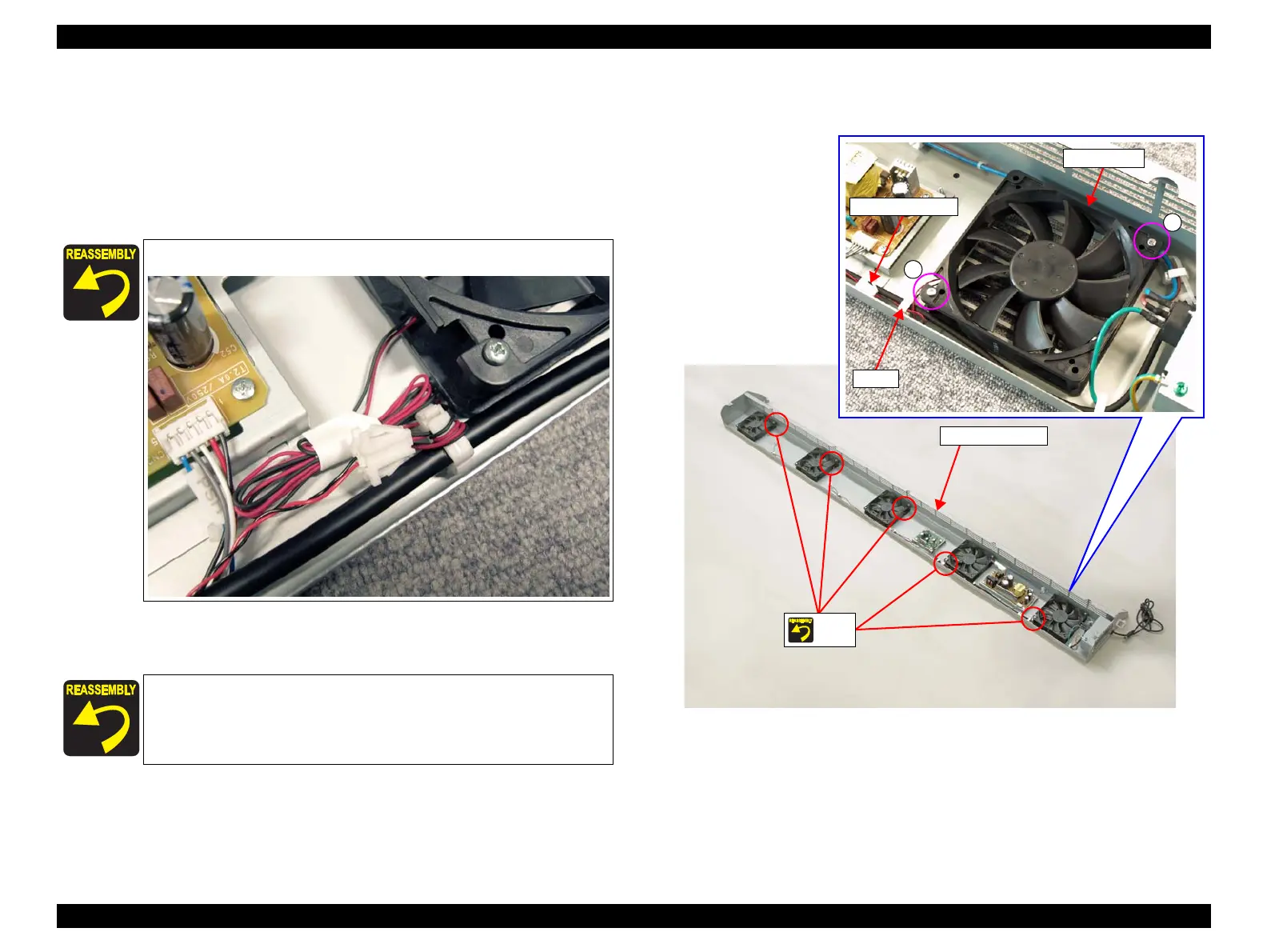

Figure 3-166. Removing the Drying Fan
Route the cables as shown below.
Make sure to install the Drying Fan in the correct orientation
checking the cable position.
A
A
Relay Connector
Drying Fan
Clamp
Drying Fan Unit
Cable
