TROUBLE SHOOTING Trouble on Paper Feeding 56
Confidential
3. Gently press the tensioner against the printer, and press the left and right
stoppers against the cases.
4. While pressing the stoppers against the cases, temporarily tighten the screws
that were loosened at step 2.
5. Using a torque screwdriver and at 1.96N, securely tighten the screws in the
order shown below.

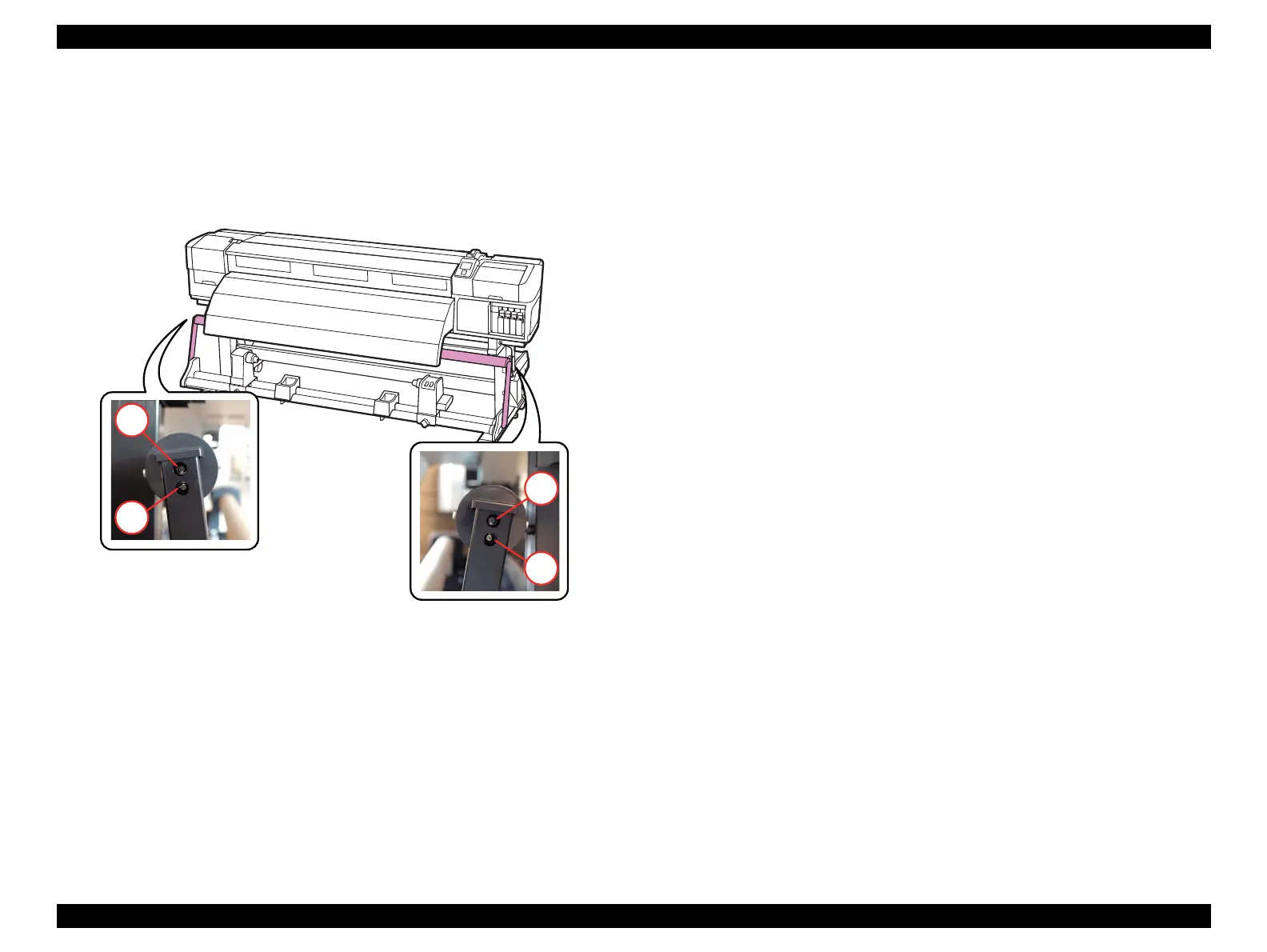

Figure 2-3. Screw Tightening Order
6. Tighten the screw that is loosened at step 1.
7. Check if the distortion is corrected. If not, repeat the correction procedure
again.
1
2
3
4
To Next Page
