EPSON Stylus C110/C120/D120 Revision B

DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 101

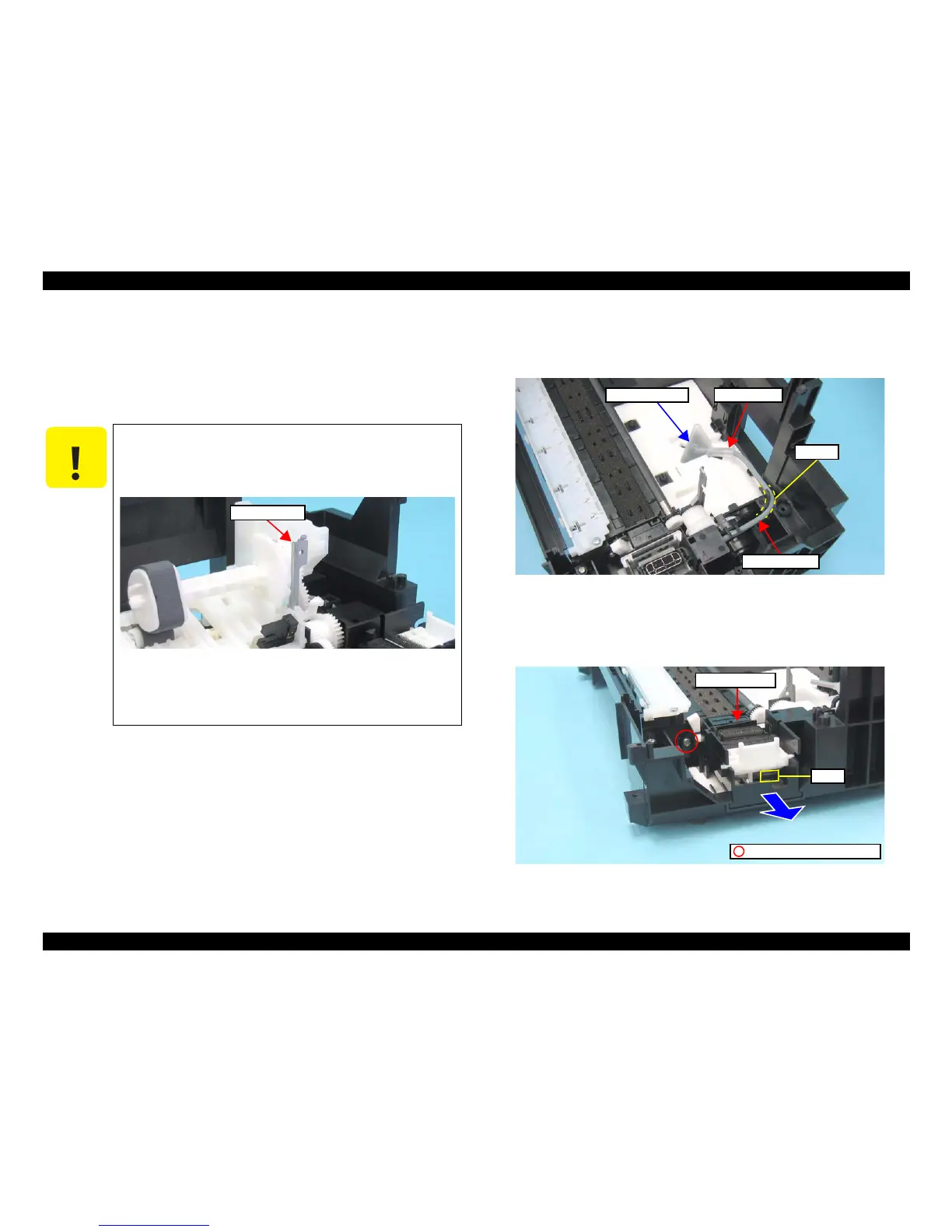

4.5.16 Ink System Unit

 Part/Unit that should be removed before removing Ink System Unit

Upper Housing/Lower Housing/Main Board Unit/Left Frame/Panel Unit/Front

Frame/Right Frame/CR Motor/CR Scale/Hopper/Main Frame Assy./ASF Unit

 Removal Procedure

1. Detach the Waste Ink Tube together with the Tube Stopper from the Waste Ink

Cover.

2. Detach the Waste Ink Tube from the groove of the Base Frame.

Figure 4-74. Detaching Waste Ink Tube

3. Remove the screw that secures the Ink System Unit (x1).

4. Slide the Ink System Unit in the direction of the arrow while releasing its hook

with flathead precision screwdriver, and remove the Ink System Unit.

Figure 4-75. Removing Ink System Unit

C A U T I O N

When disassembling/assembling the Ink System Unit, pay attention

to the following instructions.

 Be cautious not to get injured with the sharp metal edges of the

Frame Support.

Figure 4-73. Sharp Edges of Frame Support

 Do not touch or damage the Sealing Rubber or the Head

Cleaner.

 Mark the connection location before removing the Ink Tube.

Frame Support

Waste Ink Cover Tube Stopper

Waste Ink Tube

Groove

C.B.P. 3x6, F/Zn-3C (6±1kgfcm)

Hook

Ink System Unit
