EPSON Stylus C110/C120/D120 Revision B

DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 85

4.5.3 CR Scale

 Part/Unit that should be removed before removing CR Scale

Upper Housing

 Removal Procedure

1. Release the right end of the CR Scale from the hook.

2. Release the CR Scale through the slit of the CR Encoder Sensor.

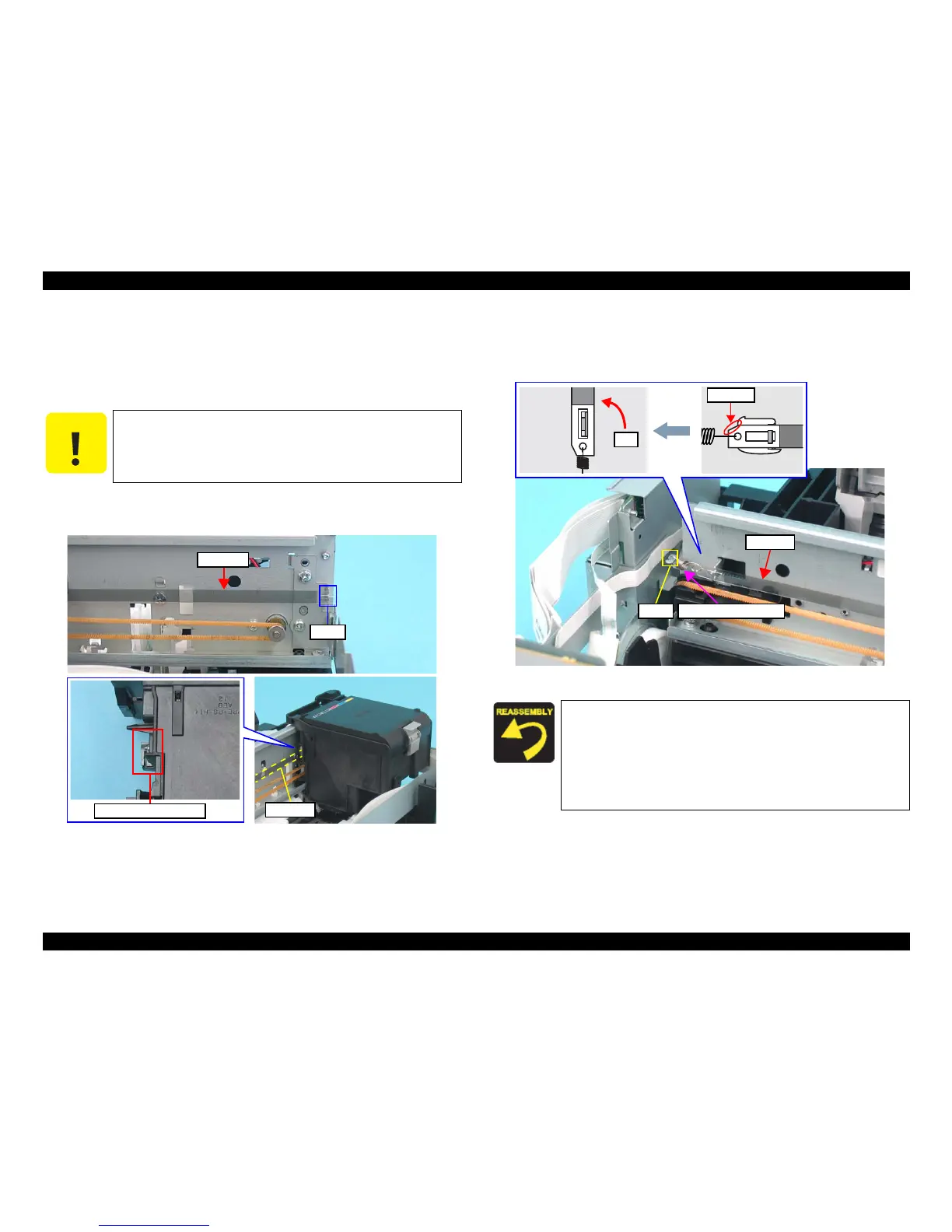

Figure 4-31. Removing CR Scale (1)

3. Release the Extension Spring 3.289 from the hook of the Main Frame.

4. Rotate the CR Scale 90 degrees as shown in the figure and remove the scale from

the Main Frame.

Figure 4-32. Removing CR Scale (2)

C A U T I O N

Pay attention to the following instructions:

 Do not touch the CR Scale with bare hands.

 Do not damage the CR Scale.

 Do not stretch Extension Spring 3.289 too much.

CR Scale

Hook

Slit of CR Encoder Sensor

When installing the CR Scale, pay attention to the following

instructions.

 Chipped part of the CR Scale must face upward.

 CR scale should be passed through the slit of the CR Encoder

Sensor.

 Make sure that the Extension Spring 3.289 is not be twisted,

and then attach its one end to the hook of the Main Frame.

Chipped

CR Scale

Hook Extension Spring 3.289
