EPSON Stylus C110/C120/D120 Revision B
DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 86
4.5.4 Hopper
 Part/Unit that should be removed before removing Hopper
Upper Housing/Lower Housing
 Removal Procedure
1. Release the dowel A of the Hopper.
2. Release the dowel B of the Hopper, and remove the Hopper together with the
Compression Spring 1.94.

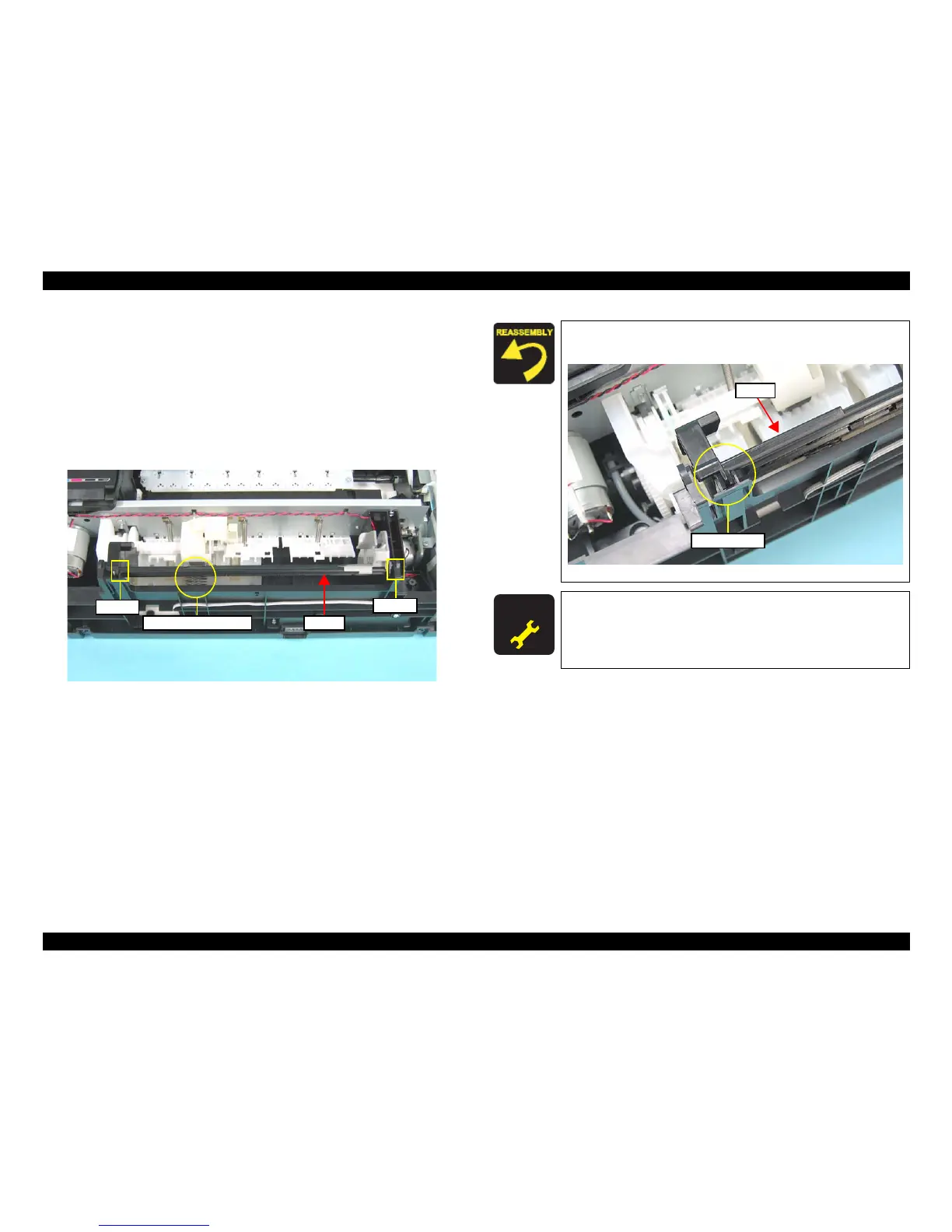

Figure 4-33. Removing Hopper
Dowel B
Dowel A
Hopper
Compression Spring1.94
When installing the Hopper, be sure to engage the rib of the
Hopper with the guide groove of the Base Frame.
Figure 4-34. Installing Hopper
A D J U S T M E N T
R E Q U I R E D
After removing/replacing the Hopper, be sure to perform the
specified adjustment. See
Chapter 5 “ ADJUSTMENT” (p.107)
Hopper
Rib and Groove
