EPSON Stylus C110/C120/D120 Revision B

DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 88

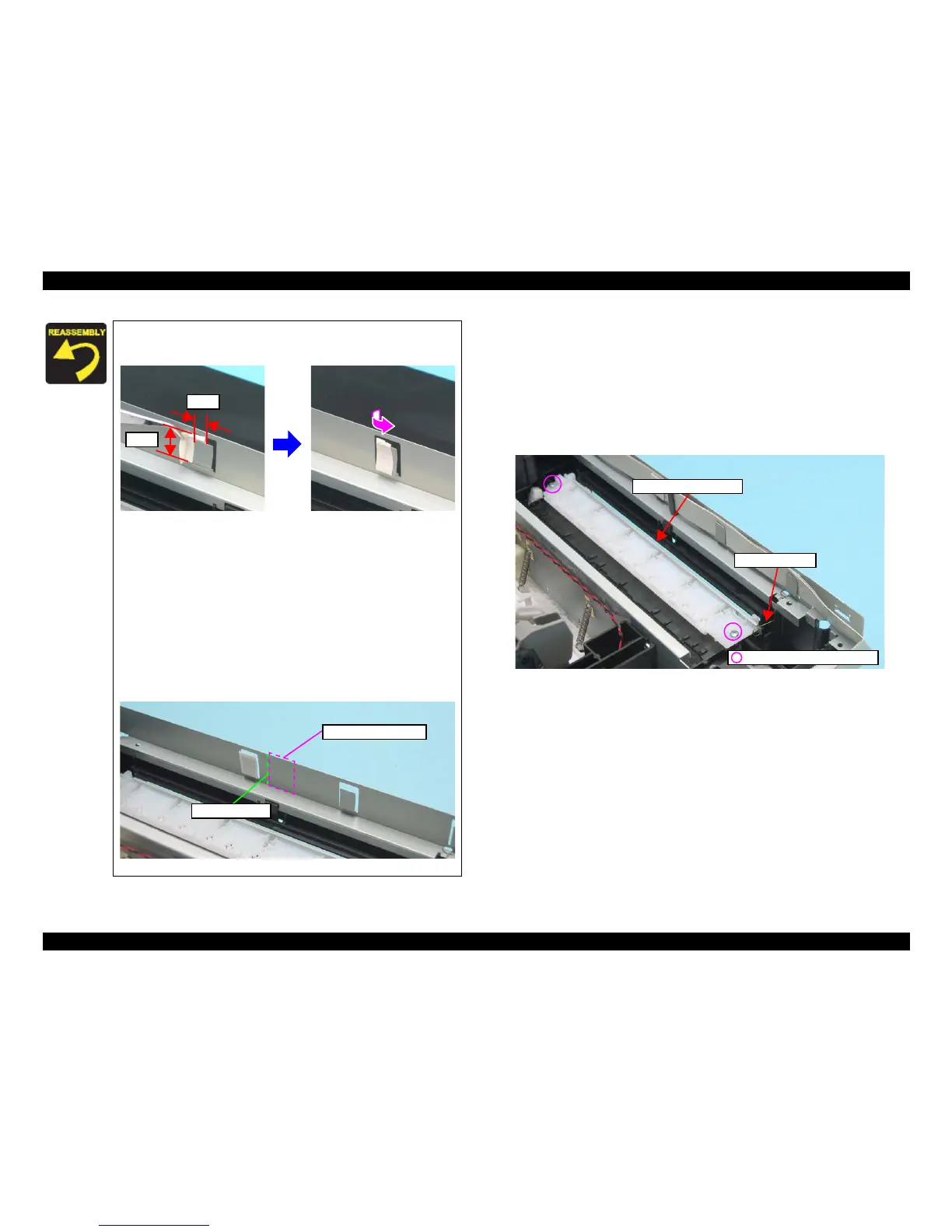

4.5.6 Star Wheel Holder Assy.

 Part/Unit that should be removed before removing Star Wheel Holder Assy.

Upper Housing/Lower Housing/Main Board Unit/Left Frame/Panel Unit

 Removal Procedure

1. Remove the Grounding Spring from the Star Wheel Holder Assy.

2. Remove the screws (x2) that secure the Star Wheel Holder Assy, and remove it.

Figure 4-40. Removing Star Wheel Holder Assy.

 After replacing the Front Frame, be sure to attach an acetate

tape referring to the figure below.

Figure 4-38. Acetate Tape Position



When installing the Front Frame, pay attention to the

following instructions.

• As shown in Figure 4-37, be sure to secure the Front Frame

with the hook (x1) and the cutouts (x2).

• As shown in Figure 4-36, secure the Front Frame and Right

Frame together with the screw. (Place the Right Frame on top

of the Front Frame.)



When attaching the ferrite core, align its edge with the

reference line marked on the Front Frame, then secure the core

with double-sided tape.

Figure 4-39. Attaching Ferrite Core

10mm

18mm

Reference Line

Ferrite core Position

C.B.P. 3x8, F/Zn-3C (6±1kgfcm)

Star Wheel Holder Assy.

Grounding Spring
