EPSON Stylus C110/C120/D120 Revision B

OPERATING PRINCIPLE Overview 21

2.1 Overview

This section describes the operating principles of the Printer Mechanism and Electrical

Circuit Boards of Stylus C110/C120/D120.

Stylus C110/C120/D120 employs a newly developed printer mechanism. The

following sections explain about the major components of the new printer mechanism.

2.1.1 Printer Mechanism

Stylus C110/C120/D120 printer mechanism consists of printhead, carriage mechanism,

paper loading mechanism, paper feed mechanism, and ink system.

As the conventional models, Stylus C110/C120/D120 is equipped with two DC

motors; one is used to drive the paper loading, paper feed mechanisms, and the pump

mechanism that includes the carriage lock mechanism, and another one is used to drive

the carriage mechanism. A paper is fed from the rear ASF unit by means of the LD

roller and Retard roller and ejected to the front tray.

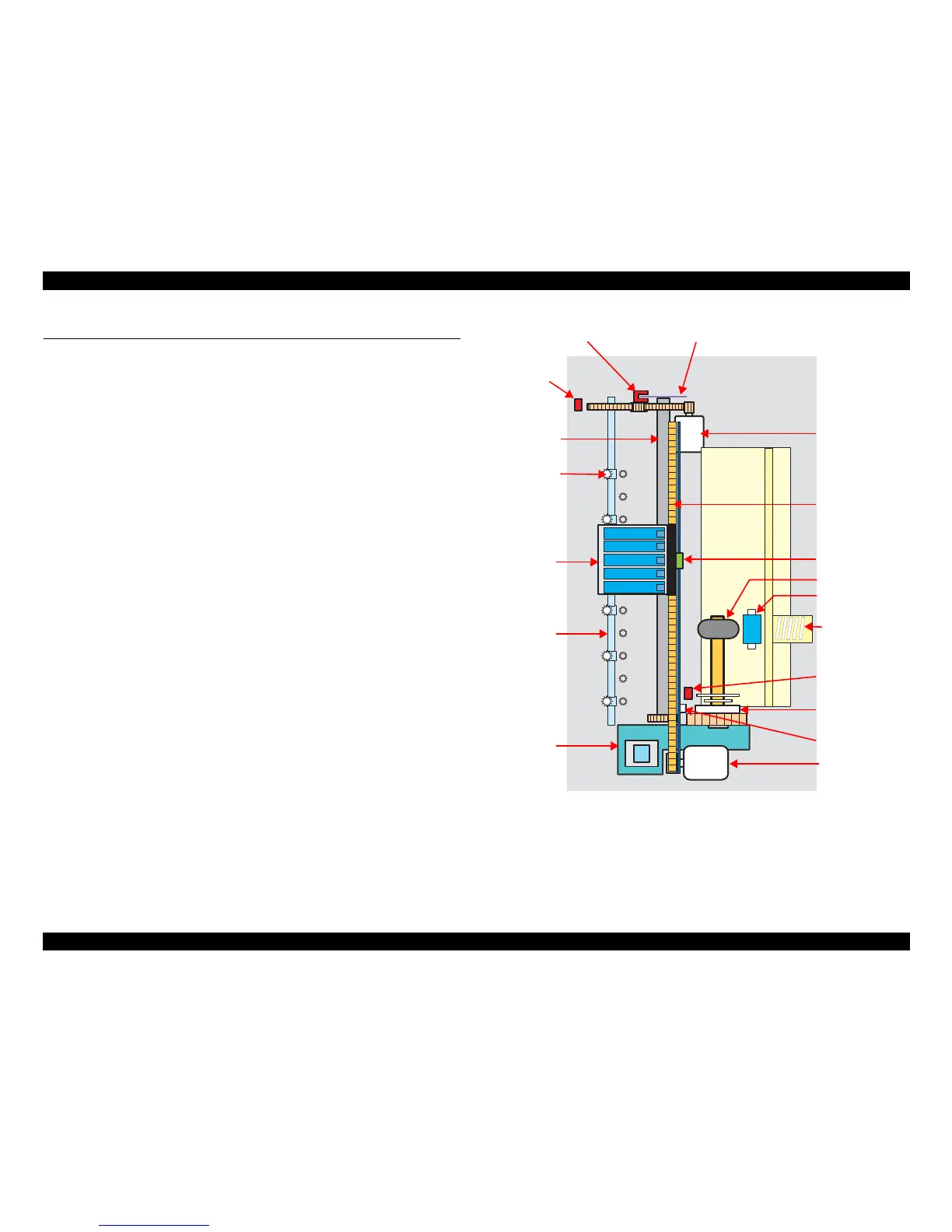

Figure 2-1. Printer Mechanism block diagram

Compression

Spring

LD Roller

Retard Roller

Clutch

Mechanism

PE Sensor

PF Motor

Ink System

Carriage

Unit

CR Encoder

Sensor

PF Roller

Timing Belt

EJ Roller

Star Wheel

Roller

PF ScalePF Encoder Sensor

CR Motor

Cover Open

Sensor

Change Lever
