EPSON Stylus C110/C120/D120 Revision B
OPERATING PRINCIPLE Printer Mechanism Operating Principles 32
2.2.4.3 Wiping Mechanism
The wiping mechanism is activated by the capping operation. The mechanism moves the wiper into- and out-of position for cleaning the head using the PF motor drive force that is
transmitted via the cam of the clutch-equipped combination gear.

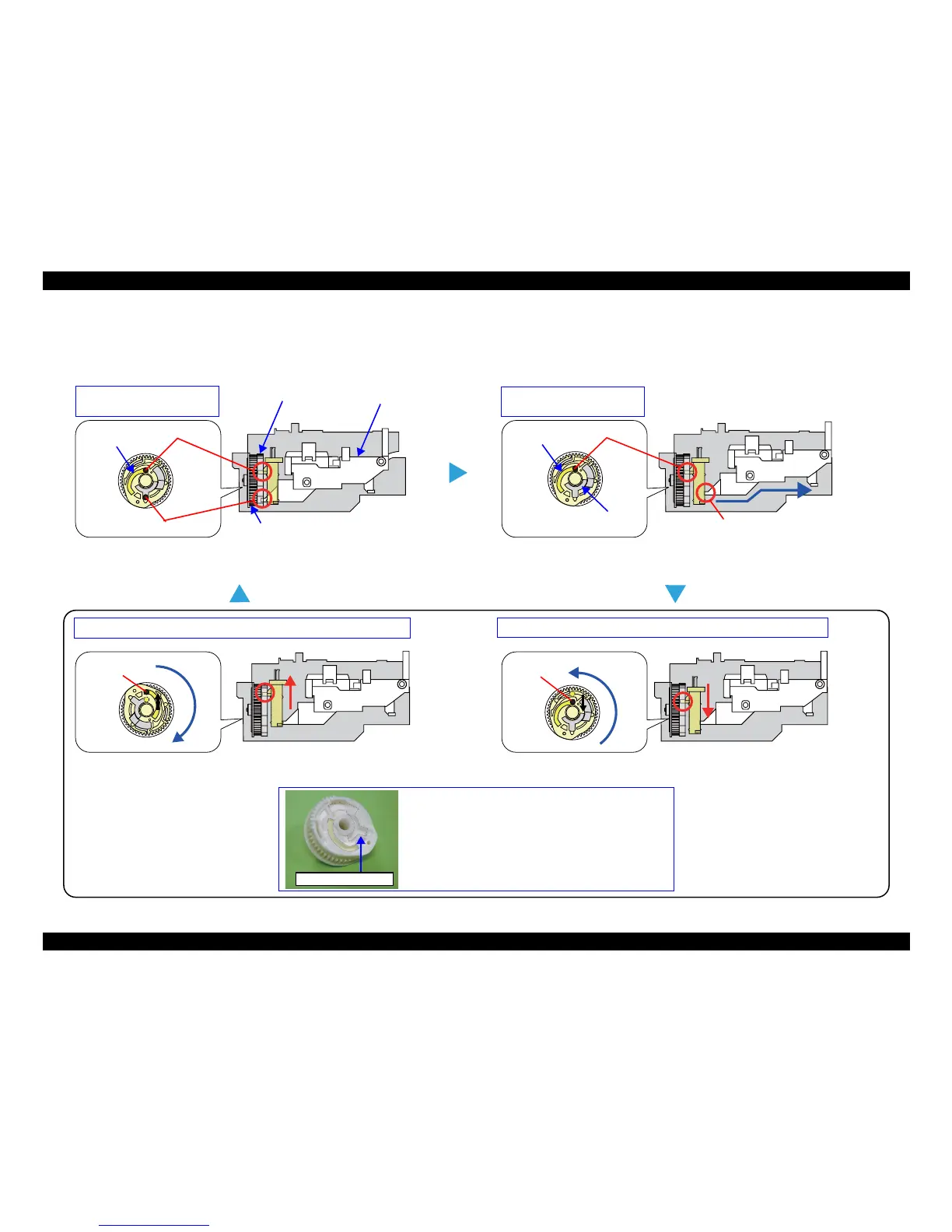

Figure 2-16. Wiping Mechanism
Non cleaning state
(clutch disengaged)
PF motor CW rotation: Moves the Wiper Upward
PF motor CCW rotation: Moves the Wiper Downward
Cap SliderCam
Clutch-equipped combination gear
Groove of
cam (1)
Wiper protrusion
Cap Slider protrusion
Groove of
cam (1)
Wiper protrusion
When the cap slider pops up, its protrusion is disengaged from the groove of cam (2).
Therefore, the clutch is engaged causing the cam to rotate together with the combination
gear.
The clockwise rotation of the PF motor rotates the cam in clockwise direction
to move the wiper upward to clean the head.
The counterclockwise rotation of the PF motor rotates the cam in counterclockwise
direction to move the wiper downward, which is out-of position for cleaning.
Groove (2) of the cam is designed so that the cap slider
protrusion cannot be set into the groove unless the wiper is
moved downward. This prevents the slider protrusion from
being engaged with the groove when the slider is moved
downward without the wiper moved downward.
Groove of
cam (2)
Cap Slider protrusion
Wiper
protrusion
Wiper
protrusion
In the non-cleaning state, the cap slider protrusion secures the cam and the clutch of
the combination gear is disengaged. Therefore, the PF motor drive force is not
transmitted to the cam.
Groove of
Groove of cam (2)
Cleaning state
(clutch engaged)

Epson Stylus C110 Specifications

Print Quality

maximum resolution	5760 X 1440 dpi
minimum ink droplet volume	3 pl

Print Speed

black text memo (A4)	Approx. 37 ppm (Draft) / 25 ppm (Default)
colour text memo (A4)	Approx. 20 ppm (Draft) / 11 ppm (Default)
photo (4R/4x6”)	Approx. 35 sec per photo (Draft W/Border)

Ink Cartridges

black ink cartridge (T0731H)	2 cartridges 740 pages
black ink cartridge (T0731)	2 cartridges 470 pages
magenta ink cartridge (T0733)	350 pages (Composite Yield)

Paper Handling

paper feed method	Friction Feed
paper hold capacity	120 sheets, A4 Plain paper
maximum paper thickness	0.33 mm

Electrical Specifications

rated voltage	AC 220-240V
rated frequency	50~60 Hz
power consumption	Approx. 15W (per ISO10561 Letter Pattern)

Weight and Dimensions

weight	3.9 kg
height	161 mm
width	240 mm
depth	435 mm
