EPSON Stylus C110/C120/D120 Revision B

TROUBLESHOOTING Troubleshooting 65

• White streak /

abnormal discharge

Ink is ejected to the Cap from the

Printhead, but printing is not done at all

after cleaning or ink change, or

abnormal discharge occurs.

Head FFC

1. Check if the Head FFC is securely connected to the

Printhead Connectors and the Main Board Connectors

(CN5, CN6, CN7).

1. Connect the Head FFC to the Printhead and the

Main Board Connectors.

2. Check if the Head FFC is not damaged. 2. Replace the Head FFC with a new one.

Printhead

1. Check if it returns to normal by performing CL operation

or replacing the Ink Cartridge.

1. Perform CL operation and the Ink Cartridge

replacement specified times. If it doesn’t work,

change the Printhead with a new one.

Main Board Unit 1. Check if the Main Board is not damaged. 1. Replace the Main Board Unit with a new one.

• White streak/

color unevenness

occurrence

Vertical banding appears against the CR

movement direction. And, it looks like

uneven printing.

[Note]

If the problem is not solved, replace the

CR Motor with a new one.

Adjustment

1. For printing in the Bi-D mode, check if Bi-D Adjustment

has been performed properly.

1. Perform Bi-D Adjustment to correct print start

position in bi-directional printing. (Refer to

Chapter 5 “ADJUSTMENT” (p.107).)

Printhead

1. Check if the Nozzle Check Pattern is printed properly. 2. Perform Head Cleaning and check the Nozzle

Check Pattern. (Refer to Chapter 5

“ADJUSTMENT” (p.107).)

If the problem is not solved, replace the

Printhead with a new one.

Main Frame

1. Check if there is any foreign material on the Carriage

path.

1. Remove foreign material from surface of the

Carriage path.

2. Check if the Main Frame is not deformed. 2. Replace the Main Frame with a new one.

3. Check if the grease is enough on the Carriage path of the

Main Frame.

3. After wiping the grease G-71 on the Carriage

path with a dry, soft cloth, coat it with grease.

(Refer to Chapter 6 “MAINTENANCE”

(p.116).)

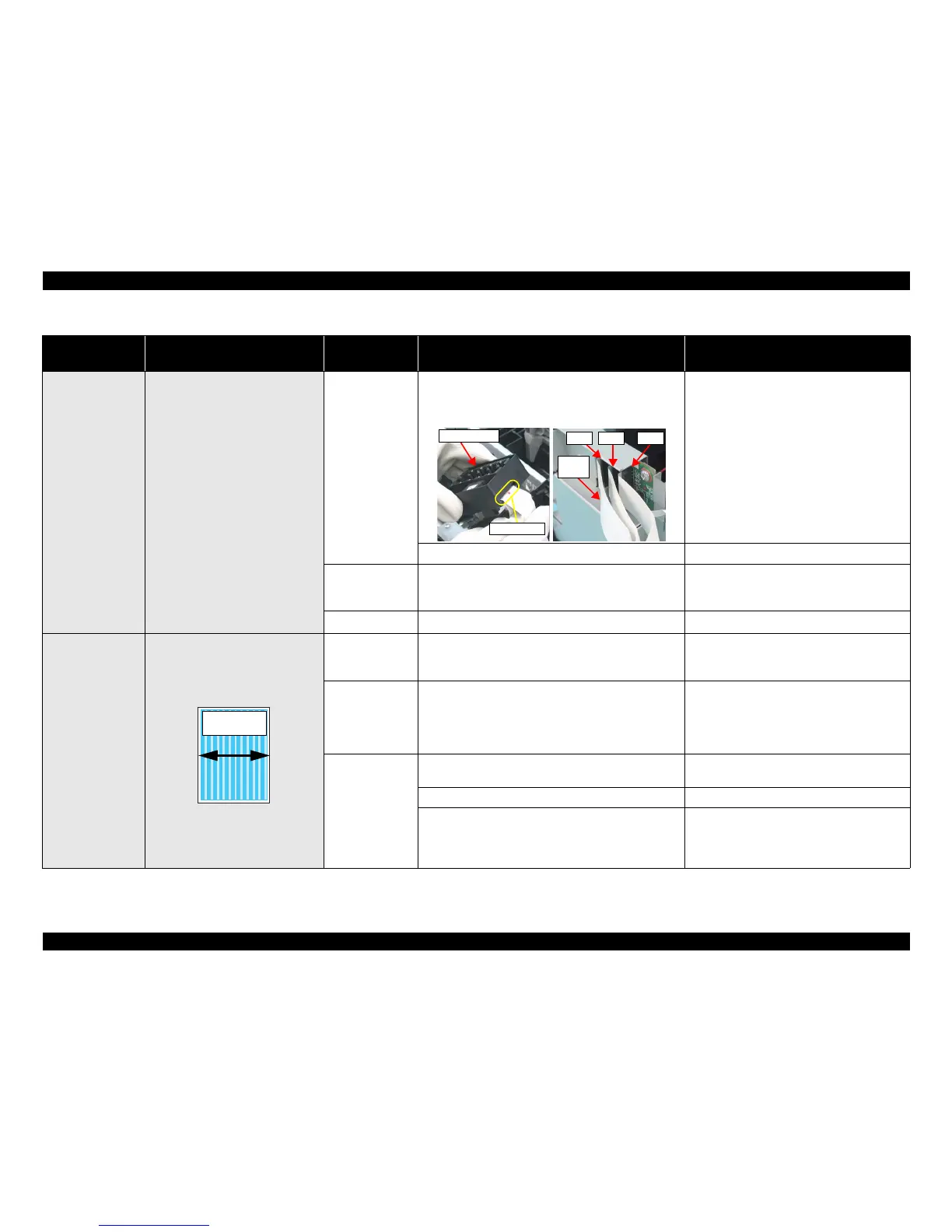

Table 3-14. Check point for the poor printing quality

Print Quality State Detailed phenomenon

Defective unit/

part name

Check point Remedy

Printhead

Connector

CN6

Head

FFC

CN7 CN5

CR movement

direction
