EPSON Stylus C110/C120/D120 Revision B
DISASSEMBLY/ASSEMBLY Removing Board 80
4. Remove the Light Guide Tube from the Panel Housing.

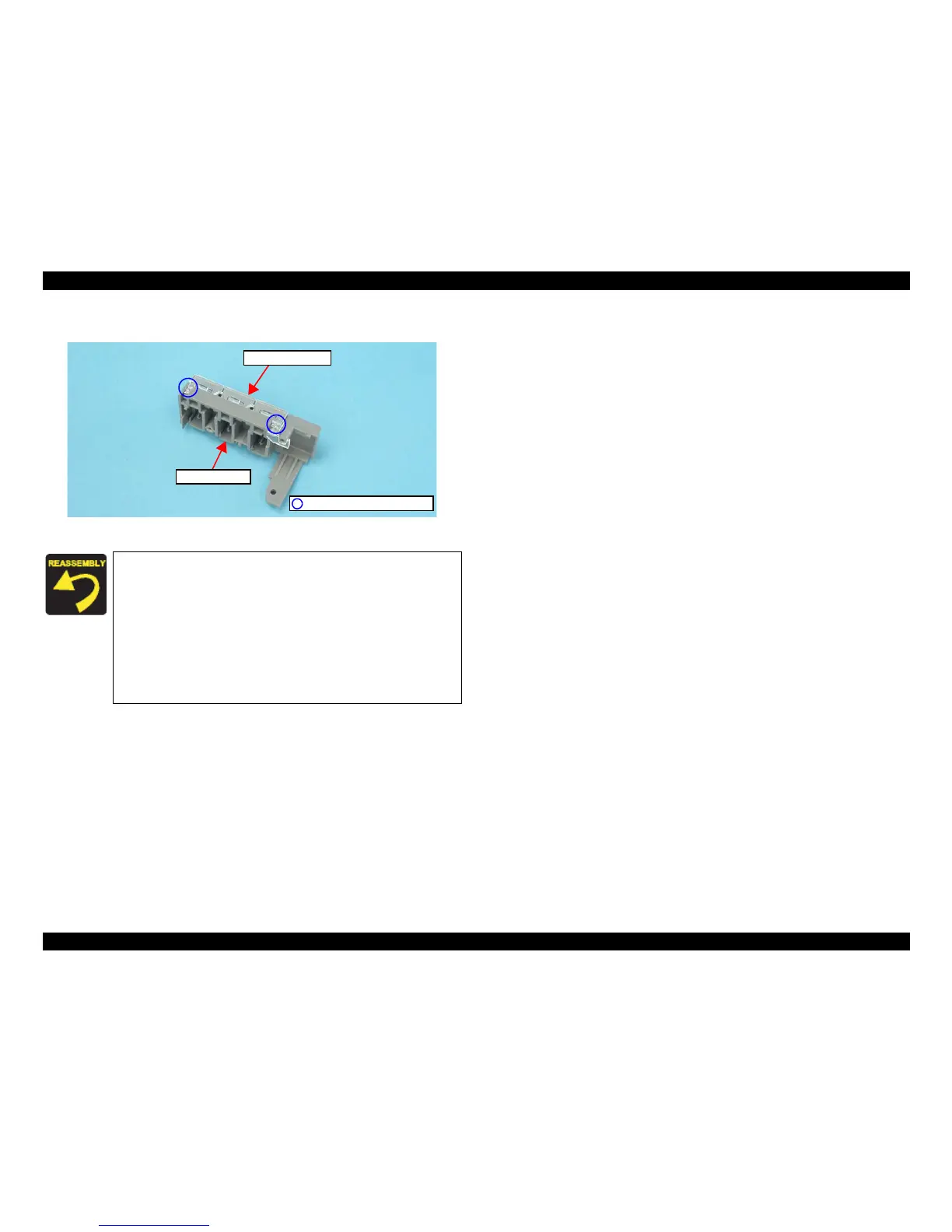

Figure 4-20. Removing Light Guide Tube
 Insert the guide pins (x2) of the Panel Housing into the
positioning holes (x2) of the Light Guide Tube as shown in
Figure 4-20.
 Insert the guide pins (x2) of the Panel Housing into the
positioning holes (x2) of the Main Board as shown in
Figure
4-19.
 When routing the Panel Unit FFC, tape the FFC to the Panel
Unit with a double-sided tape. Both edge of the Panel Unit
FFC must be aligned with the marking-off line as shown in
Figure 4-18.
Panel Housing
Light Guide Tube
Guide Pin and Positioning Hole
