Epson Stylus C110 User Manual

EPSON Stylus C110/C120/D120 Revision B

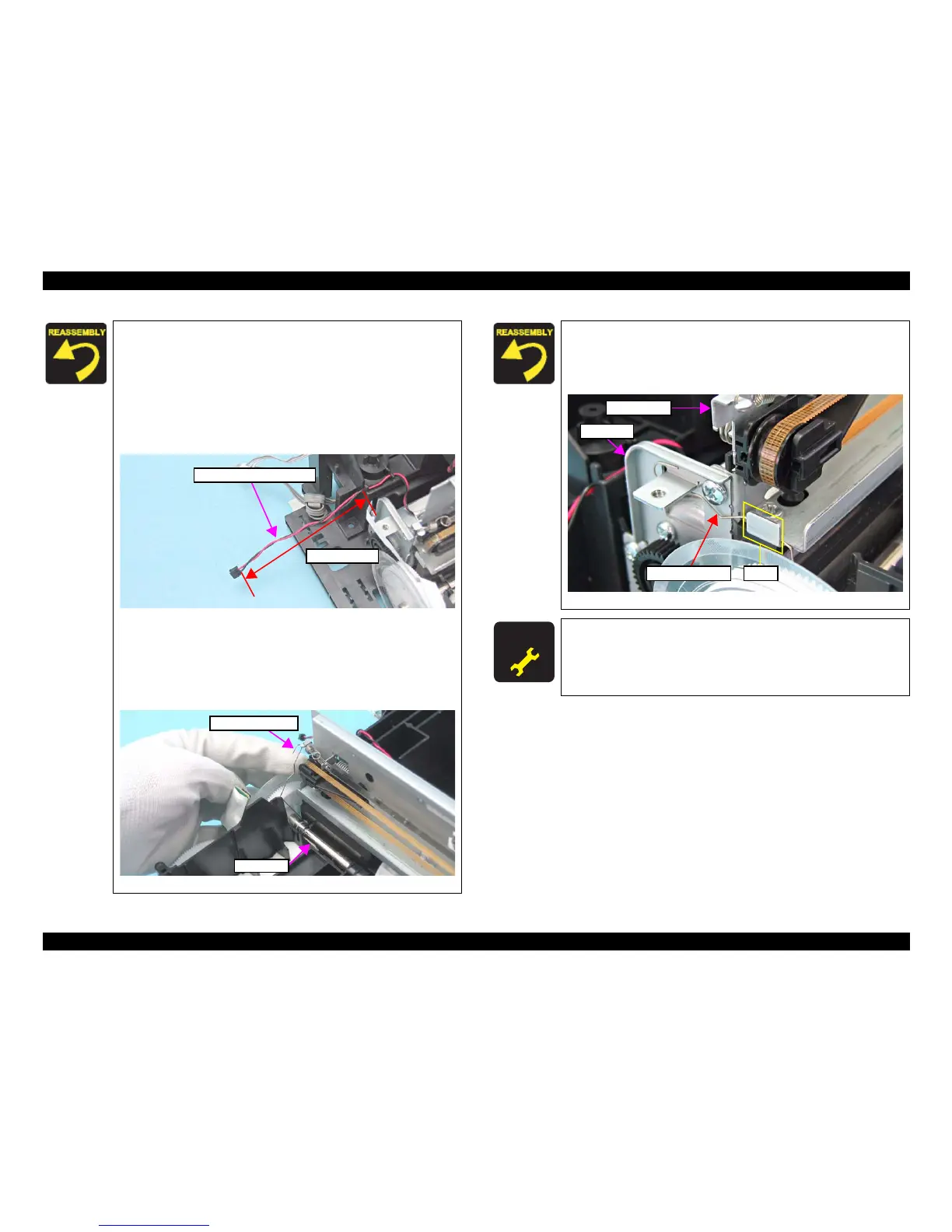

DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 92
 When installing the PF Motor, pay attention to the following
instructions.
• Do not damage the PF Scale.
• Insert the guide pins (x2) on the Base Frame into the
positioning holes (x2) of the PF Motor as shown in Figure
4-49.
• Route the PF Motor connector cable referring to the figure
below.
Figure 4-50. Routing PF Motor Connector Cable
 Tighten the screws in the order given in Figure 4-49.
 Follow the steps below to install the Grounding Spring.
1. Attach the larger U-shaped end of the Grounding Spring to
the PF Roller.
Figure 4-51. Attaching Grounding Spring (1)
PF Motor Connector Cable
71mm or more
Grounding Spring
PF Roller
2. Pass the Grounding Spring along the inner side of the hook of
the Main Frame.
3. Ground the smaller U-shaped end of the Grounding Spring
with the undersurface of the frame for PF Motor.
Figure 4-52. Installing Grounding Spring (2)
A D J U S T M E N T
R E Q U I R E D
After replacing the PF Motor, be sure to perform the specified
adjustment. See
Chapter 5 “ ADJUSTMENT” (p.107)
Main Frame
PF Motor
HookGrounding Spring

Epson Stylus C110 Specifications

Print Quality

maximum resolution	5760 X 1440 dpi
minimum ink droplet volume	3 pl

Print Speed

black text memo (A4)	Approx. 37 ppm (Draft) / 25 ppm (Default)
colour text memo (A4)	Approx. 20 ppm (Draft) / 11 ppm (Default)
photo (4R/4x6”)	Approx. 35 sec per photo (Draft W/Border)

Ink Cartridges

black ink cartridge (T0731H)	2 cartridges 740 pages
black ink cartridge (T0731)	2 cartridges 470 pages
magenta ink cartridge (T0733)	350 pages (Composite Yield)

Paper Handling

paper feed method	Friction Feed
paper hold capacity	120 sheets, A4 Plain paper
maximum paper thickness	0.33 mm

Electrical Specifications

rated voltage	AC 220-240V
rated frequency	50~60 Hz
power consumption	Approx. 15W (per ISO10561 Letter Pattern)

Weight and Dimensions

weight	3.9 kg
height	161 mm
width	240 mm
depth	435 mm
